FDB7000
Terex® Advance FDB7000 is part of a comprehensive lineup of Commander Series front discharge concrete mixer trucks.
PRODUCT
FDB6000
Commander Series
Specifications |
|
|---|---|
|
208 in Wheel Base |
|
11 yd Drum |
|
|
MTU Series 1300 / Cummins ISX12 |

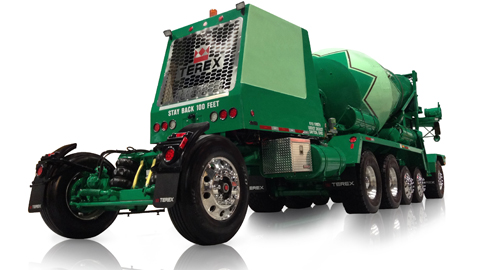

The ADVANCE® six-axle FDB6000 front-discharge mixer truck boasts a 425-hp, 1550 ft.-lb. torque Cummins ISX11.9 EPA 2010 engine, which uses Selective Catalytic Reduction technology to treat post-diesel particulate filter exhaust. A new electronic control module located on the engine automatically senses whether or not the truck is carrying a load of concrete.
The front fender and bumpers of the ADVANCE® FDB6000 mixer truck feature a friction coating to better resist rock chips for increased component longevity. Two wide “grip” steps are incorporated into the roadside front fender to safely provide direct access to the cab. A third hanging flexible step and staircase type railing provide easy three-point cab entry for the driver.
Other features include a sealed compartment for more sensitive electronics including the hose heat fuse, hydraulic tag fuse, and engine power.
Contact us for more information on this concrete mixer truck.
Additional Specifications:
5f4efd2a-f20f-4dd0-b35a-9675874cb801.png?sfvrsn=73b26b00_1)
- Axles - 6 | Front Axle - Marmon-Herrington MT22 / Meritor MX23160 | Rear Axles - Meritor Primaxx RT-46-160 / Meritor RT-46-160 / Dana Primaxx D46-170HP
70169a46-d191-4444-9d14-0d3aba0b9113.png?sfvrsn=4df79955_1){kind=spacer}
- Transmission - Allison 4500 RDS - Wide Ratio - 6 Speed Automatic
Downloads
Image and Video Gallery
Related Products
-
![]()
-
![]()
FDB5000
Terex® Advance FDB5000 is part of a comprehensive lineup of Commander Series front discharge concrete mixer trucks.
-
![]()
FDB4000
The Terex® Advance FDB4000 4 axle front discharge mixer truck incorporates front and rear tandem drive axles with disc brakes for improved braking performance and lower long-term operating costs.
-
![]()
FD6000 "Michigan Stretch"
Terex® Advance FD6000 "Michigan Stretch" features a long 230-in. wheelbase and barrel paddles inside the 11 cu. yd. (8.4 cu m) mixer drum's rear to minimize concrete clumping. This improves mix consistency and ...
-
![]()
FD5000 "Great Lakes"
The FD5000 "Great Lakes" Mixer Truck has a five-axle wheelbase, the longer wheelbase is intended to improve weight distribution to help the truck to scale out easier when fully loaded, and improve ride quality.
-
![]()
FD4000
Terex® Advance FD4000 front discharge mixer truck incorporates front and rear tandem drive axles with disc brakes for improved braking performance and lower long-term operating costs.
-
![]()
FD3000
Terex® Advance FD3000 is part of a comprehensive lineup of Commander Series front discharge concrete mixer trucks.
| Specification | Value |
|---|---|
| Wheel Base | 208 in Wheel Base |
| Drum Configuration | 11 yd Drum |
| Engine | MTU Series 1300 / Cummins ISX12 |
