MT-1

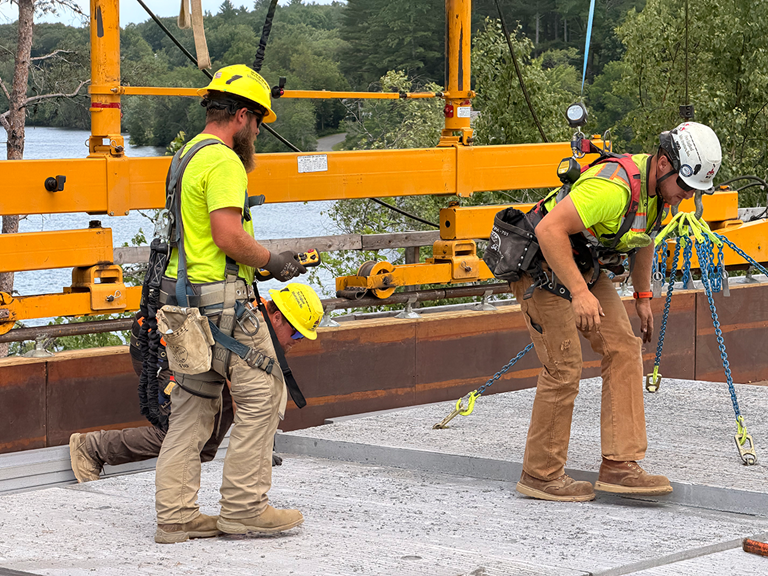

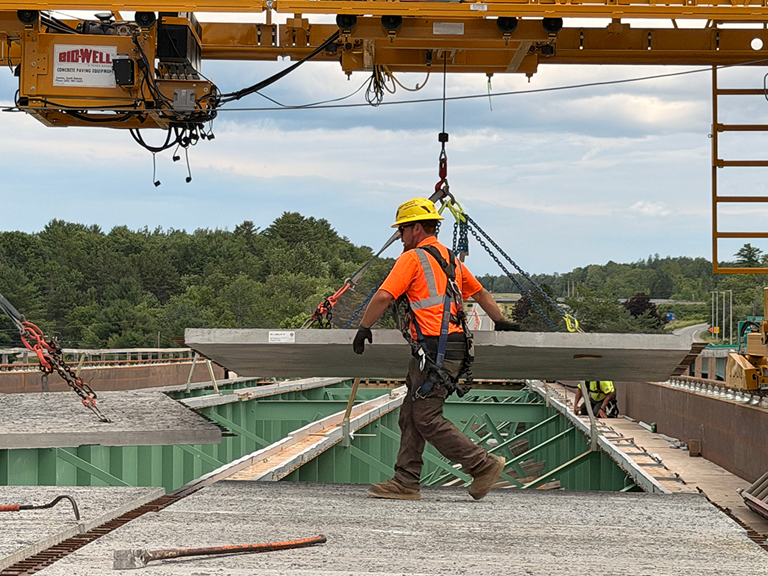

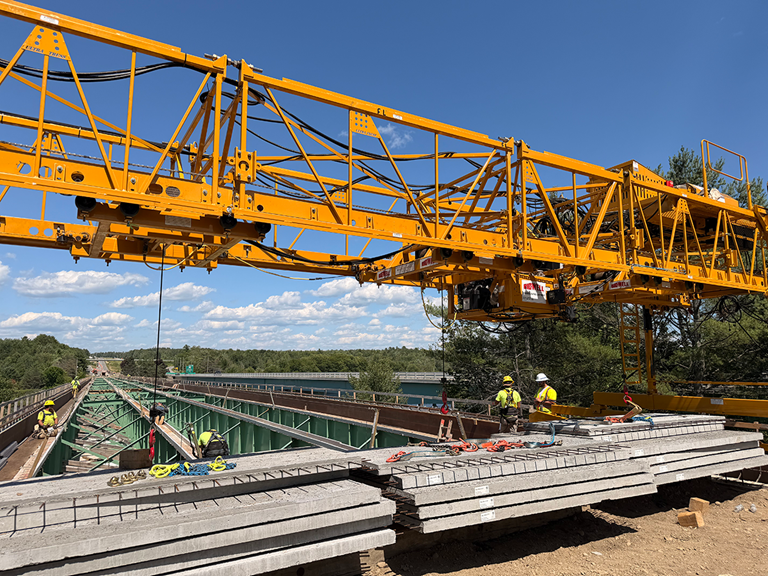

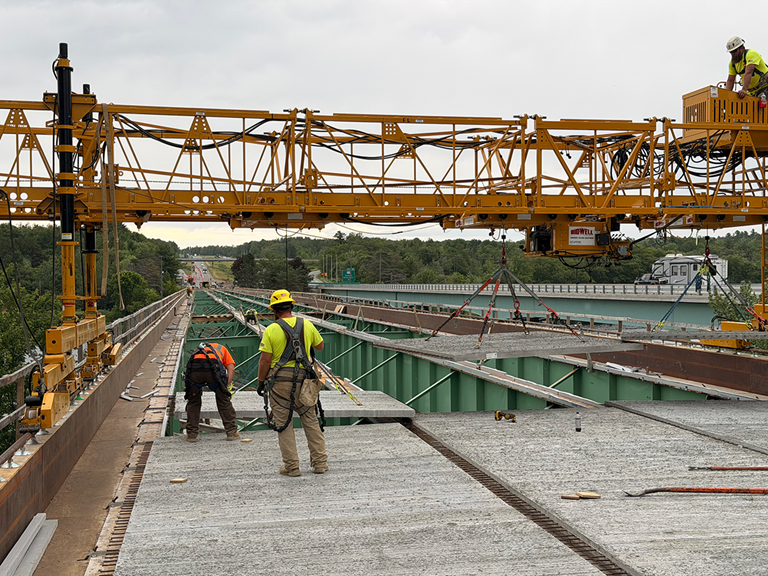

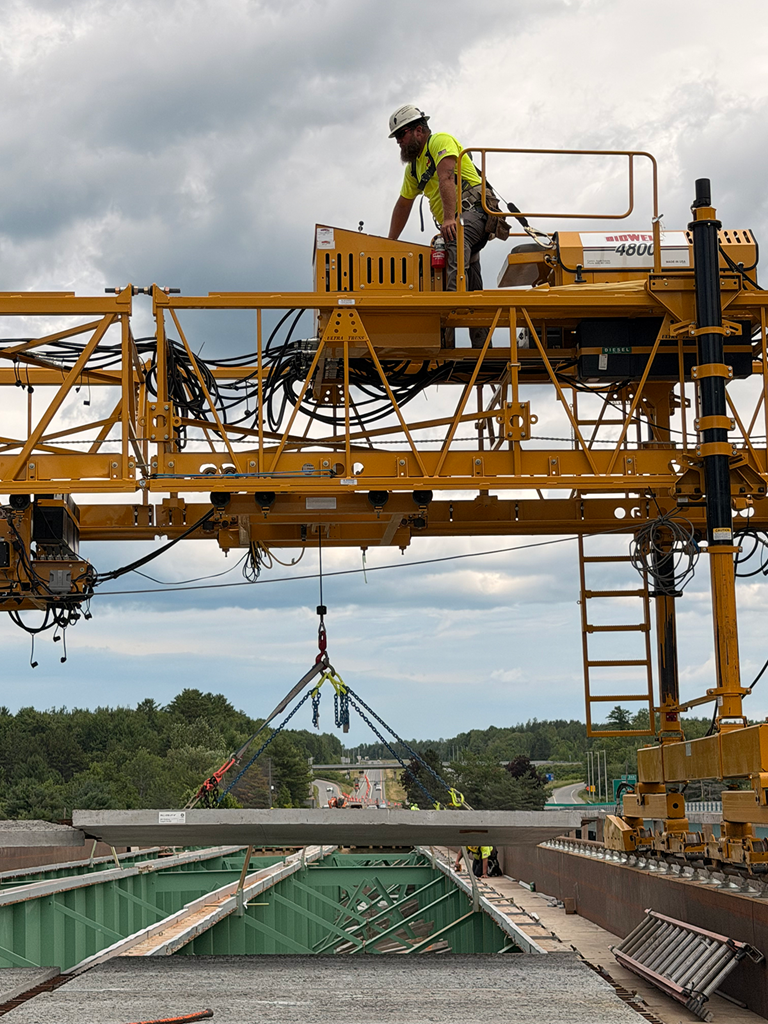

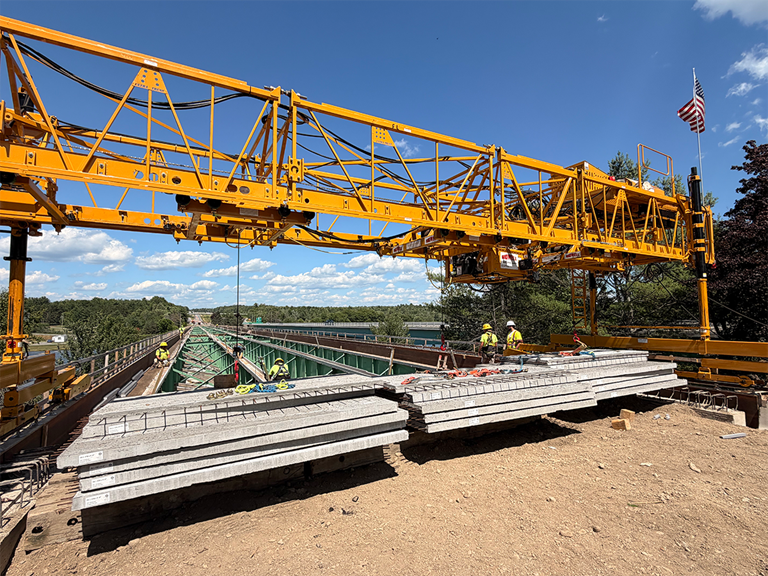

The Bid-Well MT-1 is designed to work seamlessly with Bid-Well bridge pavers, providing a safe and efficient solution for moving materials throughout the bridge construction process. Engineered to transport concrete slabs, rebar, forms, deck pans and other essential materials directly to where they are needed on the structure, the MT-1 helps keep projects moving while reducing handling challenges.



By eliminating many of the concerns associated with working at height and simplifying complex lifts, the MT-1 enables operators to position materials quickly, safely and accurately across the bridge deck. With a carrying capacity beginning at 7.5 tons (15,000 lbs.) across three contiguous trolleys and configurable lifting heights ranging from 20 ft. to 100 ft. (6.1 m to 30.4 m), the MT-1 delivers the flexibility and performance required to support a wide range of bridge construction applications.

Technical Documentation

Measurements

Lifting Capacity 15,000 lbs 6,803 kgs
Standard Machine Length 60 ft 18 m
Lifting Speed 21 ft/min 6 m/min
