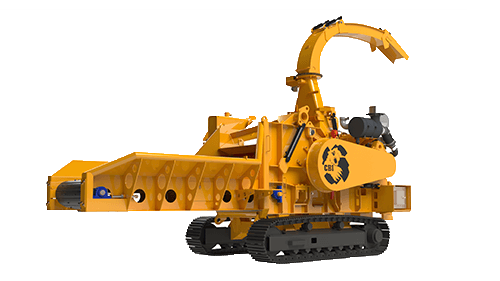

484VT
The 484VT Commercial Wood Chipper is powered by a 765hp engine for maximum production. Tracked configuration allows for easy maneuverability on site and optimal loading efficiency. The rotating discharge chute ...
484VR
Industrial Wood Chipper
CBI’s 484VR Truck Mounted (or trailer mounted) chipper is ideal for operators who want maximum production and simplified transport. The truck mounted chipper eliminates the need for a trailer and allows users to drive right up to piles in confined spaces. Two rotor options available to produce premium fuel chips from 12mm – 25mm or consistent micro-chips from 2mm – 12mm from logs up to 24” in diameter.
| Specification | Value |
|---|---|
| Rotor Size | Width: 48" Diameter: 40" / Width: 1.21m Diameter: 1.01m |
| Engine | CAT C18; 765hp / CAT C18; 570kW |
| Weight | 42,500lbs - 48,000lbs / 19,277kg - 21,772kg |
| Infeed Dimensions | Width: 48" / Width: 1.21m |
| Transport Dimensions | Width: 8'4" Length: 25' 10" Height: 9'5" / Width: 2.5m Length: 7.88m Height: 2.88m |
- Larger gear pump to increase feed roll up and down speed
- Scania DC16 770hp T4 Final, includes engine cover
- Metal Detection System (MDS)
- 4-Knife microchip drum rotor
- CAT C18 765hp T2 engine
- CE compliance package
- Lighting package
- Chassis/Trailer
