Cedarapids^® Static Cone Crushers

TC1000_thumbnail

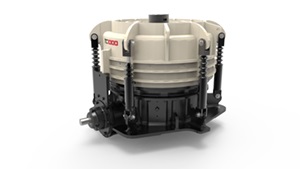

TC1000

Capacity 75-240 tph / 70-200 mtph

CSS Range 5/8 " to 1-1/2" / 16-36 mm

Head Diameter 40 1000

Motor Size 230 hp 170 kW

Weight 40 lbs 1000 kg

TC1150_thumbnail

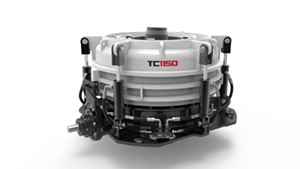

TC1150

Capacity 165-320 tph / 150-290 mtph

CSS Range 5/8" to 1-9/16" / 16-40 mm

Head Diameter 45 1150

Motor Size 300 hp 225 kW

Weight 31360 lbs 14000 kg

TG120_1_thumbnail

TG120

CSS Range 1/4" to 1-1/8" / 6-29 mm

Max Capacity 121-143 tph / 110-130 mtph

Max Feed Size 5 Inches 125 mm

Motor Size 120 hp 90 kW

Weight 12125 lbs 5500 kg

TGS120_1_thumbnail

TGS120

CSS Range 3/8" to 1-3/8" | 9-35 mm

Max Capacity 146-158 tph / 132-143 mtph

Max Feed Size 7.5 Inches 190 mm

Motor Size 120 hp 90 kW

Weight 15102 lbs 6850 kg

TC1300X Cone Crusher Cedarapids

TC1300X

Capacity 325 - 375 tph / 295 - 340 mtph

CSS Range 2 Inches 50 mm

Head Diameter 52 1300

Motor Size 400 hp 300 kW

Weight 39917 lbs 18106 kg

TG220_1_thumbnail

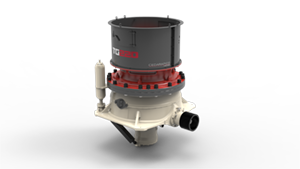

TG220

CSS Range 1/4" to 1-1/4" / 6-32 mm

Max Capacity 215-237 tph / 195-215 mtph

Max Feed Size 6.5 Inches 165 mm

Motor Size 215 hp 160 kW

Weight 20944 lbs 9500 kg

TGS220_1_thumbnail

TGS220

CSS Range 3/4" to 1-3/8" | 19-35 mm

Max Capacity 358-379 tph / 325-344 mtph

Max Feed Size 10.81 Inches 275 mm

Motor Size 215 hp 160 kW

Weight 26676 lbs 12100 kg

TG320_1_thumbnail

TG320

CSS Range 5/16" to 1-1/2" / 8-38 mm

Max Capacity 419-452 tph / 380-410 mtph

Max Feed Size 7.5 Inches 190 mm

Motor Size 335 hp 250 kW

Weight 33069 lbs 15000 kg

TGS320_1_thumbnail

TGS320

CSS Range 1-1/8" to 1-7/8" | 29-48 mm

Max Capacity 634-662 tph / 575-601 mtph

Max Feed Size 1'1" / 330 mm

Motor Size 335 hp 250 kW

Weight 42990 lbs 19500 kg

MVP380X_thumbnail

MVP380X

Capacity 170-560 tph / 155-507 mtph

CSS Range 3/8" to 2" |10-51 mm

Head Diameter 48 1219

Motor Size 300 hp 225 kW

Weight 46000 lbs 20800 kg

TG420_1_thumbnail

TG420

CSS Range 1/2" to 1-3/4" / 13-44 mm

Max Capacity 705-750 tph / 640-680 mtph

Max Feed Size 9.44 Inches 240 mm

Motor Size 400 hp 315 kW

Weight 55556 lbs 25200 kg

TGS420_1_thumbnail

TGS420

CSS Range 1-1/2" to 2-3/4" | 38-70 mm

Max Capacity 1102-1157 tph / 1000-1050 mtph

Max Feed Size 1' 3-3/16" | 385 mm

Motor Size 422 hp 315 kW

Weight 80469 lbs 36500 kg

MVPX_thumbnail

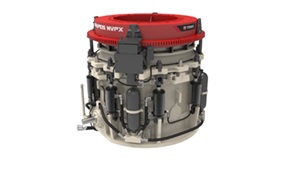

MVP450X

Capacity 200-645 tph / 182-585 mtph

CSS Range 3/8" to 2" | 10-51 mm

Head Diameter 54 1372

Motor Size 400 hp 300 kW

Weight 52500 lbs 23800 kg

MVPX_thumbnail

MVP550X

Capacity 250-810 tph / 228-737 mtph

CSS Range 3/8" to 2" | 10-51 mm

Head Diameter 60 1524

Motor Size 500 hp 375 kW

Weight 68000 lbs 30800 kg

TG820_1_thumbnail

TG820

CSS Range 1/2" to 2-1/2" / 13-64 mm

Max Capacity 1543-1709 tph / 1400-1550 mtph

Max Feed Size 1' 5/8" / 320 mm

Motor Size 805 hp 600 kW

Weight 110321 lbs 50000 kg

TG1020_1_thumbnail

TG1020

CSS Range 1/2"to 2-3/4" / 13-70 mm

Max Capacity 2315-2535 tph / 2100-2300 mtph

Max Feed Size 1' 2" / 355 mm

Motor Size 1006 hp 750 kW

Weight 169756 lbs 77000 kg
