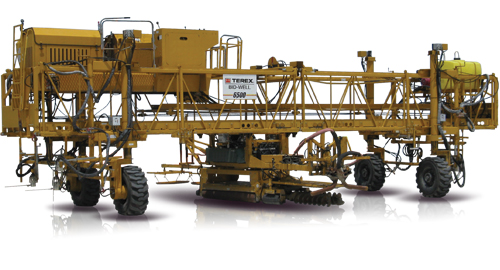

6500

6500
Specification Value
Truss Size H.D. 48 in / 1.2 m
Max Paving Width 68 ft / 20.7 m
Travel System Pneumatic Tires
Truss Depth Heavy-duty 48 in / 1.2 m truss with type 3 carriage rail
Machine Length 30 ft / 9.1 m standard, can be extended to pave 72 ft / 21.9 wide
Paving Width ■ Standard: 26 ft / 7.9m
■ Minimum: 12 ft / 3.6 m
■ Maximum: 68 ft / 20.7 m
Legs Powered Heavy duty 7 in / .18 m diameter
Machine Travel Four-wheel-drive puncture- resistant pneumatic rubber tires
Operating Weight 13,925 lbs / 6.316.3 kg
PavingCarriage ■ Dual 6 ft / 1.82 m long paving rollers
■ Dual adjustable 10 in / .25 m diameter strike-off augers,
direct-drive hydraulic motor
■ Heavy-duty internal concrete vibration system
■ Newly improved patented 18 in / .45 m Rota-Vibe®
■ Paving roller directional control valves
■ Automated roller rotation manifold valve
■ Dual adjustable drag pans with burlap drag
■ Hydraulic-powered dual drag pan lift system
■ Remote-controlled paving carriage control functions (FCC-
approved)
Power Two 56 HP 42 kW liquid-cooled diesel engines with 12-volt electric starters on the operator's power unit and paving carriage
Automatic Machine Operation Includes machine operation and all paving functions

■  Terex Hydra-Mation stringline sensing for steering and elevation
■  Hydraulic-powered crown adjuster
■  Operator-friendly control console with electronic control functions
■  Portable pressure-washer system: 100 gal / 378.5 L tank
■  Heavy-duty 2060 carriage travel drive chain
