TBG 630

tbg-630

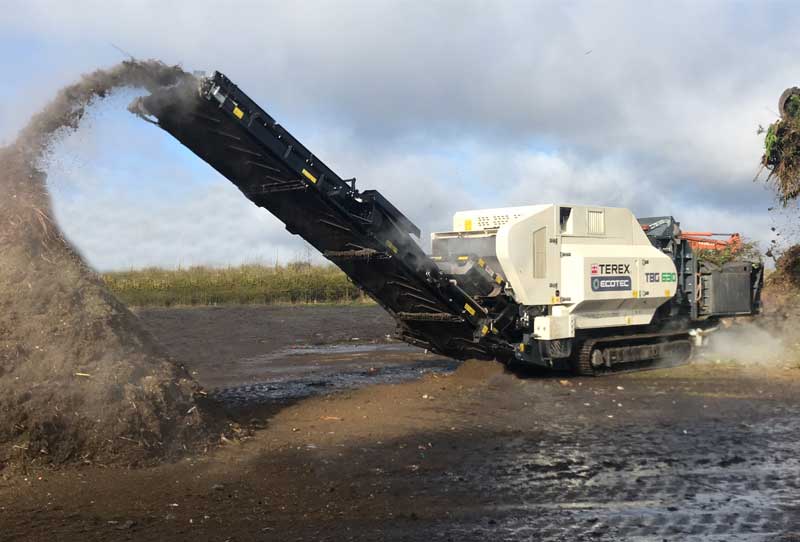

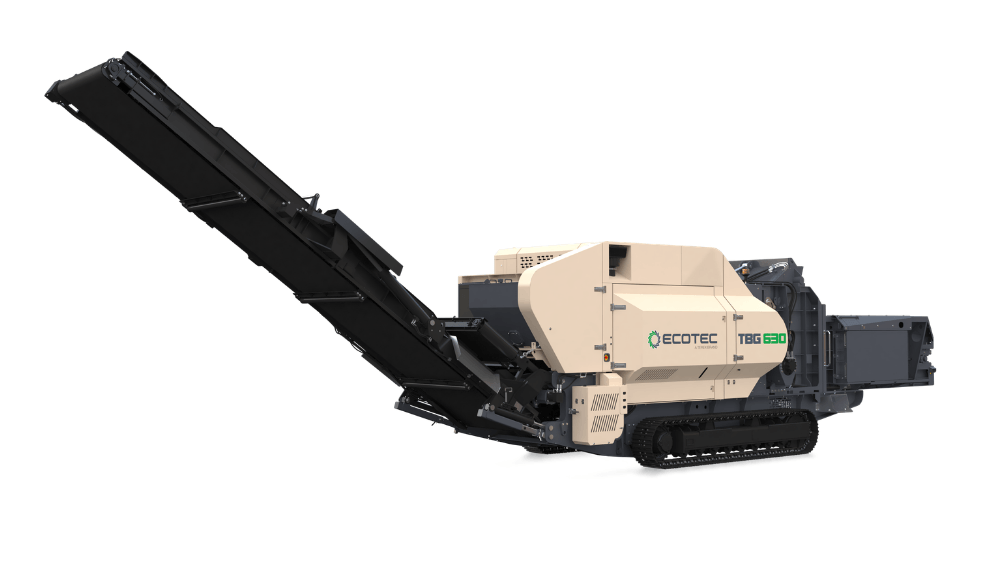

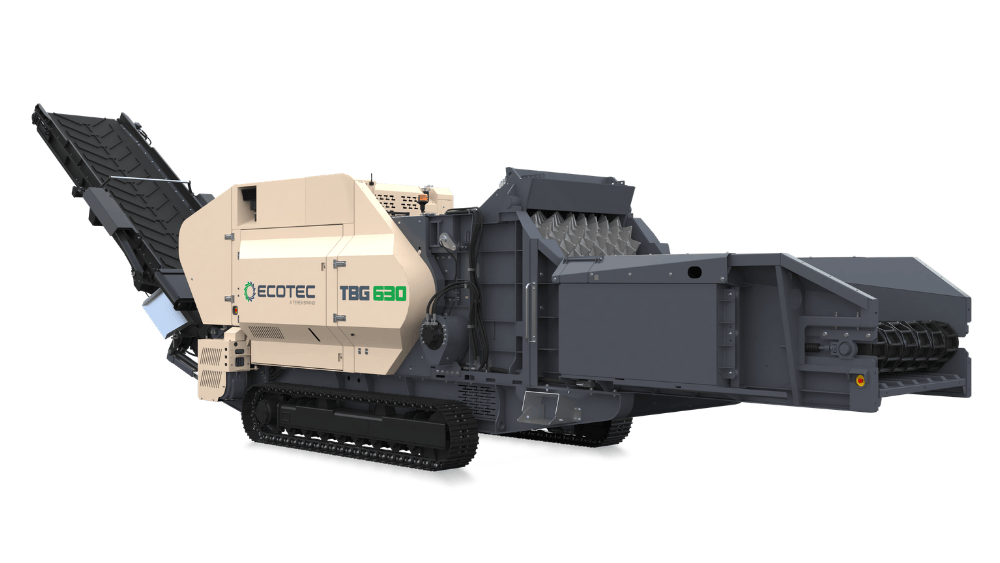

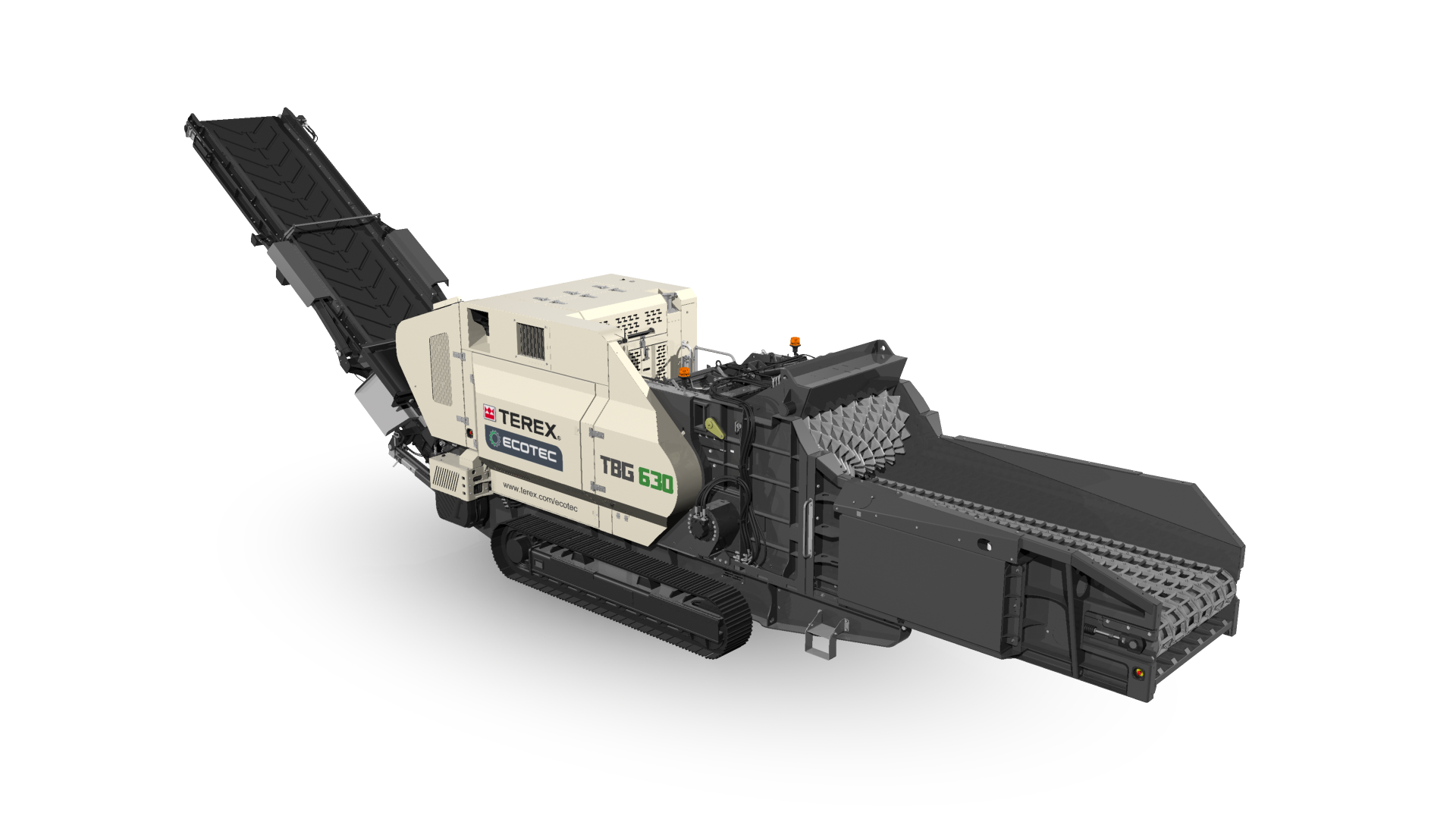

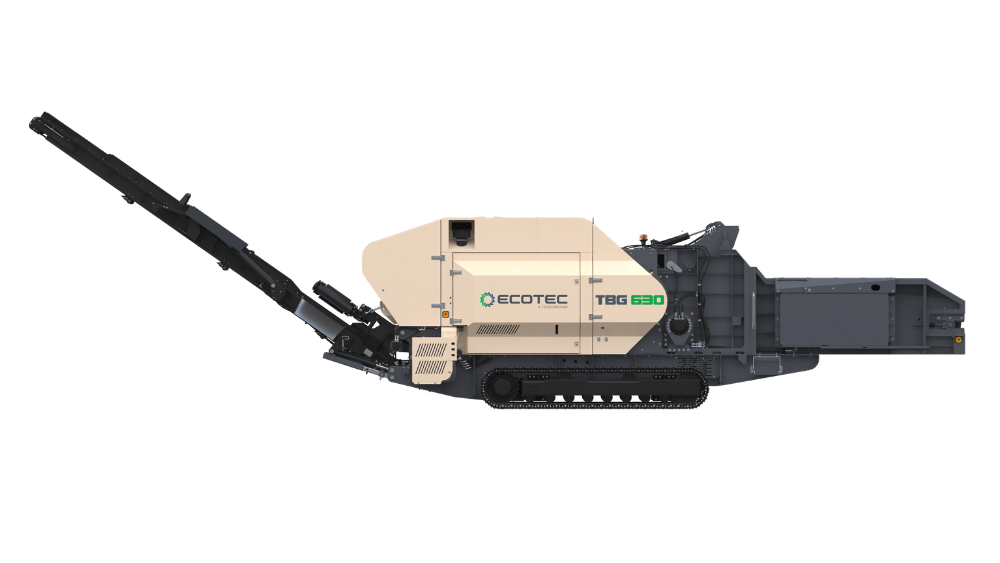

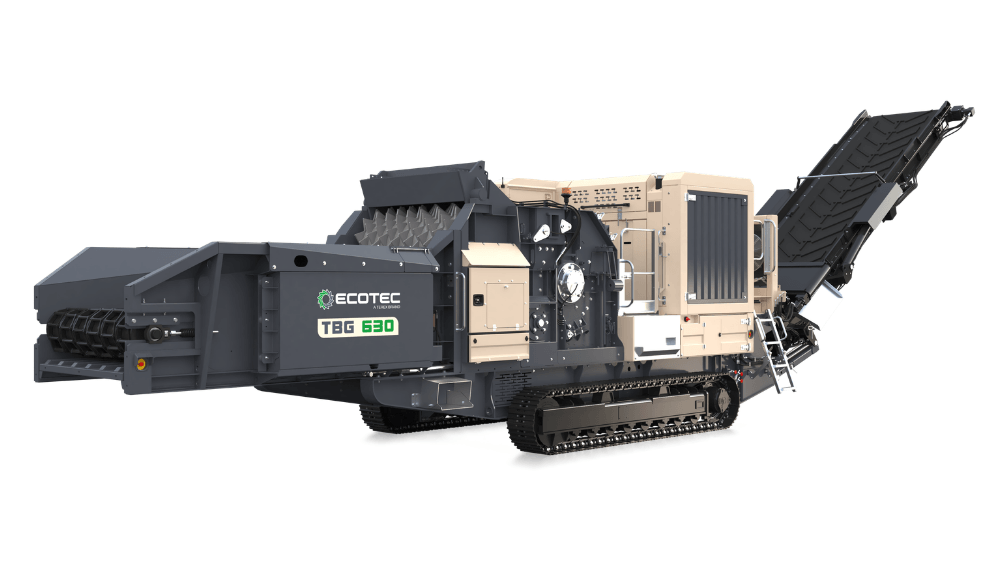

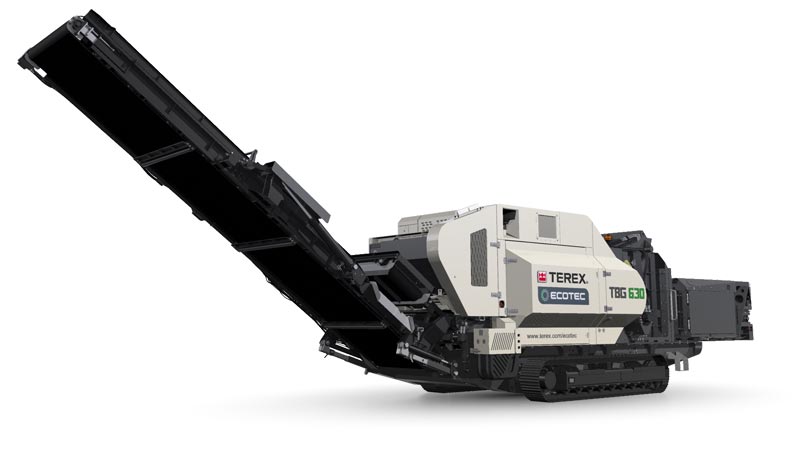

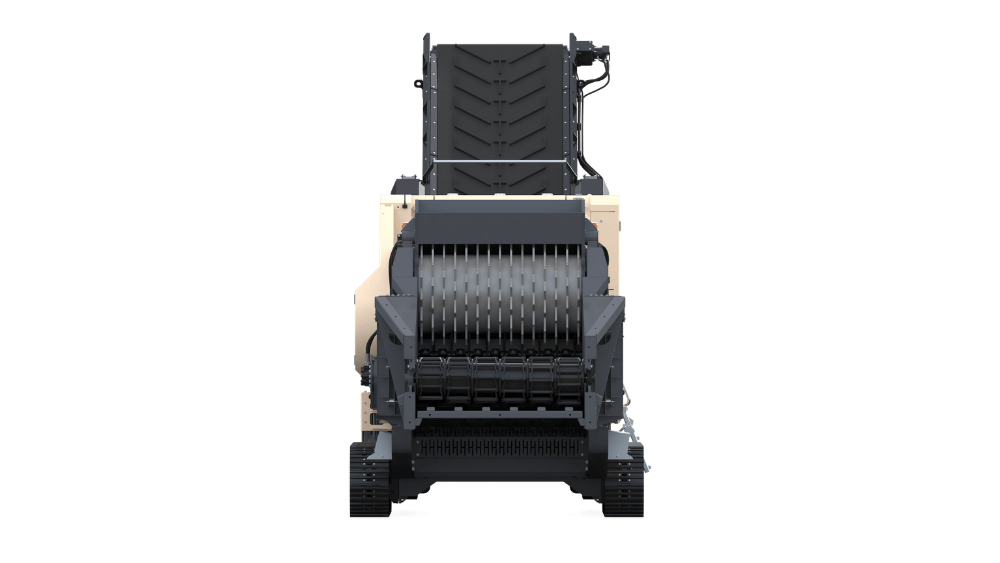

The TBG 630 High Speed Shredder is the ultimate processing machine for medium to large scale biomass and green waste processors.  Powered by a 661HP V8 Scania engine, the TBG 630 has been designed to give operators unrivalled production rates and ease of maintenance.  The open fronted feeder uses heavy duty drag chains, a powerful feed wheel and an unrestricted feeder design to effectively utilise the 1,100mm diameter x 1,750mm wide swinging hammer rotor.  This robust rotor comes with a wide selection of hammer designs and customisable screens which ensure end product material specification is met.

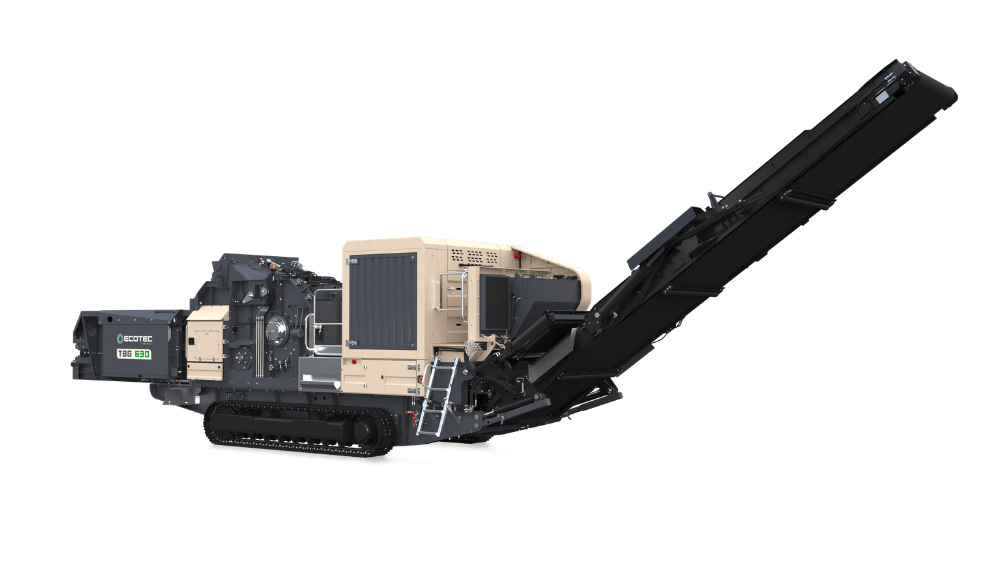

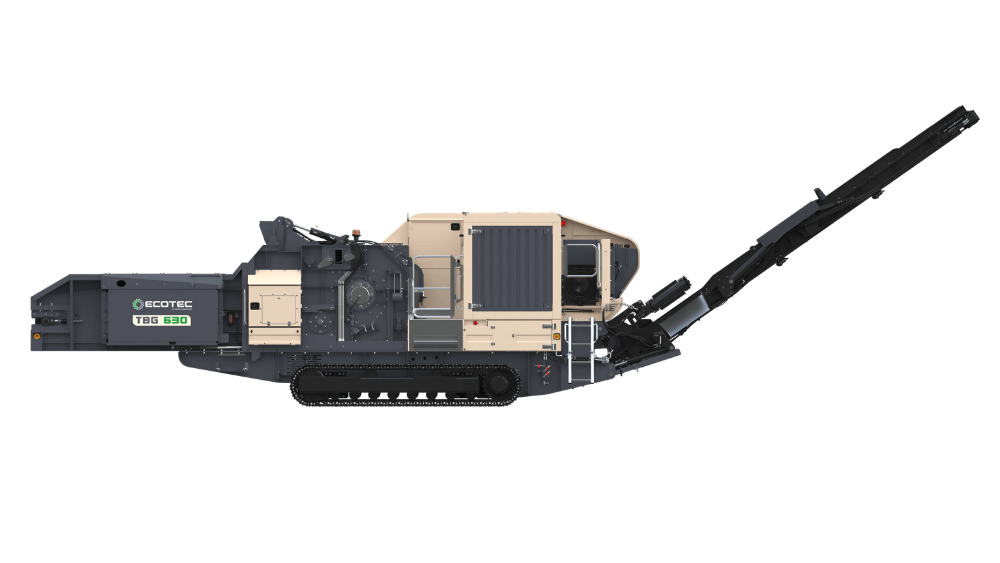

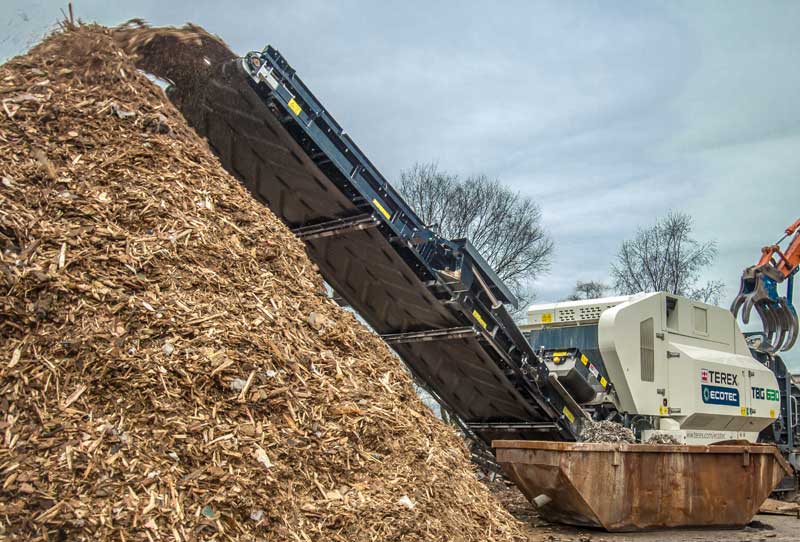

Metal contaminants are always a concern when using a high speed machine; the TBG 630 has an intelligent screen opening system to quickly discharge such contaminants reducing the risk of accidental damage.  The unique machine layout and maintenance catwalks offer unrestricted access to both sides of the engine making servicing a simple task.  Industry leading conveyor discharge height of 5.1m maximises stockpile capacity and allows loader operators to easily remove processed material

Specification Value
Infeed Dimensions 2'7" high x 5'7" wide / 780mm x 1,700mm
Rotor Dimensions Ø43" x 69" wide / Ø1,100mm x 1,750mm
Engine Scania DC16 661HP Tier 4 Final / Scania DC16 493kW Tier 4 Final
Weight 78,485lbs / 35,600kg
