TDS 820E

Electric Slow Speed Shredder

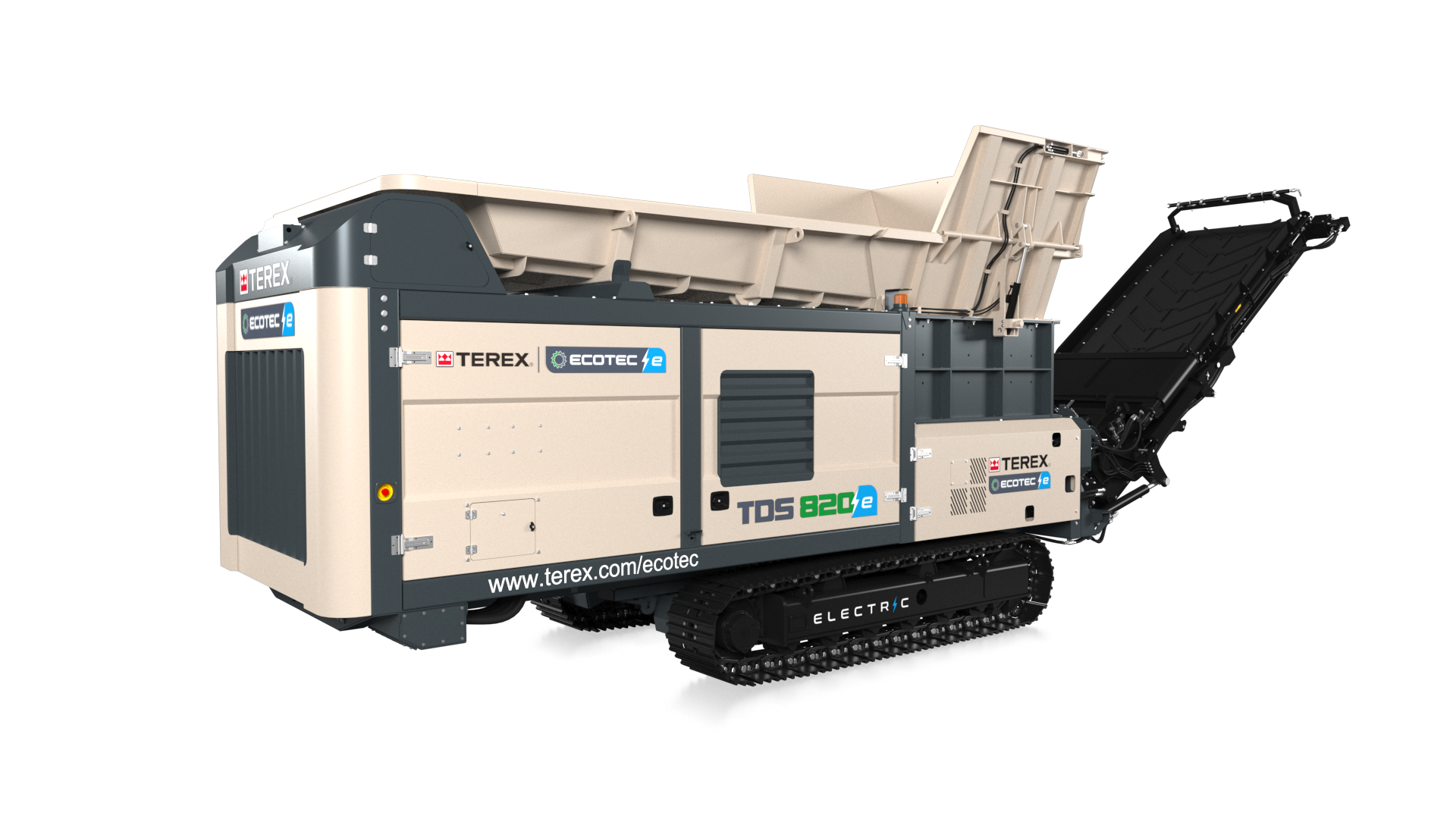

Ecotec's Electric Slow Speed Shredder the TDS 820E

Ecotec's TDS 820E mobile Electric Slow Speed Shredder features customisable shredding programs enabling operators to configure the machine to their specific requirements, reduce material wrapping and maximise production. Designed with independently-driven shafts, this double-shaft slow speed shredder is assured to give machine operators excellent performance in even the most challenging of applications.

Key features include an electric/hydraulic hydrostatic drive that provides increased protection against contamination and allows for bi-directional shredding. The 2 metre long shafts are manufactured with a fully-welded tooth configuration, which makes for massive throughput and excellent material reduction. Its independent gearboxes enable each shaft to be run separately reducing material wrappage for effective shredding operations.

Additional features include the tipping feeder which increases the feed area. Hopper extensions provide increased capacity in bulky applications. The machine is manoeuvred using a small on-board tracking engine powering the robust tracked undercarriage.


Service Access
Control Panel
Shredding Chamber
Shaft Cutting
Specification Value
Shaft Length 6'7'' / 2000mm
Electric motor 280kW WEG / 375HP WEG
Engine CAT C2.2 75HP Stage V / Tier 4 / CAT C2.2 55kW Stage V / Tier 4
Weight 63,934lbs / 29,000kg
