TSS 390T

Slow Speed Shredder

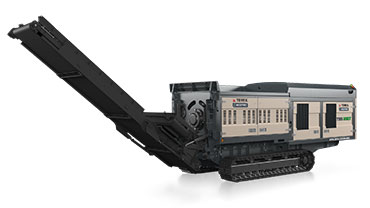

Ecotec's TSS 390T Tracked Single Shaft Shredder

Ideal for volume reduction, Ecotec's TSS 390T Portable Slow Speed Shredder has the ability to handle the toughest of materials including tree stumps and roots, green waste, C&D waste, waste wood, pallets and rail ties.

This Tracked Single Shaft Shredder designed in-house, the 3m long shredding shaft is made from heavy duty steel with replaceable, bolt-on shredding teeth.  Being hydrostatically driven, it offers the benefit of full speed, full torque reverse as well as protection against contaminants.  Customisable shredding programs enables the operator to configure the machine to their specific requirements and offers improved shaft cleaning in difficult applications, reducing wrappage and optimising throughput.

Shredding takes place against a hydraulically adjustable counter comb allowing the product size to be tailored.  This comb can be operated in either a fixed position, where product size is critical or in ‘release mode’ when the comb can open rapidly to allow large contaminants to pass without the need to stop shredding.

Designed to provide operators with unrivalled levels of service access the shredding chamber has hydraulically operated doors on both sides allowing chamber maintenance to be carried out with ease. The TSS 390T offers quick and simple set-up and will be ready to shred in a matter of minutes.  All conveyors are modular in design allowing each one to be removed independently reducing maintenance downtime.

Overband Magnet
Access Doors
Counter Comb
Shredding Chamber
Control Panel
Service Access
Engine
Specification Value
Shaft Length 9’ 10” / 3,000mm
Engine Scania DC13 493HP Stage V (EU) / Scania DC13 368kW Stage V (EU)
Engine Scania DC13 493HP Tier 4 Final (USA) / Scania DC13 368kW Tier 4 Final (USA)
Engine Scania DC13 493HP Stage II (ROW) / Scania DC13 368kW Stage II (ROW)
Weight 70,548lbs / 32,000kg
