Phoenix 1600

Trommel Screener

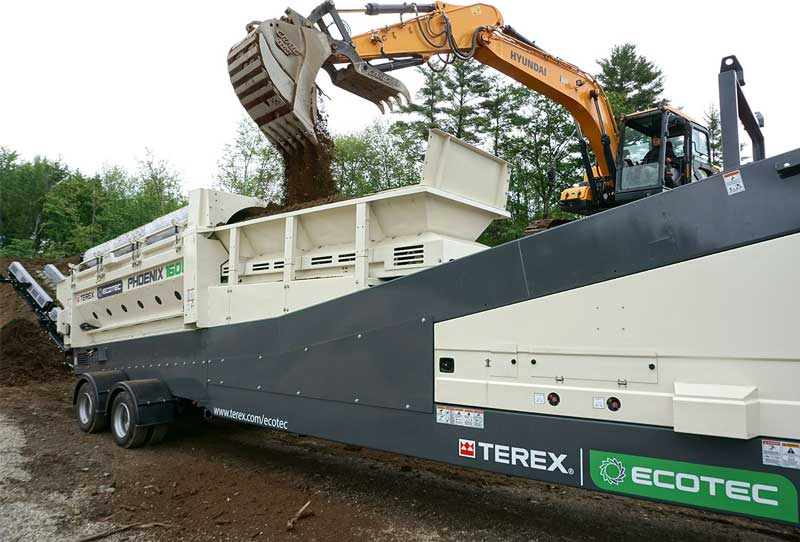

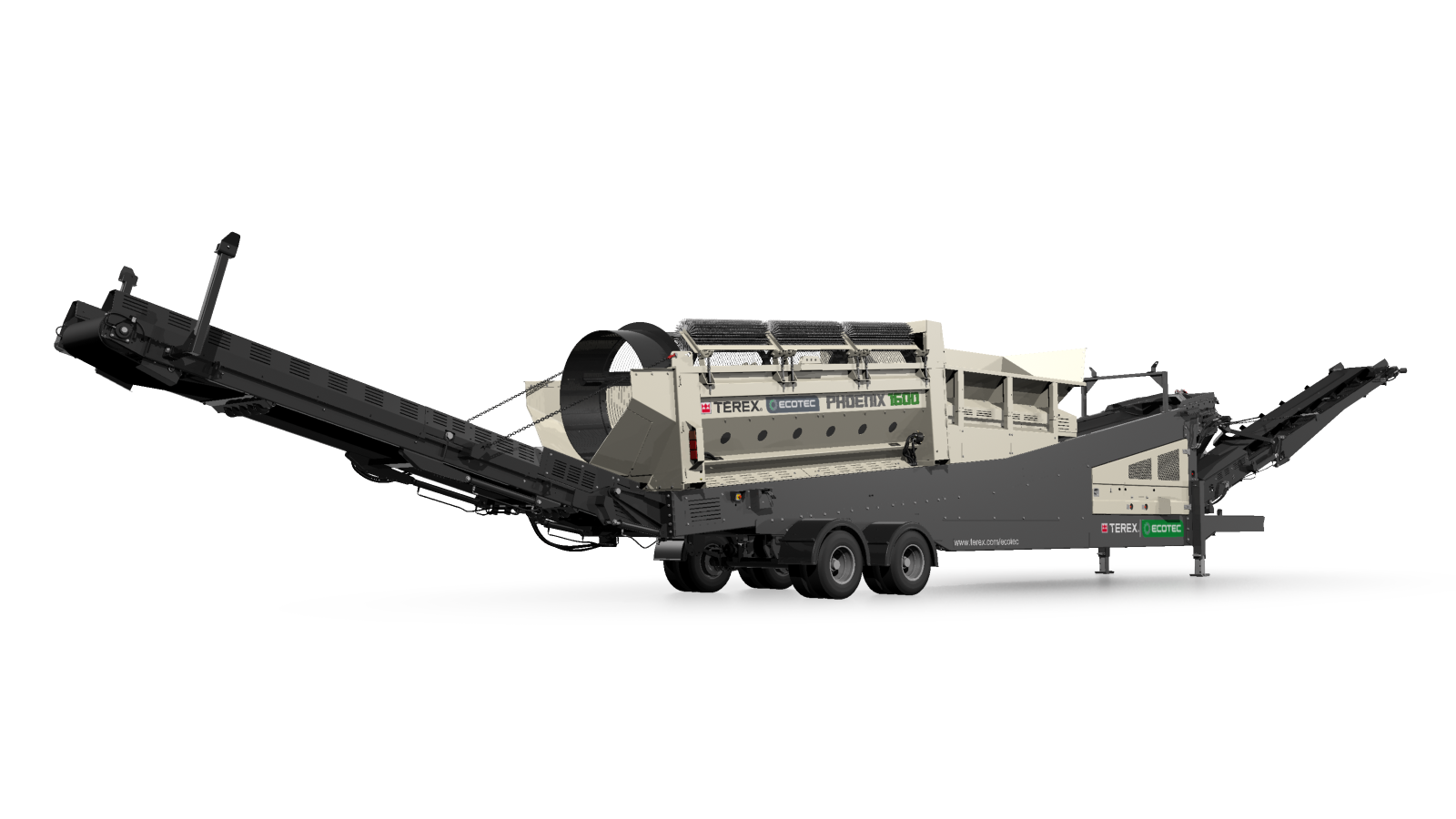

Ecotec's Phoenix 1600 Trommel Screener

Ecotec's Phoenix 1600 Trommel screener has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM.  With a 4.9m (16') x 1.54 (5') drum, unrivalled production throughput is guaranteed due to the large screening area.  Highly versatile the Phoenix 1600 can easily screen a variety of material including topsoil, compost, sand and gravel, wood chip and C&D waste.  Woven mesh or heavy duty punch plate panels can be fitted to the drum ensuring all application requirements are met.

The 180° swivel fines conveyor, with a discharge height of 5.9m (19'4") results in the creation of impressive stockpiles.This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.  The powerful four wheel drive system with high performance friction wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.

Powered by a Caterpillar C4.4 engine (Tier 4 Final Constant Speed) the powerful hydraulics and intelligent feed control system ensure the Phoenix 1600 is always working at its optimum.

Variable Speed Oversize Conveyor
Mesh or Punch Plate Panels
Adjustable Self Cleaning Brushes
Variable Speed Drum Drive System
Intelligent Feed Control
High Capacity Feeder Hopper
Tipping Grid Option
Excellent Service Access
Low Engine RPM & Fuel Save System
Remote Operated 180 Degree Radial Fines Conveyor
Specification Value
Engine CAT C4.4 130 HP Tier 3 / CAT C4.4 97kW Tier 3
Engine CAT C4.4 110HP Tier 4 Final / CAT C4.4 82kW Tier 4 Final
Drum Diameter 5' / 1,540mm
Drum Length 16' / 4,900mm
Weight 39,700lbs / 18,000kg
