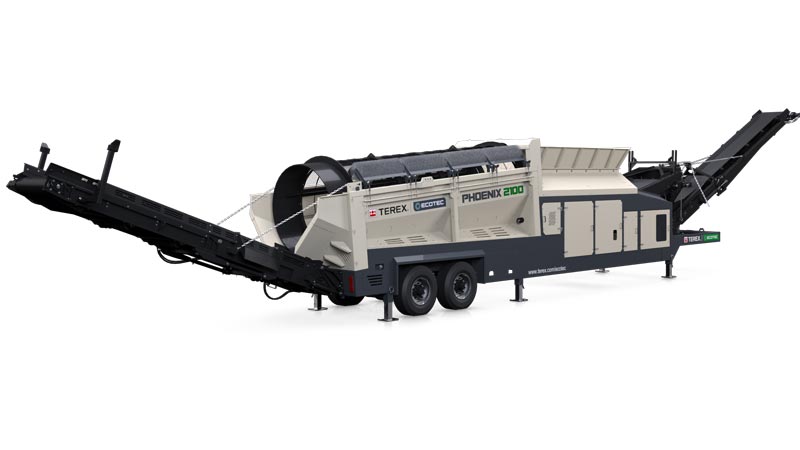

The Phoenix 2100 trommel screen is designed to offer unrivalled production throughput and application flexibility. The robust trommel design with optional features such a heavy duty tipping grid or double deck vibrating grid make the Phoenix 2100 the most versatile trommel on the market today. The 180° swivel fines conveyor, with a 5.7m (18’ 6”) discharge, means the machine can generate massive stockpiles. This swivel feature can be controlled via a radio remote while the machine is in operation, minimising downtime.
A powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally. Woven mesh or heavy duty punch plate panels can be fitted to the trommel drum ensuring all application requirements are met.
Caterpillar Tier 3 or Tier 4 engines combined with powerful hydraulics and auto feeder kick out mean the machine is always working at its optimum. A fifth wheel connection, tandem axle bogie and a rapid setup time make the machine highly mobile.
The Phoenix 2100 is highly efficient in the separation and processing of wood chippings, top soil, compost "green waste", demolition waste, aggregates and yard waste.
|Engine||CAT C7.1 202 HP Tier 3 / CAT C7.1 151 kW Tier 3|
|Engine||CAT C4.4 173 HP Tier 4 Final / CAT C4.4 129kW Tier 4 Final|
|Drum Diameter||6' 4" / 1,940mm|
|Drum Length||21' 2" / 6,450mm|
|Weight||60,627lbs / 27,500kg|
