TTS 518T

Tracked Trommel Screen

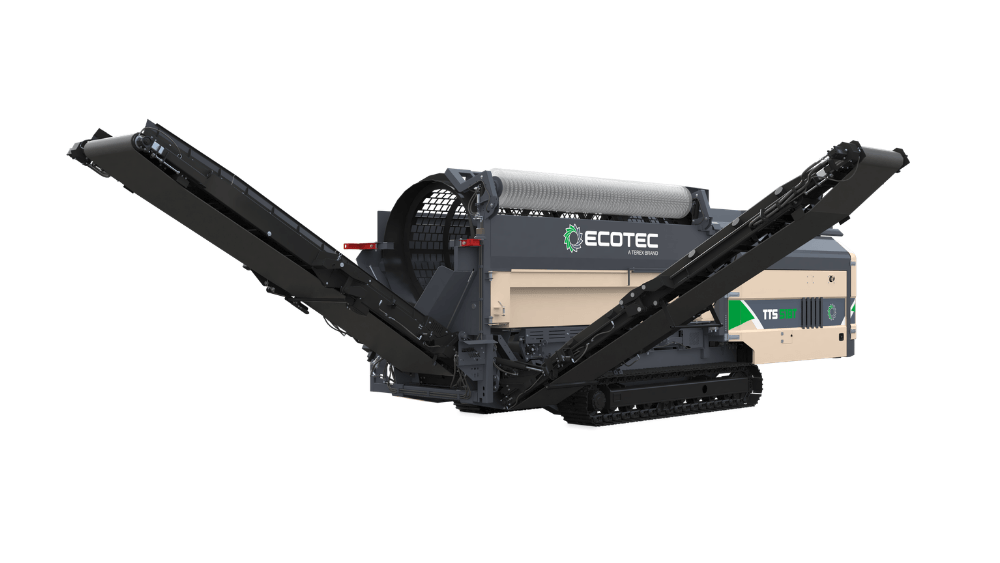

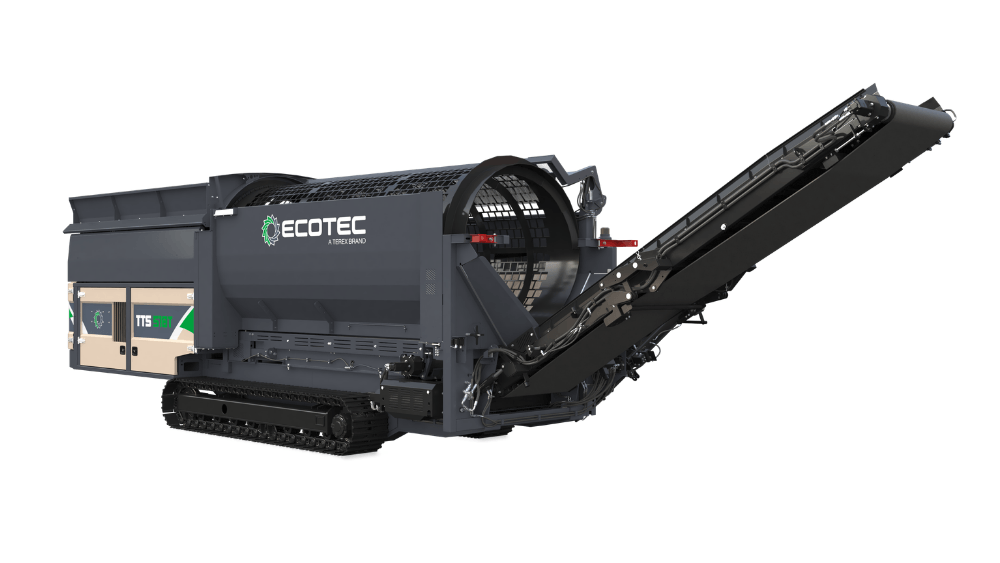

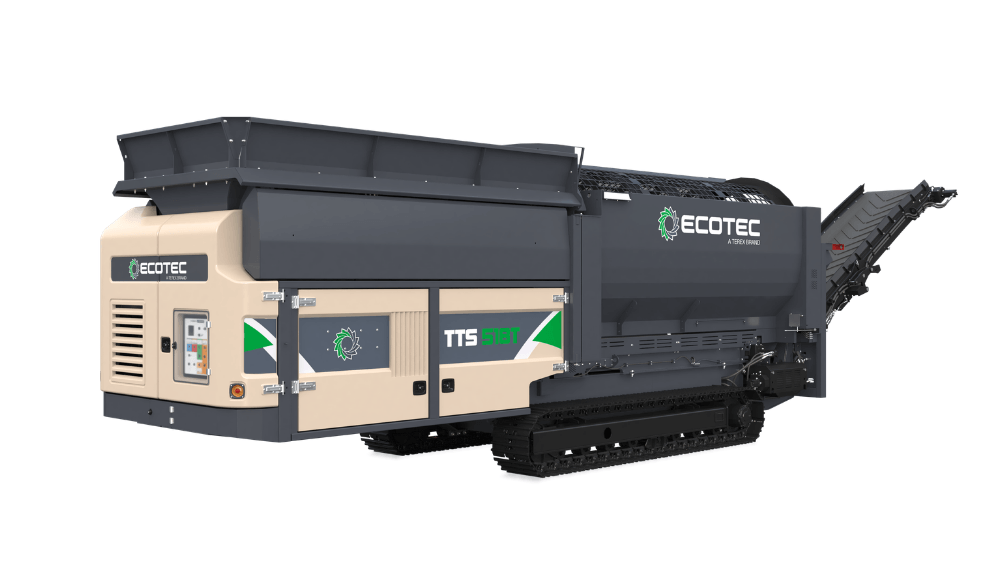

Ecotec's TTS 518T Tracked Trommel Screen

Ecotec's TTS 518T Tracked Trommel Screen shares the same intuitive control system and ‘push to start’ buttons used on the TTS 620, allowing the operator to effortlessly configure the machine to suit the required application. The intelligent feed control system continually monitors the machine adjusting the feeder speed to optimise screening performance and throughput.  Being driven at the head, the feeder provides an excellent and continuous feed rate, reducing slippage in difficult applications.  The feeder has also been designed as a slide out cassette which allows for easy maintenance and quick and simple belt changing.  The clear tunnel area underneath the feeder prevents material build up and allows any material in this area to drop directly onto the ground.

Providing a total screening area of 23m² the TTS 518T is fitted with a 1.8m x 4.7m horizontal drum with spiral design. With double-sided drum access via 180 degrees opening side doors, maintenance and drum changes can be carried out with ease.  The TTS 518T has been designed to accept a number of other trommel manufacturers’ drums, enabling it to integrate seamlessly into an operators existing fleet.

The TTS 518T is fully equipped with the latest Stage V engine requirements and has been designed to provide excellent fuel efficiency and low operating costs. The swing out engine cradle provides unprecedented service access enabling daily checks and maintenance to be carried out safely from ground level. All the conveyors are fully modular allowing each to be removed independently, with the fines and oversize also lowering to ground level for maintenance.

An adaptable trommel suitable for all market conditions, the TTS 518T is a tracked unit providing increased site mobility.

Access Doors
Engine Speed
Control System
Service Access
Punch Plate Drum
Specification Value
Engine CAT C2.2 74HP Stage V / Tier 4 Final (Dual Certified) / CAT C2.2 55kW Stage V / Tier 4 Final (Dual Certified)
Engine CAT C4.4 83HP Stage IIIA / CAT C4.4 62kW Stage IIIA
Drum Diameter 5' 1'' / 1.8m
Drum Length 15' 5'' / 4.7m
Weight 40,000lbs / 18,000kg
