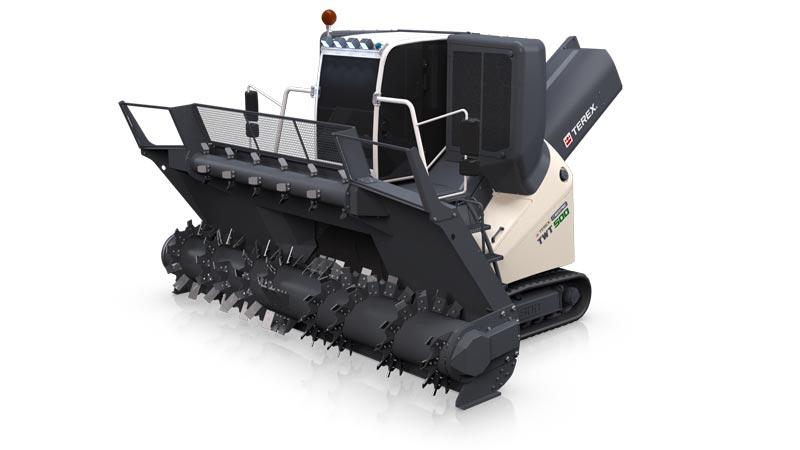

TWT 500

twt 500 Windrow Turner

The TWT 500 raises turning to a new level and is the ideal windrow turner for operators who want to turn great volumes of material quickly in confined spaces.

With air-conditioned cabin, auxiliary cooling and protective ventilation the TWT 500 is perfect for indoor operation with high ambient temperatures.  The full rotor allows windrows to be processed against walls and the high windrows allow a greater volume of material to be packed within the shed.  Unlike conventional tunnel machines no travel paths are required, due to the design of the TWT 500 windrows can be processed closer together reducing the yard space required.

Scooping gently instead of milling, the TWT 500 ensures that the coarse-grained structure of the material is retained, and as a result more oxygen can get in.  The patented inline system with stacking side conveyor ensures maximum material mixing, aeration and loosening, giving up to 20% shorter rotting times.

And most importantly, the TWT 500 can easily process overlapping windrows resulting in up to 30% space saving.

Specification Value
Engine Volvo TAD853VE 320HP Tier 3A / Volvo TAD853VE 235kW Tier 3A
Engine Volvo TAD873VE 320HP Tier 4 Final / Volvo TAD873VE 235kW Tier 4 Final
Weight 22,046lbs Base + 7,055lbs or 8,378lbs Rotor / 10,000 kg Base + 3,200kg or 3,800kg Rotor
Rotor Size 13' Standard / 16' Optional / 4m Standard / 5m Optional
