Conveyor Range

Ecotec offer a comprehensive range of conveyors which include tracked mobile conveyors, high and low level feeders and radial stockpilers. All the conveyors have been designed to have compact transport dimensions allowing them to be easily tracked in and out of a 40ft container, benefiting from cost effective global shipping rates. Fully hydraulic folding enable the conveyors to have rapid set up times, while hydraulic angle and speed adjustment ensure optimum performance in every application.

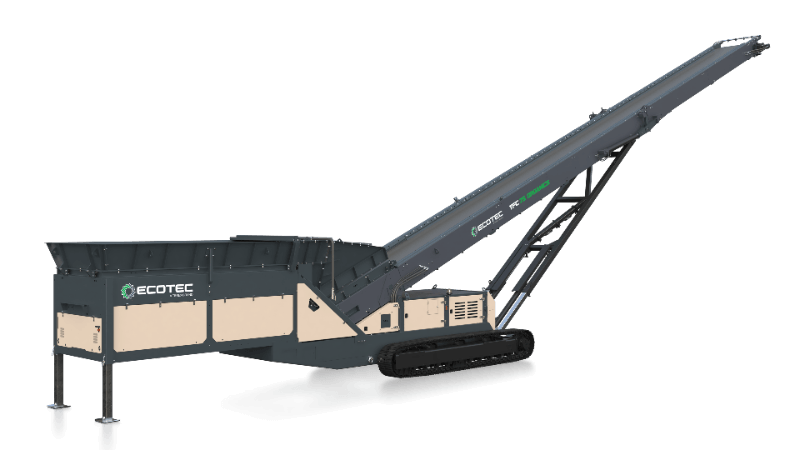

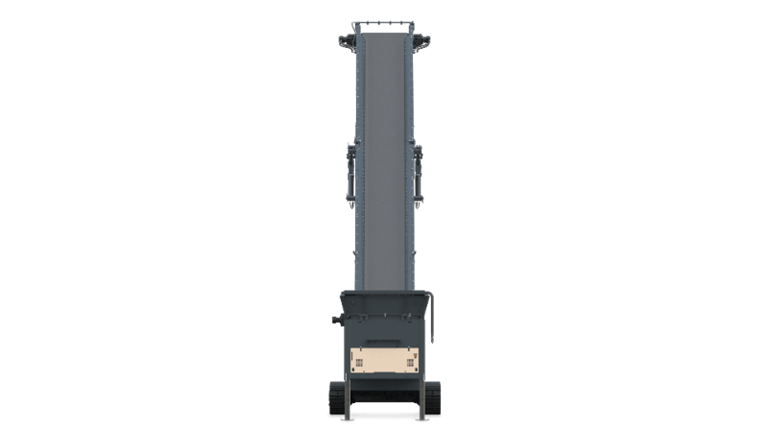

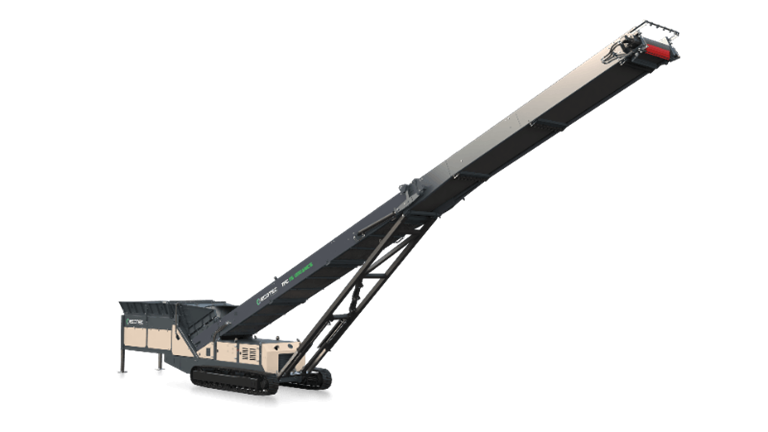

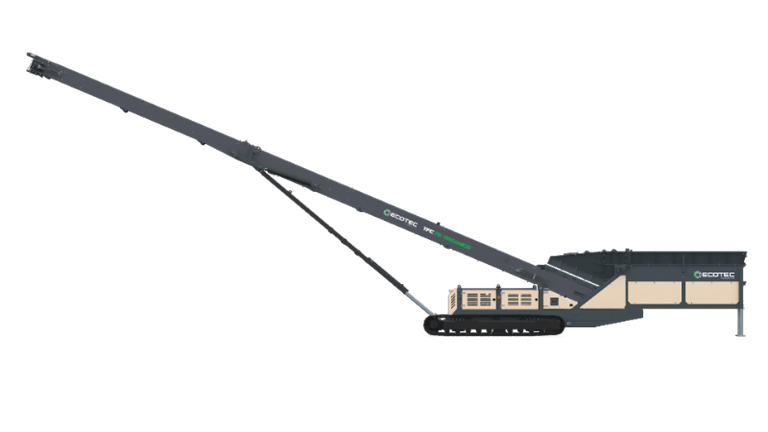

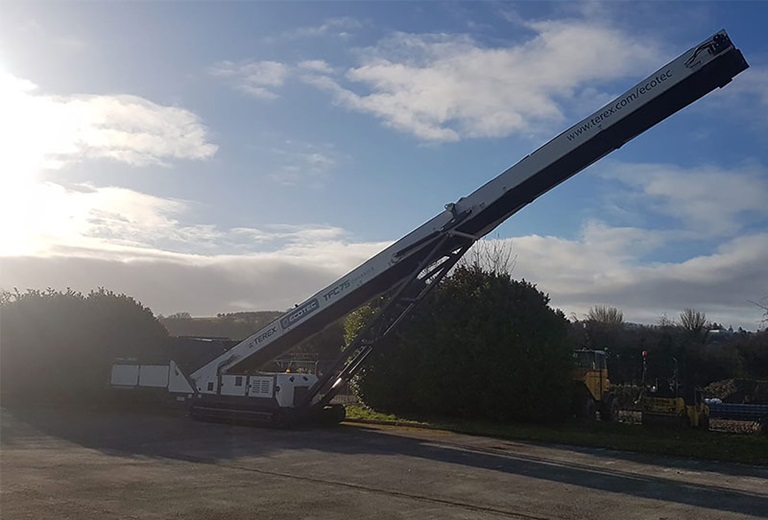

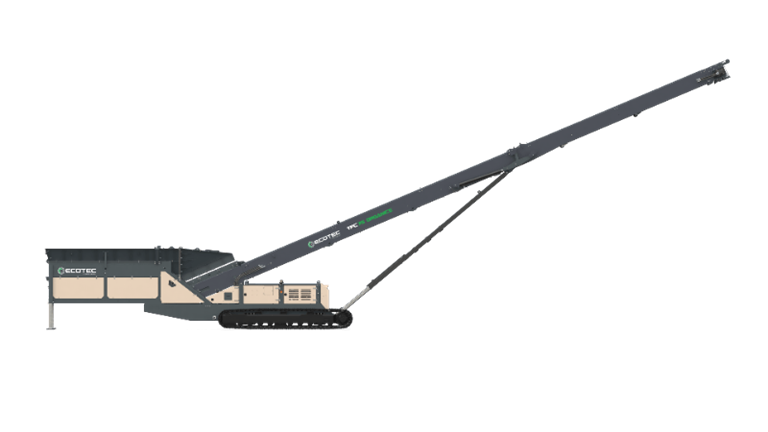

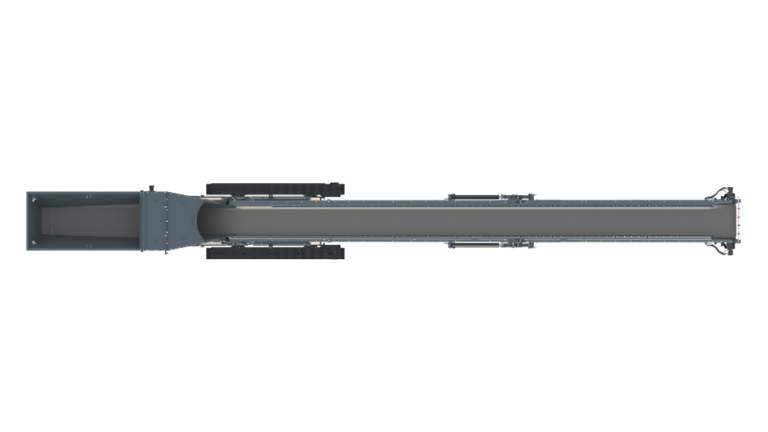

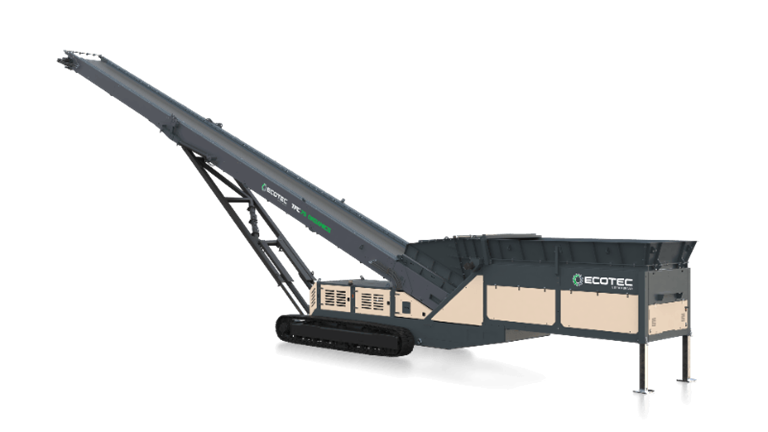

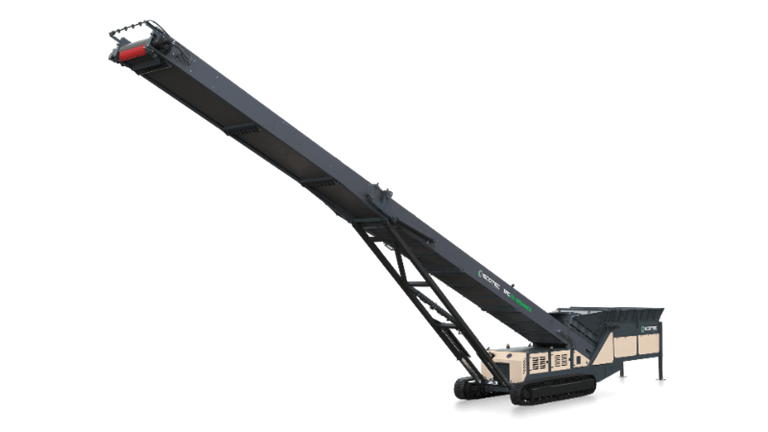

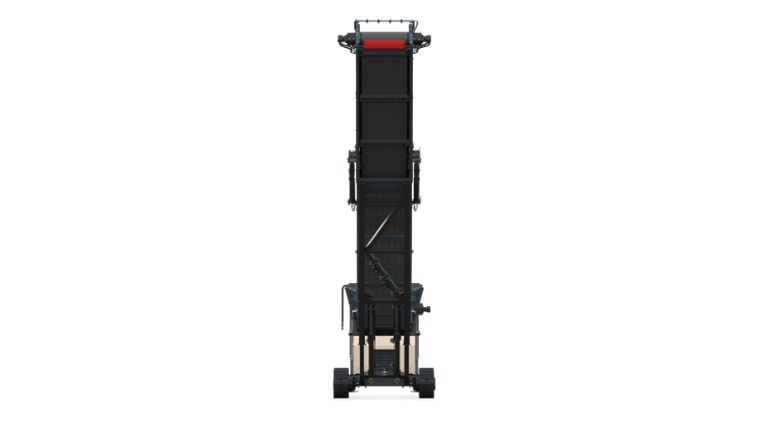

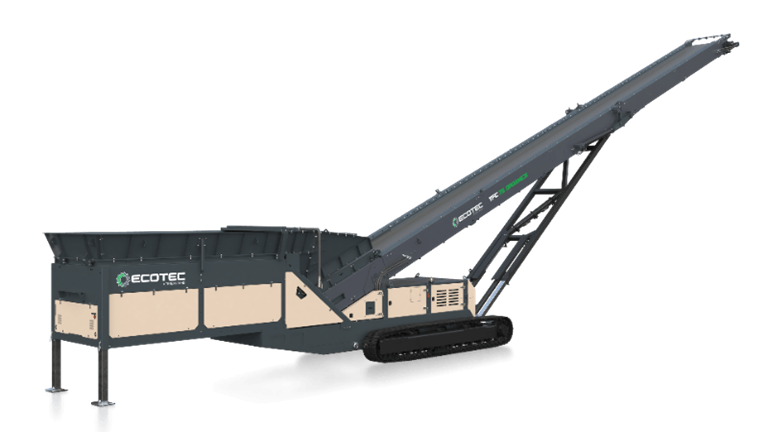

TFC 75 Organics

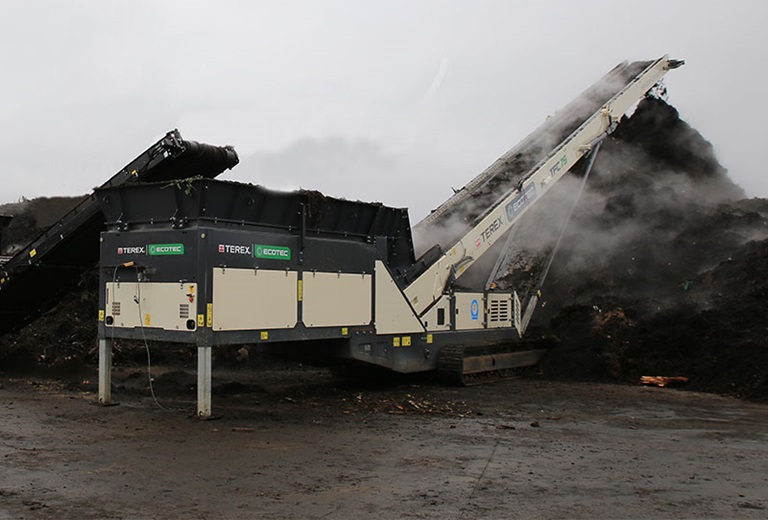

Ecotec's TFC 75 Organics High Level Feeder has been engineered specifically for the stockpiling and aerating of lower density, bulky materials such as soil, mulch, biomass and compost.  Located at the hopper outlet, the auger provides aeration and an untangling solution for organic materials.  The auger flips, rotates and regulates the flow of material minimising fluctuations in the bulk density of organic materials and is equipped with replaceable hardened paddle wear plates.  High capacity, bespoke hopper design efficiently transfers and prevents the bridging of material.  The reverse functionality of the feeder enables blockages to be cleared and oversized material removed.  Controlled and efficient flow of material is guaranteed due to the adjustable operating speed of the feeder belt.

Technical Documentation

Measurements

Conveyor Length 73 ft 10 in 22 m 50 cm
Belt Width 47’’ Discharge Conveyor - 55’’ Feed Conveyor 1200 mm Discharge Conveyor - 1400 mm Feed Conveyor
Max Discharge Height 32 ft 2 in 9 m 80 cm
