Handling

Our range of waste handlers are purpose-built for the recycling industry to perform effective, high volume material handling duties in open terrain or indoor settings. Offering stability and a high load capacity these machines boast features that are now intrinsic to recycling plants. Generously proportioned fuel tanks and extremely durable components ensure that the waste handlers productivity is maximised.

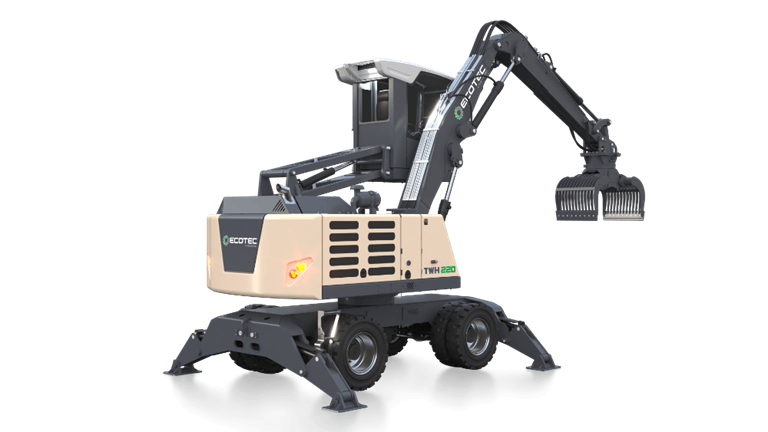

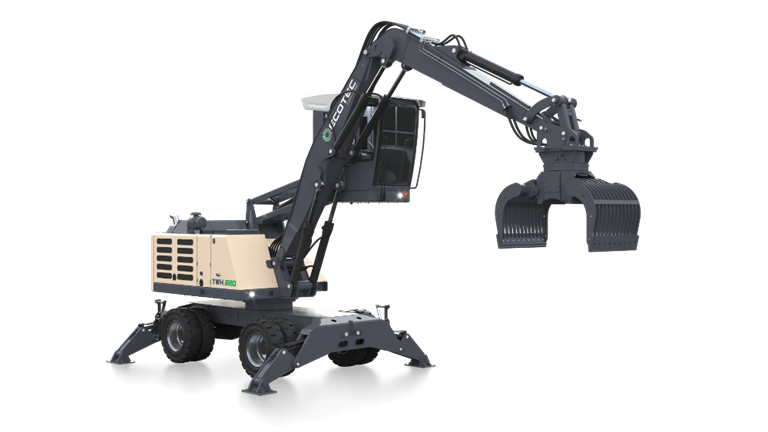

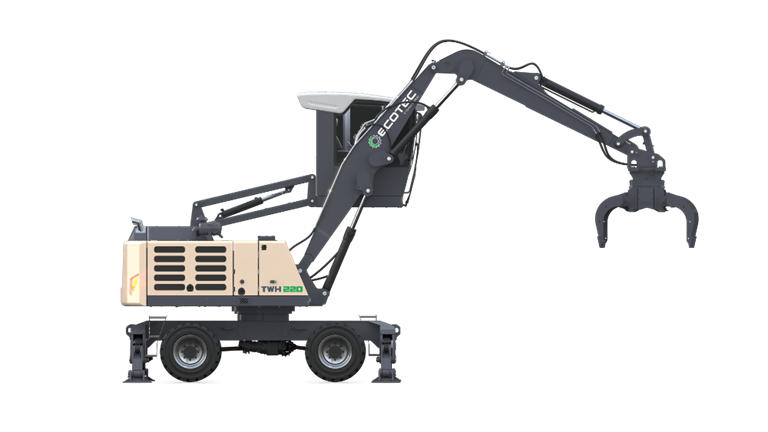

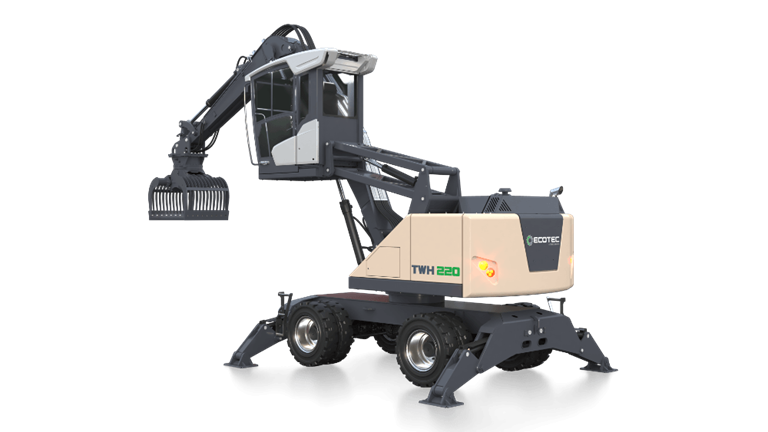

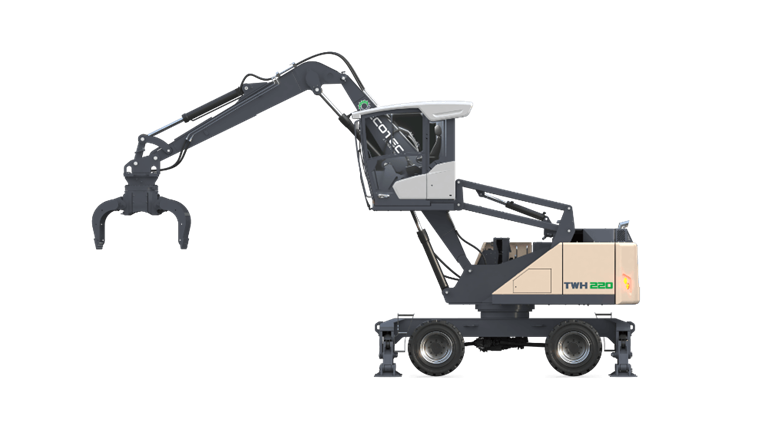

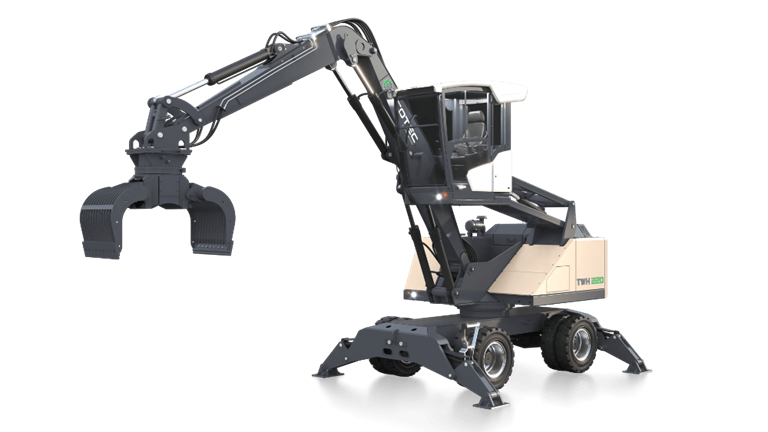

TWH 220

Ecotec's TWH 220 Waste Handler is compact, manoeuvrable and powerful. Offering outstanding visibility with a reach of 10.4 metres and an operating weight of 21 tonnes, this machine is the ideal solution for those who refuse to compromise on performance, efficiency and reliability – even in an entry level model.  Double-edged cylinder bearings on the entire boom, a high performance cooling system with spatially separate radiators and the double-row ball joint provide extraordinary durability make the TWH 220 the first choice for waste recycling.

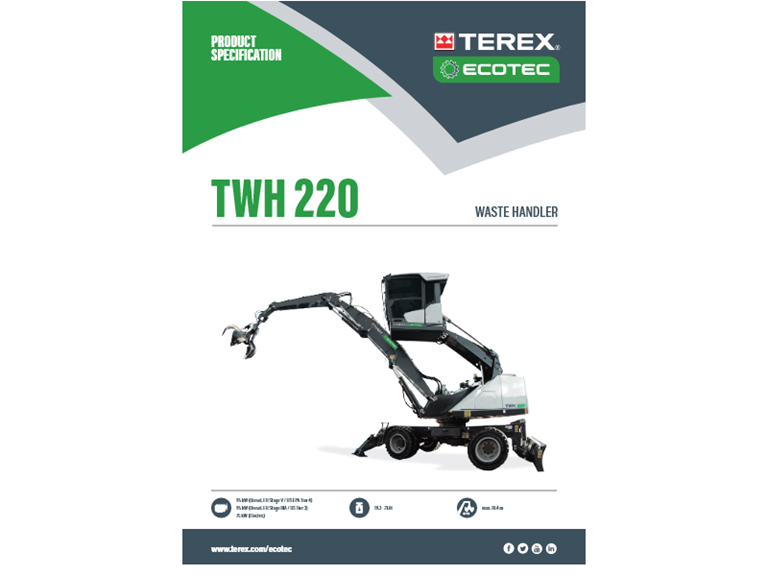

Technical Documentation

Measurements

Weight 42,549 lbs – 46,297 lbs (Without Attachments) 19,300 kg – 21,000 kg (Without Attachments)
Max. Reach 34 ft 1 in 10 m 40 cm

Power

Engine Stage V / Tier 4 Deutz TCD 3.6 L4 127 HP Deutz TCD 3.6 L4 95 kW
Engine Stage IIIA / Tier 3 Deutz TCD 3.6 L4 127 HP Deutz TCD 3.6 L4 95 kW
