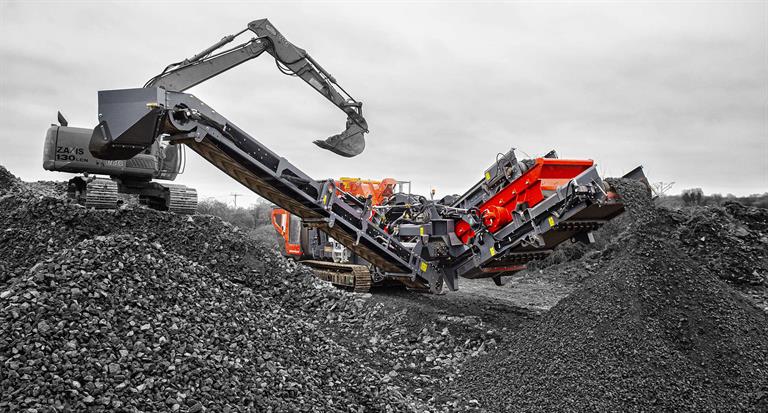

The Terex® Finlay IC-100RS impact crusher provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications.

Key features:

• Direct drive Ø860mm x 860mm (Ø34" x 34") crusher chamber with independent belt tensioner allowing for rapid adjustment.
• Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons and hydraulic overload protection in event that an un-crushable object enters chamber.
• Advanced electronic control system monitors, controls and regulates the speed of the VGF to maintain a consistent flow of material into the impact chamber.
• Quick and easy detachable 2.44m x 1.2m (8’ x 4’) single deck afterscreen, fines and transfer conveyor for open circuit crushing.


Read more

The TF-75H organics high level feeder has been engineered specifically for the stockpiling and aerating of lower density, bulky materials such as soils, mulch, biomass and compost.

Key features:

• Auger at the hopper outlet provides aeration and untangling solution and minimizes fluctuations in bulk density of organic materials.
• Heavy duty auger design, equipped with replaceable hardened paddles.
• The adjustable operating speed of the feeder belt ensures controlled and efficient flow of material.
• Specifically designed organics hopper improves material flow eliminating bridging and ensures efficient movement of materials.

Read more

The next generation 694+ inclined screen has been developed to fulfill the demands of high production producers. The new high energy screenbox features three full size 6.1m x 1.53m (20’ x 5’) decks that can process fine, sticky and dirty material with ease in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications.

Key features:

• Simplified and reconfigured folding mechanism for the onboard product conveyors for ease of deployment and user-friendly operation.
• Hydraulic folding catwalks as standard for improved onsite efficiency and to enable rapid screenbox deployment.
• Maximum utilisation of three 20’ x 5’ (6.1m x 1.53m) decks provide ultra-efficient screening capacities even at small aggregate sizes.
• Screen box angle can be hydraulically adjusted to an angle between 18°and 32°.
• T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Read more

The 696 2-deck inclined screen has been developed to fulfill the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high energy screenbox features two full size 6.1m x 1.7m (20’ x 5’ 7”) to give a total screening area of 20.74m² (223ft²).

Key features:

• Simple and intuitive folding mechanism for the onboard product conveyors for ease of deployment and onsite movement.
• Hydraulic folding catwalks as standard for improved onsite efficiency and to enable rapid screenbox deployment.
• The hydraulics system has been engineered to provide the optimum balance of power and efficiency.
• Screen box angle can be hydraulically adjusted to an angle between 18°and 32°.
• T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Read more

The Terex Finlay 696 3-deck inclined screen has been engineered to provide a superior high production solution in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high energy screenbox is the largest in the triple deck range and features three full size 6.1m x 1.7m (20’ x 5’ 7”) decks to give a total screening area of 31.1m² (335ft²).

Key features:

• • Intuitive and simple folding mechanism for the onboard product conveyors for ease of deployment and onsite movement.
• Hydraulic folding catwalks as standard for improved onsite efficiency and to enable rapid screenbox deployment.
• The hydraulics system has been engineered to provide the optimum balance of power and efficiency.
• Screen box angle can be hydraulically adjusted to an angle between 18°and 32°.
• T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Read more
