Terex Finlay has a rich global heritage for our high quality and robust mobile crushing, screening and conveying equipment. Whatever the crushing and screening application you will be amazed at the capabilities of our equipment.


JOB-REPORTS: CRUSHERS

Jobreport Crushers

Terex Finlay C-1554 Cone Crusher


Country: Ireland

Product Options:

MATERIAL TYPE:

Limestone



MACHINE SPECIFICATION:

CSS = 17mm Medium-Medium Liner configuration

Download

Jobreport Terex Finlay C-1554 Cone Crusher

Terex Finlay C-1540P Cone Crusher



Product Options:

MATERIAL TYPE:

Dolerite (10-30mm)



MACHINE SPECIFICATION:

CSS = 16mm Long Throw Chamber Autosand Liner configuration

Pre-Screen Mesh: 14mm

Download

Jobreport Terex Finlay C-1540P Cone Crusher

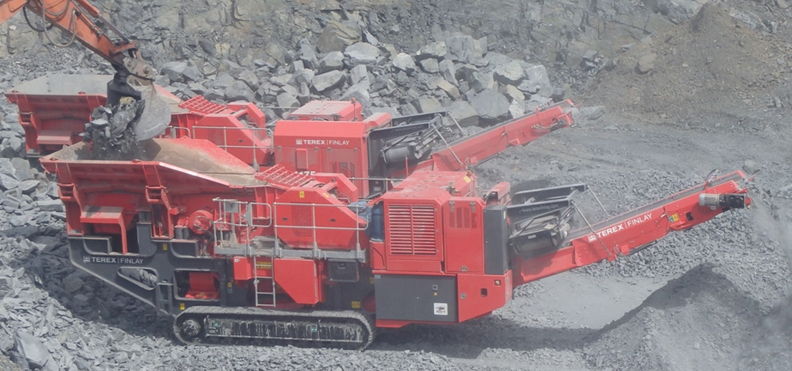

Terex Finlay J-1175 Hybrid Jaw Crusher (Blasted Shale)


Country: N.Ireland

Product Options:

MATERIAL TYPE:

Blasted Shale


MACHINE SPECIFICATION:

Closed side setting 95 mm

S-tooth liners

Jobreport Terex Finlay J-1175 Hybrid Jaw Crusher (Blasted Shale)

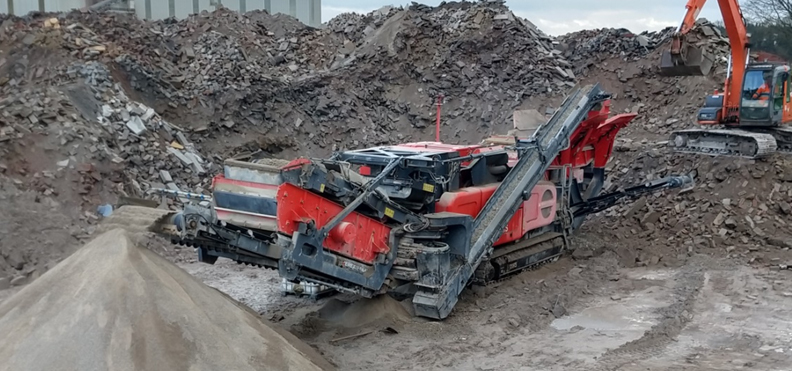

Terex Finlay I-120RS Impact Crusher



Product Options:

MATERIAL TYPE:

Rejected paving bricks flagstones

MACHINE SPECIFICATION:



Primary Apron: 50mm (2")

Secondary Apron: 20mm (13/16")

High 2 Low blowbar configuration Martensitic Blow Bars

(RS mesh)

Top deck 22mm (7/8")

Bottom deck 12mm (1/2")

Download

Jobreport Terex Finlay I-120RS Impact Crusher

Terex Finlay J-1170 Jaw Crusher


Country: Ireland

Product Options:

MATERIAL TYPE:

Granite



MACHINE SPECIFICATION:

CSS = 100mm

S-tooth liners

VGF: 75mm grizzlys, 38mm mesh



Download

Jobreport Terex Finlay J-1170 Jaw Crusher

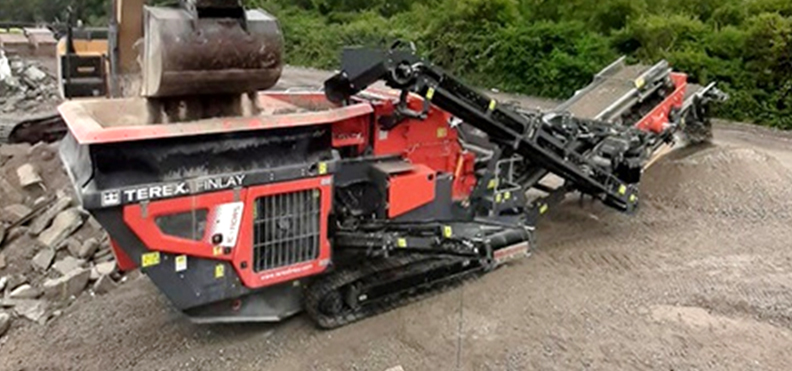

Terex Finlay IC-110RS Impact Crusher


Country: Germany

Product Options:

MATERIAL TYPE:

Concrete Demolition Waste



MACHINE SPEFICIATION:

Primary apron: 180mm

Secondary apron: 100mm

2 High, 2 Low blowbar configuration Martensitic Blow Bars

(RS mesh) 40 mm


Download

Jobreport Terex Finlay IC-110RS Impact Crusher

Terex Finlay I-120RS Impact Crusher


Country: Ireland

Product Options:

MATERIAL TYPE:

Asphalt

MACHINE SPEC:

Primary 30mm

Secondary 12mm

High 2 Low blowbar configuration Martensitic Ceramic insert Blow Bars

(RS mesh)

Top deck 25mm

Bottom deck 12mm

Download

Jobreport Terex Finlay I-120RS Impact Crusher

Terex Finlay C-1540P Cone Crusher


Country: Ireland

Product Options:

MATERIAL TYPE:

Grey Wacke (5-20mm)



MACHINE SPECIFICATION:

CSS = 16mm Long Throw Chamber Autosand Liner configuration

Pre-Screen Mesh: 14mm

Download

Jobreport Terex Finlay C-1540P Cone Crusher

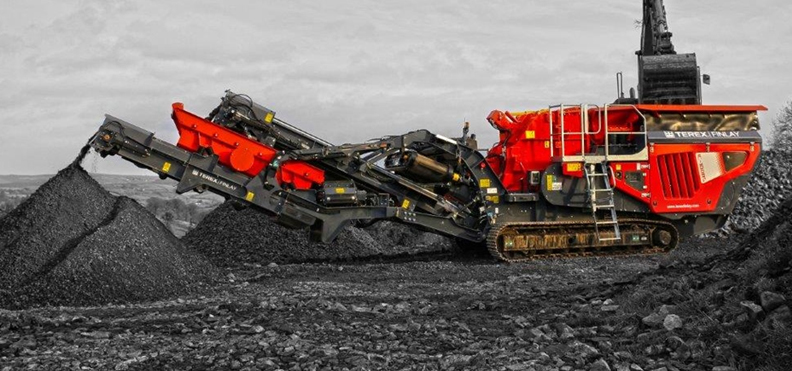

Terex Finlay IC-100RS Impact Crusher (Demolition)


Country: Ireland

Product Options:

MATERIAL TYPE:

Demolition waste



MACHINE SPECIFICATION:

Primary Apron: 150mm

Secondary Apron: 35mm

2 High, 2 Low blowbar configuration Martensitic Blow Bars

(RS mesh) 40mm

Download

Jobreport Terex Finlay IC-100RS Impact Crusher (Demolition)

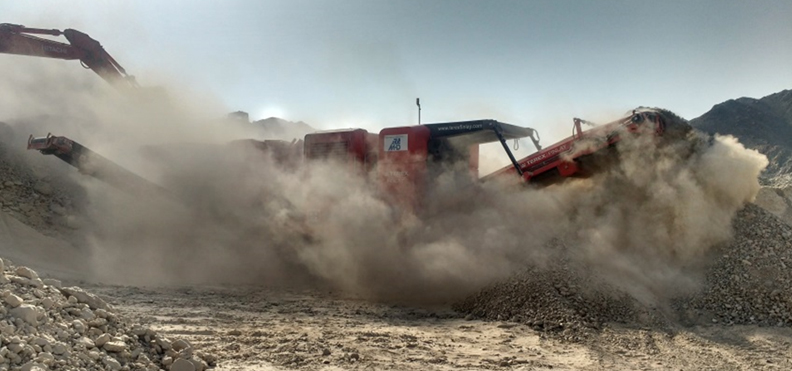

Terex Finlay I-140 Impact Crusher


Country: Oman

Product Options:

MATERIAL TYPE:



Gabbro Conglomerate



MATERIAL SPECIFICATION:

Primary Apron: 160mm

Secondary Apron: 70mm

High 2 Low blowbar configuration Martensitic Blow Bars

Download

Jobreport Terex Finlay I-140 Impact Crusher

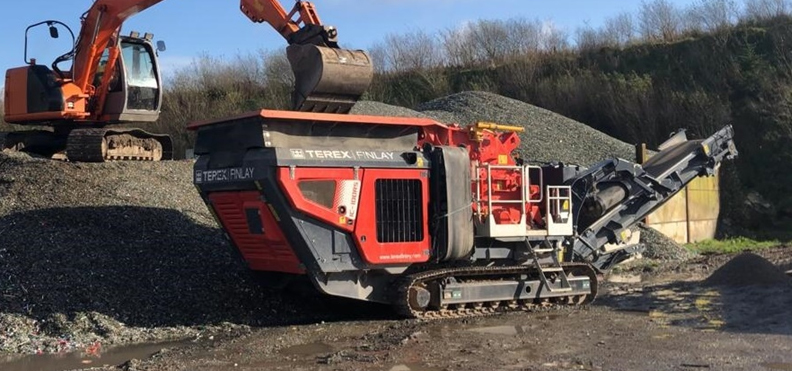

Terex Finlay IC-100 Impact Crusher


Country: Ireland

Product Options:

MATERIAL TYPE:

Glass from blue bin waste (100 mm)


MACHINE SPECIFICATION:

Primary Apron: 60mm

Secondary Apron: 20mm

High blowbar configuration Martensitic Blow Bars

Download

Jobreport Terex Finlay IC-100 Impact Crusher

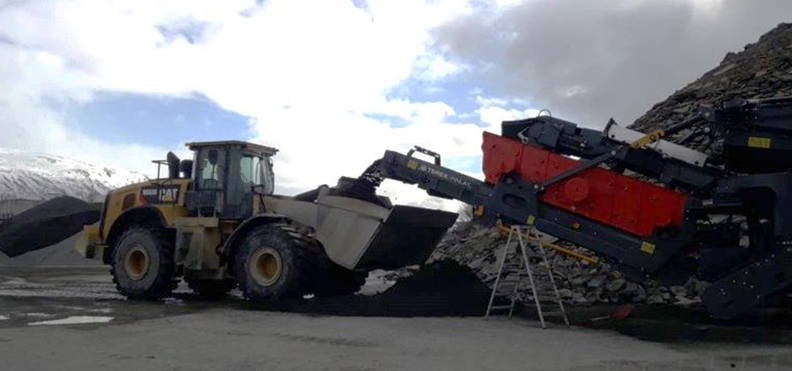

Terex Finlay I-120RS Impact Crusher


Country: Austria

Product Options:

MATERIAL RECYCLING:

Asphalt



MACHINE SPECIFICATION:

Primary = 110mm

Secondary = 40mm

2 High / 2 Low configuration Martensitic Ceramic insert Blow Bars

(RS mesh) Top = 40mm Bottom = 22mm

Download

Jobreport Terex Finlay I-120RS Impact Crusher

Terex Finlay I-140RS Impact Crusher


Country: Ireland

Product Options:

MATERIAL TYPE:

Limestone (Approx. 0-600mm)



MACHINE SPECIFICATION:

Primary = 80mm

Secondary = 40mm

2 High / 2 Low blowbar configuration Martensitic Blow Bars

(RS section mesh) 40mm

Download

Jobreport Terex Finlay I-140RS Impact Crusher

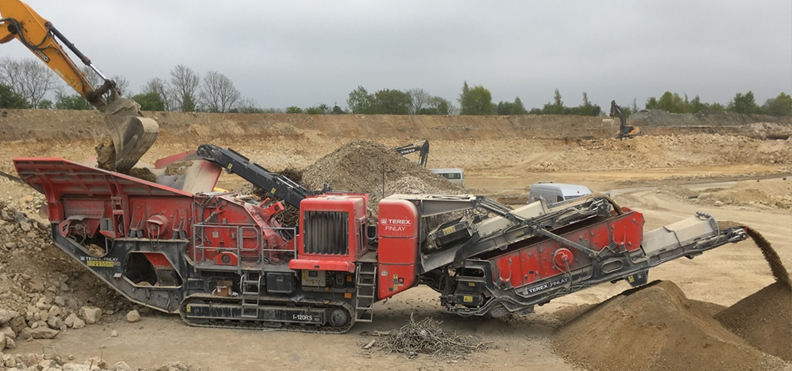

Terex Finlay I-120RS Impact Crusher (Concrete & Demolition)


Country: England

Product Options:

MATERIAL TYPE:

Concrete and Demolition waste


MACHINE SPECIFICATION:



Primary Apron: 120mm

Secondary Apron: 55mm

High 2 Low blowbar configuration Martensitic Blow Bars

(RS mesh) 50 mm

Jobreport Terex Finlay I-120RS Impact Crusher (Concrete & Demolition)

JOB-REPORTS: SCREENERS

Jobreport Screeners

Terex Finlay 696 3-Deck Inclined Screen


Country: Ireland

Product Options:

MATERIAL TYPE:

Blasted Limestone



MACHINE SPECIFICATION:

6.1m x 1.7m (20’ x 5’7”) All Decks

Top deck – 12mm square mesh

Middle deck – 7mm Flexi

Bottom deck – 4mm Flexi

Download

Jobreport Terex Finlay 696 3-Deck Inclined Screen

Terex Finlay 883+ (Triple Shaft) Scalping Screen


Country: Rotterdam Port, Netherlands

Product Options:

MATERIAL TYPE:

Iron Ore (wet, <90mm)



MACHINE SPECIFICATION:

4.8m x 1.53 (16’x5’) Both Decks

Top deck – 25mm square mesh

Bottom deck – 10mm Double Zig Zag (Diamond Flex)

2-way split configuration (Oversize from top and middle deck collected onto oversize conveyor)

Download

Jobreport Terex Finlay 883+ (Triple Shaft) Scalping Screen

Terex Finlay 674 Inclined Screen


Country: Ireland

Product Options:

MATERIAL TYPE:

Sand & Gravel



MACHINE SPECIFICATION:

100mm (4”) Hydraulic Tipping Grid

Top deck – 32mm square mesh

Middle deck – 16mm square mesh

Bottom deck – 5mm piano wires

Download

Jobreport Terex Finlay 674 Inclined Screen

Terex Finlay 694+ Inclined Screener


Country: Ireland

Product Options:

MATERIAL TYPE:

Limestone



MACHINE SPECIFICATION:

Top deck – 22mm square mesh

Middle deck – 12mm square mesh

Bottom deck – 6mm self cleaning mesh

Download

Jobreport Terex Finlay 694+ Inclined Screener
