694+
The Finlay® 694+ portable triple deck screener has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high ...

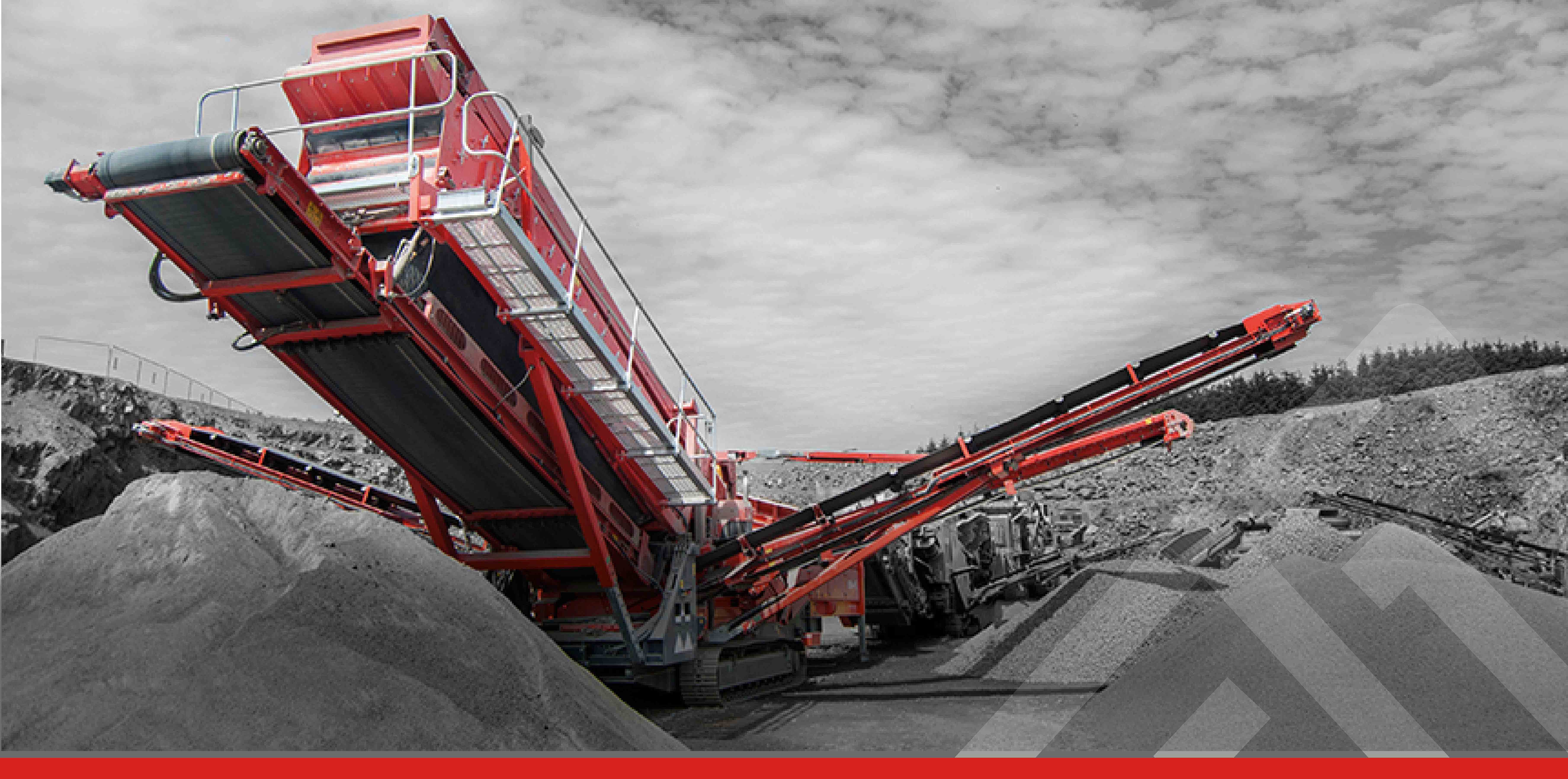

694+ Hybrid
Inclined Screen
The Finlay® 694+ Hybrid Inclined Screen offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The plant features a triple deck screen configuration providing three full sized 6.1m x 1.53m (20’ x 5’) screens.
An innovative hydraulically folded fourth (oversize plus) conveyor allows simple adjustment with variable tilt and slew discharge, between 18 degree and 30 degree, for recirculating in a closed circuit with a crusher or stockpiling of finished material.
Key Features:
- The plant’s electrically driven power system provide significant cost advantages and efficiencies.
- Superior performance in dusty applications and in high altitude environments.
- The triple deck 6.1m x 1.525m (20’ x 5’) screen box with full catwalk access is the largest and most accessible in it’s class.
- Maximum utilisation of three 6.1m x 1.525m (20’ x 5’) decks provide ultra-efficient screening capacities even at small aggregate sizes.
- Screen box angle can be hydraulically adjusted to an angle between 18° - 30°.
- T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
Downloads
Fines conveyor
Oversize / midgrade conveyors
Undercarriage
Screenbox
Oversize conveyor
Hopper / feeder
Main conveyor
T-Link Telematics
| Specification | Value |
|---|---|
| Net Engine Power | Tier 3 - Cat 130hp | Tier 4F / Stage V 131hp / Tier 3 - Cat 97kW | Tier 4F / Stage V 98kW |
| Screen | 20’ x 5’ / 6.1m x 1.53m |
| Weight | 88,184lbs / 40,000kg |
| Transport Dimensions | Height 11' 11'' | Width 9' 10'' | Length 64' 7'' / Height 3.65m | Width 3m | Length 19.7m |
| Working Dimensions | Height 19' 0'' | Width 60' 7'' | Length 68' 11'' / Height 5.8m | Width 18.45m | Length 21.01m |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
