J-1280 Hybrid
Jaw Crusher

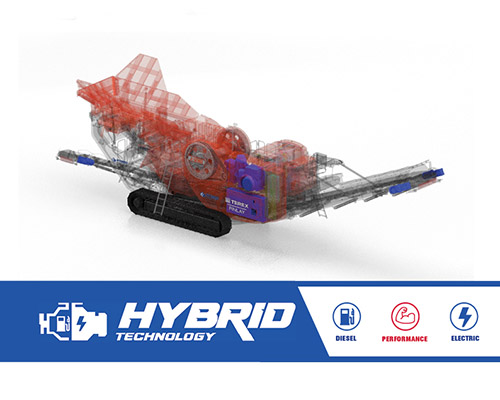

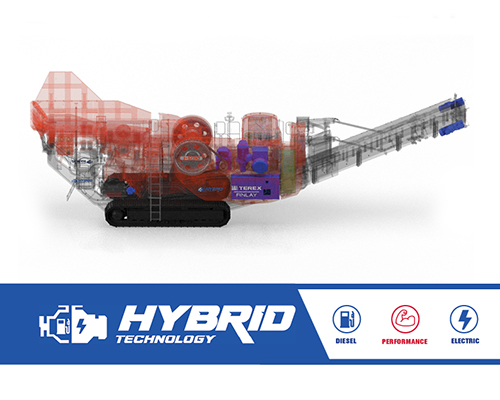

The Finlay® J-1280 Mobile Hybrid Jaw Crusher offers operators the flexibility to power the plant either by an onboard genset powerpack configuration or connected to an external power source. Both power options provide operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant.
The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains.
The machine incorporates a Terex® 1200 x 820mm (47” x 32”) high performance electrically driven single toggle jaw chamber. The integrated pan and heavy duty VGF feeder features automatic power monitoring to regulate and control material flow to the jaw chamber to prevent overflow and give optimum production in quarrying, mining, demolition and recycling applications.
Additional benefits include, rapid set up time, ease of maintenance, high reduction ratio, high output capacity and advanced electronic control system.
The machine is also available with an optional independent prescreen that incorporates a longer pan feeder and hopper side walls.
Key features:
- The plant’s electrically driven power systems provide significant cost advantages and environmental efficiencies.
- Superior performance in dusty applications and in high altitude environments.
- Automatic variable speed VGF ensures continuous choke feeding of the crushing chamber for optimal productivity.
- High powered electric drive ensures precise chamber controls and reverse functionality for clearing blockages and assisting in construction demolition, asphalt and recycling applications.
- T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
Downloads
.jpg?sfvrsn=3049e2ea_32 "Terex Finlay J-1280 Jaw Crusher (6)")
Hopper / Feeder
Jaw Chamber:
Main conveyor:
By-pass Conveyor (optional)
T-Link Telematics
Video Gallery
Terex Finlay J-1280 (Hybrid) Jaw Crusher
Terex Finlay J-1280 Hybrid Jaw Crusher
Image Gallery
| Specification | Value |
|---|---|
| Net Engine Power | Tier 2 - Scania 450hp | Stage V - Scania 450hp / Tier 2 - Scania 331kW | Stage V - Scania 331kW |
| Inlet Opening | 47” x 32” / 1200mm x 820mm |
| Operating Weight | 165,480lbs * est / 75,060kg * est |
| Transport Dimensions | Height 12' 6'' | Width 10' 3'' | Length 56' 1'' / Height 3.8m | Width 3.12m | Length 17.1m |
| Working Dimensions | Height 14' 9'' | Width 26' 5'' | Length 56' 1'' / Height 4.49m | Width 8.06m | Length 17.1m |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
