Heavy Duty Screens

Heavy Duty Screen being Fed by an Excavator

The Terex® Finlay range of tracked Heavy Duty Screens are versatile and efficient machines that can be operated in a wide range of primary and secondary screening applications. This range of machines offer operators great flexibility with the capability to select from a range of media options including abrasion resistant  punched plate, bofor bars, tines and a selection of heavy duty mesh sizes.

  • 893

    The Terex® Finlay 893 is a highly versatile and aggressive screener engineered and built for working in large scale quarrying, mining, construction and demolition debris, topsoil, recycling, sand, gravel, coal, ore and aggregate applications. The plant has the capacity to process at a rate of up to 800 tonnes per hour and can be fed either by a tracked mobile crusher, shovel or an excavator. The machine features an aggressive 6100mm x 1830mm (20’ x 6’) screenbox.

    Specification Value
    Net Engine Power Tier 3 - Cat 202hp | Tier 4F / Stage IV - Cat 73hp Tier 3 - Cat 151kW | Tier 4F/ Stage IV - Cat 129kW
    Screen 20’ x 6’ 6.1m x 1.83m
    Weight 106,000lbs 48,000kgs
    Transport Dimensions Height 11' 9'' | Width 9' 10'' | Length 58' 8'' Height 3.6m | Width 3m | Length 17.9m
    Working Dimensions Height 18' 5'' | Width 53' | Length 60' 8'' Height 5.6m | Width 16.15m | Length 18.3m

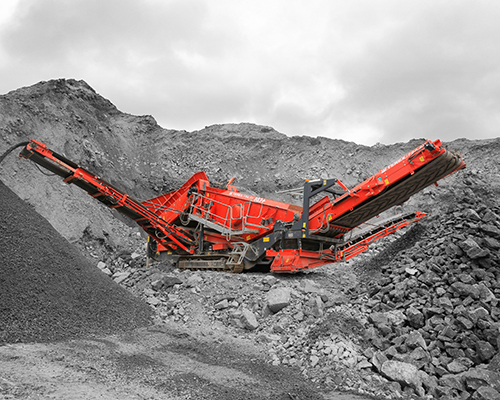

  • 883+

    The fourth generation Terex Finlay 883+ mobile screener has been developed as a high capacity and versatile heavy duty scalper to work in primary and secondary screening applications such as quarry and mining, iron ore, construction demolition waste, sand, gravel, compost, top soil and coal. The screenbox features two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

    Specification Value
    Net Engine Power Tier 3- Cat 112hp | Tier 4F / Stage IV - Cat 131hp Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 98kW
    Screen 16'' x 5'' 4.8m x 1.53m
    Weight 68,340lbs 31,000kg
    Transport Dimensions Height 11' 2'' | Width 9' 10'' | Length 48' 8'' Height 3.4m | Width 3m | Length 14.8m
    Working Dimensions Height 13' 1'' | Width 41' 4'' | Length 48' 8'' Height 4m | Width 12.6m | Length 14.8m

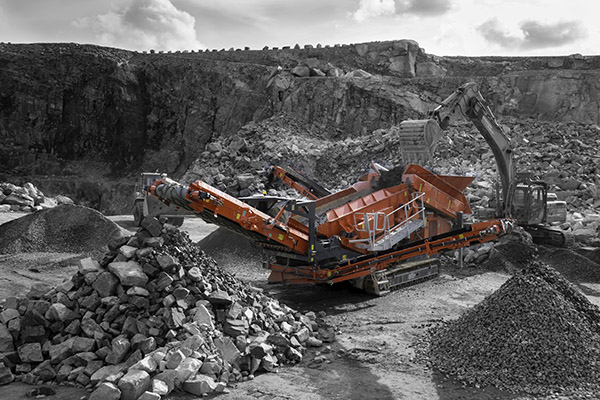

  • 883+ Triple Shaft

    The Terex® Finlay 883+ triple shaft mobile scalping screener is ideal for working in dry and sticky applications including quarry, mining, sand, gravel, construction and demolition debris and recycling applications. The screenbox features two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

    Specification Value
    Net Engine Power Tier 3 - Cat 113.3hp - Tier 4F / Stage IV - Cat 110hp Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 82kW
    Screen 16’ x 5’ 4.8 x 1.53m
    Weight 68,340lbs 31,000kg
    Transport Dimensions Height 11' 2'' | Width 9' 10'' | Length 48' 8'' Height 3.4m | Width 3m | Length 14.8m
    Working Dimensions Height 13' 1'' | Width 41' 4'' | Length 48' 8'' Height 4m | Width 12.6m | Length 14.8m

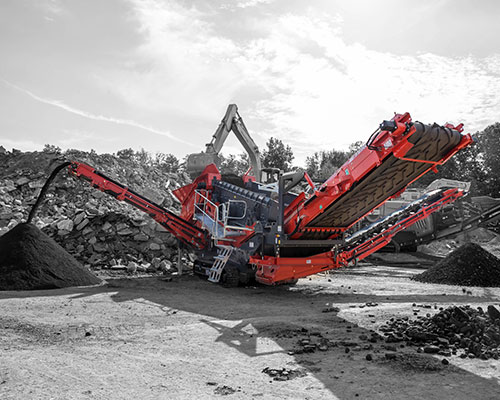

  • 883+ Spaleck

    The Terex Finlay 883+ Spaleck mobile scalping screen is the ultimate in mobile screening and separation technology. At the heart of the screen is the two deck German designed and constructed high performance recycling waste screen with Flip-Flow-Screen Elastica. The screenbox features two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

    Specification Value
    Net Engine Power Tier 3 - Cat 113.3hp - Tier 4F / Stage IV - Cat 110hp Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 82kW
    Screen 16' x 5’ 4.8m x 1.53m
    Weight 67,240lbs 30,500kg
    Transport Dimensions Height 13' 1'' | Width 9' 10'' | Length 48' 8'' Height 4m | Width 3m | Length 13.8m
    Working Dimensions Height 13' 1'' | Width 41' 4'' | Length 48' 8'' Height 4m | Width 12.6m | Length 14.8m

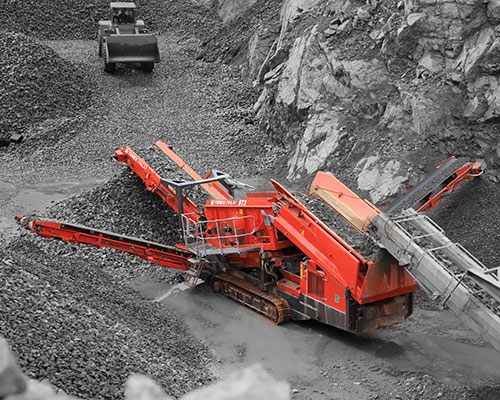

  • 873

    The Terex Finlay 873 mobile screener is ideally suited to working in aggregates, sand and gravel, top soil, construction demolition and recycling applications. This highly versatile machine can be fed either by a tracked mobile crusher, shovel or an excavator and has the capacity to process at a rate of up to 450 Tonnes per hour. The screenbox features two “true” full size 3.66m x 1.53m (12’ x 5’) screening decks.

    Specification Value
    Net Engine Power Tier 3 - Cat 130hp - Tier 4F / Stage IV - Cat 110hp Tier 3 - Cat 87kW- Tier 4F / Stage IV - Cat 82kW
    Screen 12'’ x 5’' 3.66m x 1.53m
    Weight 56,879lbs 25,800kg
    Transport Dimensions Height 11' 2'' | Width 9' 10'' | Length 45' Height 3.4m | Width 3m | Length 13.7m
    Working Dimensions Height 14' 9'' | Width 41' 4'' | Length 45' 7'' Height 4.5m | Width 12.6m | Length 13.9m

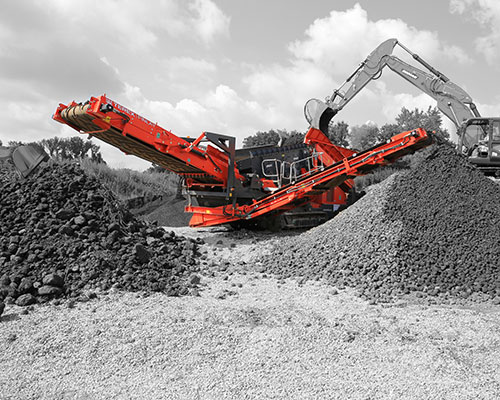

  • 873 Spaleck

    The Terex Finlay 873 Spaleck mobile scalping screen is the ultimate in mobile screening and separation technology. At the heart of the screen is the two deck German designed and constructed high performance recycling waste screen with Flip-Flow-Screen Elastica. The screenbox features two “true” full size 3.66m x 1.53m (12’ x 5’) screening decks.

    Specification Value
    Net Engine Power Tier 3 - Cat 111.3hp | Tier 4F / Stage IV - Cat 131hp Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 98kW
    Screen 12’' x 5’' 3.66m x 1.53m
    Weight 56,879lbs 25,800kg
    Transport Dimensions Height 11' 2'' | Width 9' 10'' | Length 45' Height 3.4m | Width 3m | Length 13.7m
    Working Dimensions Height 14' 9'' | Width 41' 4'' | Length 45' 7'' Height 4.5m | Width 12.6m | Length 13.7m
  • 863

    The Terex® Finlay 863 mobile screening plant is a compact and aggressive forward facing screen. This flexible and mobile plant can work in aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium. The screenbox features two “true” full size 2.76m x 1.22m (9’ x 4’) screening decks.

    Specification Value
    Net Engine Power Tier 3 - Deutz 66.2hp | Tier 4i/ Stage IIIB - Cat 74hp Tier 3 - Deutz 49.4kW | Tier 4i/ Stage IIIB - Cat 66.2kW
    Screen 9'' x 4'' 2.76m x 1.22m
    Weight 40,350lbs 18,300kg
    Transport Dimensions Height 10' 2'' | Width 8' 4'' | Length 31' 6'' Height 3.1m | Width 2.55m | Length 9.6m
    Working Dimensions Height 12' 8'' | Width 46' 93' | Length 39' 8'' Height 3.85m | Width 14.1m | Length 12.1m
  • 860

    The Terex® Finlay 860 tracked scalper is a compact and aggressive forward facing heavy duty screen. This highly versatile and flexible machine excels in primary and secondary screening applications such as aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium. The screenbox features 2.77m x 1.22m (9’ 1’’ x 4’) top deck and 2.68m x 1.22m (8’ 10’’ x 4’) bottom deck to give a total screening area of 6.7m² (72ft²).

    Specification Value
    Net Engine Power Tier 3 - Deutz 66.2hp | Tier 4 Final / Stage V - CAT 74hp Tier 3 - Deutz 49.4kW | Tier 4 Final / Stage V - CAT 55kW
    Screen 9’ 1’’ x 4’ 2.77m x 1.22m
    Operating Weight 36,817lbs 16,700kg
    Transport Dimensions Height 10' 1'' | Width 8' 2'' | Length 30' 3" Height 3.1m | Width 2.5m | Length 9.2m
    Transport Dimensions Height 12' 7'' | Width 46' 3'' | Length 36' 5" Height 3.8m | Width 14.1m | Length 11.1m
