Impact Crushers

Terex Finlay I120RS Impact Crusher

Terex Finlay offer a comprehensive range of Mobile Impact Crushers that excel in quarrying, mining, demolition and recycling applications. Combined with our after sales support the Finlay range of Impact Crushers can take your operation to the next level.

  • I-140

    The Terex® Finlay I-140 tracked impact crusher has an advanced technological design that gives improved material flow through the machine to produce precisely shaped cubical end products in quarrying, mining, demolition and recycling applications. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contact crushing operators. The machine is built around a robust direct drive Terex® CR032 Ø1270mm x 1220mm (Ø50” x 48”) impact chamber crusher.

    Specification Value
    Net Engine Power Tier 3 - Cat 540hp | Tier 4F / Stage IV - Scania 500hp Tier 3 - Cat 403kW | Tier 4F / Stage IV - Scania 364kW
    Rotor Size Ø50” x 48” Ø1270mm x 1220mm
    Operating Weight 107,410lbs 48,720kg
    Transport Dimensions Height 12' 8'' | Width 9' 1'' | Length 60' 5'' Height 3.8m | Width 3m | Length 18.43m
    Working Dimensions Height 15' 0'' | Width 24' 2'' | Length 58' 5'' Height 4.6m | Width 7.36m | Length 17.8m
  • I-140RS

    The Terex® Finlay I-140RS mobile impactor provides the flexibility of a tracked impact crushing and screening plant on one machine. The key component is the on-board detachable 4.8m x 1.5m (16’ x 5’) single deck screen. For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine. The recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product. The machine is built around a robust direct drive Terex® CR032 Ø1270mm x 1220mm (Ø50” x 48”) impact crusher.

    Specification Value
    Net Engine Power Tier 3 - Cat 540hp | Tier 4F / Stage IV - Scania 500hp Tier 3 - Cat 403kW | Tier 4F / Stage IV - Scania 364kW
    Rotor Size Ø50” x 48” Ø1270mm x 1220mm
    Operating Weight 159,394lbs 72,300kg
    Transport Dimensions Height 12' 5'' | Width 11' 5'' | Length 71' 2'' Height 3.8m | Width 3.47m | Length 21.7m
    Working Dimensions Height 19' 2'' | Width 26' 9'' | Length 70' 7'' Height 5.86m | Width 8.17m | Length 21.5m
  • I-120

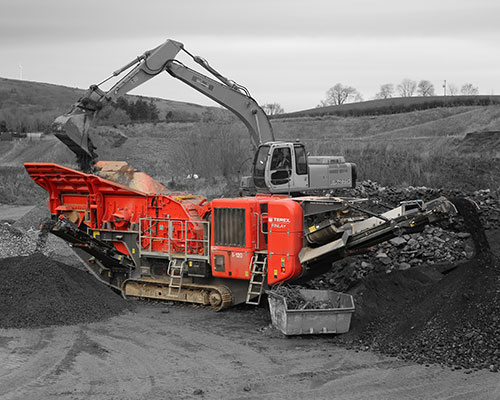

    The Terex® Finlay I-120 is a mid-sized track-mounted mobile impact crusher, commonly used for processing medium to hard natural aggregates and recycling materials such as asphalt, concrete and bricks. For operators in recycling and demolition applications the options of an underpan feeder and auto adjust on the chamber secondary apron are also available for the machine. The machine is built around a robust direct drive Terex® CR038 Ø1033mm x 1100mm (Ø41” x 44”) impact crusher.

    Specification Value
    Net Engine Power Tier 3 - CAT 375hp | Tier 4F / Stage IV - Scania 400hp Tier 3 - CAT 280kW | Tier 4F / Stage IV - Scania 292kW
    Rotor Size Ø41” x 44” Ø1033mm x 1100mm
    Transport Weight 81,571lbs 37,000kg
    Transport Dimensions Height 11' 2'' | Width 8' 6'' | Length 49' 10'' Height 3.4m | Width 2.6m | Length 15.2m
    Working Dimensions Height 13' 0'' | Width 18' 9'' | Length 48' 10'' Height 4.0m | Width 5.8m | Length 14.9m
  • I-120RS

    The Terex® Finlay I-120RS provides the flexibility of a portable impact crushing and screening plant on one platform. The on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen ensures a quality cubical product. For applications not requiring re-circulation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the plant. The machine is built around a robust direct drive Terex® CR038 Ø1033mm x 1100mm (Ø41” x 44”) impact crusher.

    Specification Value
    Net Engine Power Tier 3 - CAT 375hp | Tier 4F / Stage IV - Scania 400hp Tier 3 - CAT 280kW | Tier 4F / Stage IV - Scania 294kW
    Rotor Size Ø41” x 44” Ø1033mm x 1100mm
    Operating Weight 106,153lbs 48,150kg
    Transport Dimensions Height 15' 6'' | Width 19' 1'' | Length 59' Height 3.4m | Width 3.1m | Length 18m
    Working Dimensions Height 15' 6'' | Width 19' 1'' | Length 58' 6'' Height 4.7m | Width 5.8m | Length 17.8m
  • IC-110

    The Terex® Finlay IC-110 tracked compact impact crusher has been designed to provide high productivity in quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The impact chamber features variable rotor speed and hydraulic apron setting assist to provide convenient and efficient adjustment of the chamber aprons. It is also fitted with hydraulic overload protection system as standard. The machine is built around a robust direct drive Terex® Ø1034mm x 1000mm (Ø41.5” x 40”) impact crusher.

    Specification Value
    Net Engine Power Tier 3 - Volvo 315hp | Tier 4F / Stage V Volvo 315hp Tier 3 - Volvo 235kW | Tier 4F / Stage V Volvo 235kW
    Rotor Size Ø41.5” x 40” Ø1034mm x 1000mm
    Operating Weight 63,934lbs 29,000kg
    Transport Dimensions Height 10' 5'' | Width 8' 4'' | Length 32' 11'' Height 3.16m | Width 2.55m | Length 10m
    Working Dimensions Height 12' 2'' | Width 17' 1'' | Length 41' 5'' Height 3.7m | Width 5.2m | Length 12.62m
  • IC-110RS

    The Terex® Finlay IC-110RS mobile impactor provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. A key feature of the machine is the onboard 2.74m x 1.5m (9’ x 5’) single deck screen. For applications not requiring recirculation of oversize material back to the crushing chamber or stockpiling an oversize product the complete screening and recirculating system can be quickly detached from the machine. The machine is built around a robust direct drive Terex® Ø1034mm x 1000mm (Ø41.5” x 40”) impact crusher.

    Specification Value
    Net Engine Power Tier 3 - Volvo 315hp | Tier 4F / Stage V - Volvo 315hp Tier 3 - Volvo 235kW | Tier 4F / Stage V - Volvo 235kW
    Rotor Size Ø41.5” x 40” Ø1034mm x 1000mm
    Operating Weight 78,485lbs 35,600kg
    Transport Dimensions Height 10' 5'' | Width 9' 6'' | Length 48' 5'' Height 3.18m | Width 2.9m | Length 14.76m
    Working Dimensions Height 13' 6'' | Width 9' 6'' | Length 48' 1'' Height 3.18m | Width 2.9m | Length 14.66m
  • IC-100

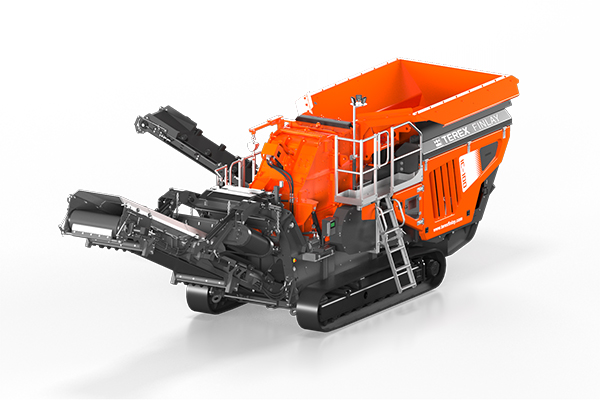

    The Terex® Finlay IC-100 compact impactor has been specifically designed for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The IC-100 provides operators with a compact and versatile machine that gives high material reduction ratios and produces a consistent product grading. The compact size, ease of transport, quick set up times and intuitive operation make this machine ideal for contract crushers, independent rental houses and small scale operators. The machine is built around a robust direct drive Terex® Ø860mm x 860mm (Ø34" x 34") impact crusher.

    Specification Value
    Net Engine Power Tier 3 - John Deere 260hp | Tier 4F / Stage V - Volvo 275hp Tier 3 John Deere 194kW | Tier 4 Final / Stage V - Volvo 205kW
    Rotor Size Ø 34” x33” Ø860mm x 830mm
    Operating Weight 52,250lbs 23,600kg
    Transport Dimensions Height 9' 10'' | Width 8' 1'' | Length 30' 7'' Height 3.0m | Width 2.5m | Length 9.32m
    Working Dimensions Height 10' 8'' | Width 16' 10'' | Length 37' 3'' Height 3.26m | Width 5.13m | Length 11.37m
  • IC-100RS

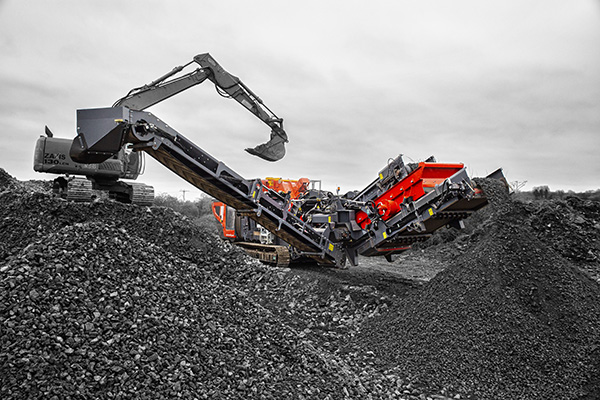

    The Terex® Finlay IC-100RS tracked impact crusher provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The onboard recirculating and 2.44m x 1.2m (8’ x 4’) single deck screen can be be quickly detached from the machine for applications not requiring recirculation of oversize material back to the crushing chamber. The recirculating conveyor can be rotated from closed loop configuration and utilized for stockpiling making an additional oversized product. The machine is built around a robust direct drive Terex Ø860mm x 860mm (Ø34" x 34") impact crusher.

    Specification Value
    Net Engine Power Tier 3 - John Deere 260hp | Tier 4F / Stage V - Volvo 275hp Tier 3 - John Deere 194kW | Tier 4F / Stage V - Volvo 205kW
    Rotor Size Ø34” x 33” Ø860mm x 830mm
    Operating Weight 64,595lbs 29,300kg
    Transport Dimensions Height 9' 10'' | Width 8' 4'' | Length 43' 9'' Height 3.0m | Width 2.55m | Length 13.3m
    Working Dimensions Height 12' 6'' | Width 16' 10'' | Length 43' 9'' Height 3.8m | Width 5.13m | Length 13.3m
