Conveyors

TC-14036-W

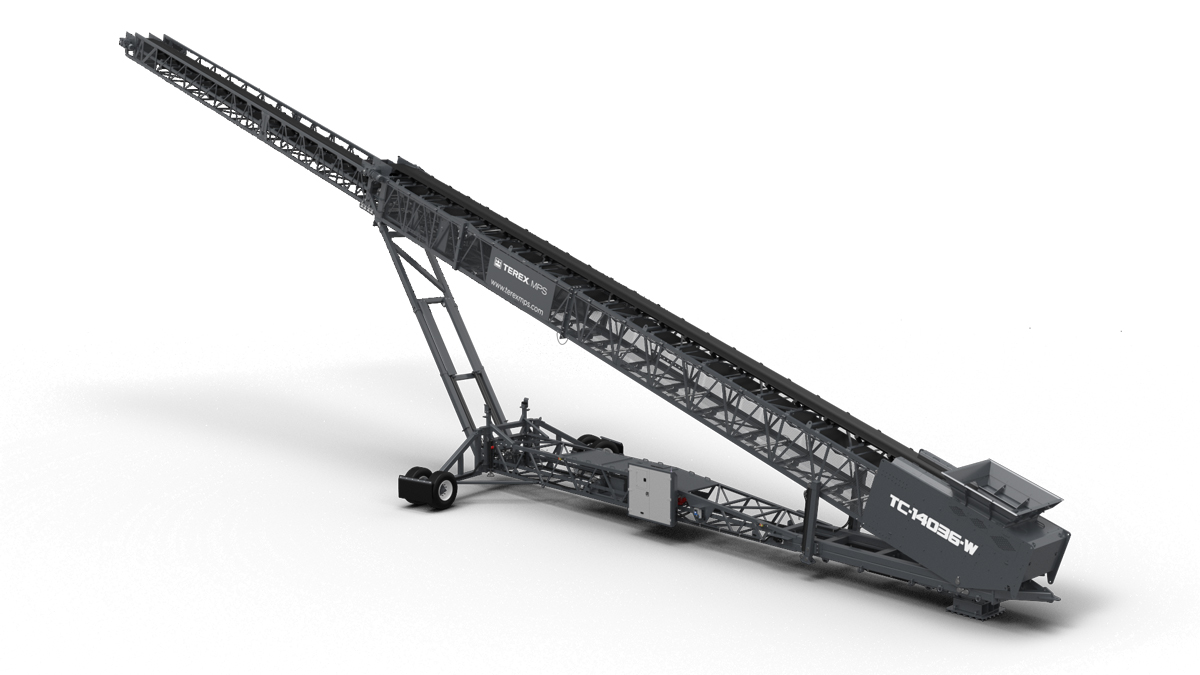

The TC-14036-W rotating telescopic conveyor has a working length of 42 metres, 270° of radial movement and is available in 400 TPH and 600 TPH options. The telescopic conveyor is available in pit portable or road towable variants, making the high quality machine suitable for almost all applications including sand & gravel, C & D waste, blasted rock overburden, river rock and processed ores/coal crushing. With a stockpile height of 14 metres and maximum stockpile capacity of 100,000 tonnes the TC-14036-W provides a heavy duty solution to bulk material handling.



Key Features

1. Telescopic up to 140ft (42m) long.
2. Fully electric drive.
3. Automated Stockpile Patterns -Radial Windrow, Inline
Windrow, Radial Conical, Inline Conical.
4. The belt adjusters are bolted in as opposed to welded.
5. Impact bars as standard at each side of the feed-boot bed.
6. Outer conveyor full length under-guards and side guard.
7. One hydraulic tank fitted for all specifications.
8. Lattice design.

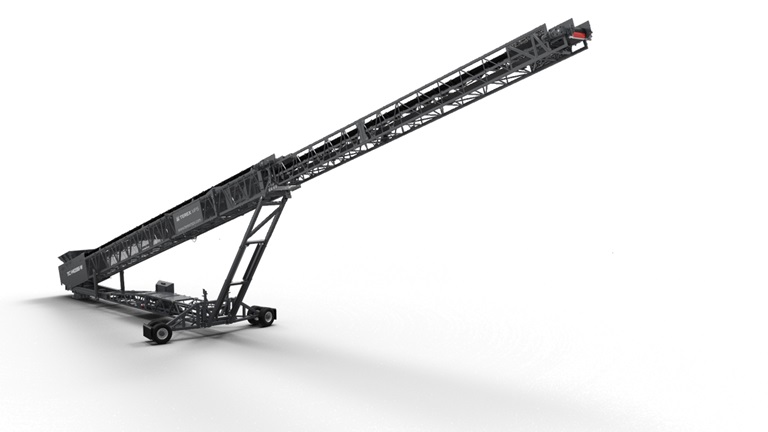

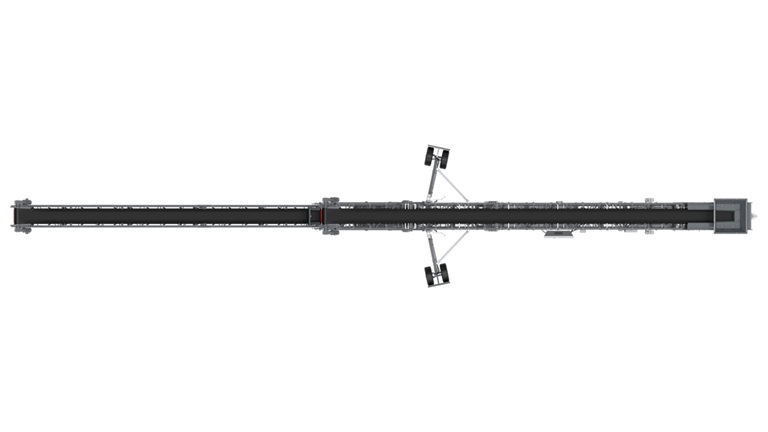

9. Pit Chassis multifunctional wheels.
10. Braked motor for radial function.

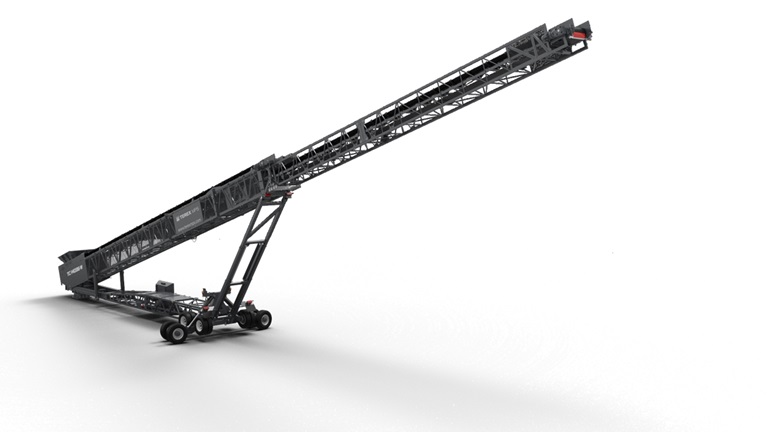

11. Road chassis version.
Contact Us
Sign Up
Find a Dealer

Technical Documentation

Productivity

Stockpile Capacity 72,920 yd³ @ 18° @ 270° 55,750 m³ @ 18° @ 270°
Rated Tonnage 400TPH (STD) 600TPH 800TPH (OPT)

Measurements

Max Discharge Height 14 ft 40 in 47 m 20 cm
Belt Width 36 inches 900 mm
Conveyor Length 140 ft 42 m
