Conveyors

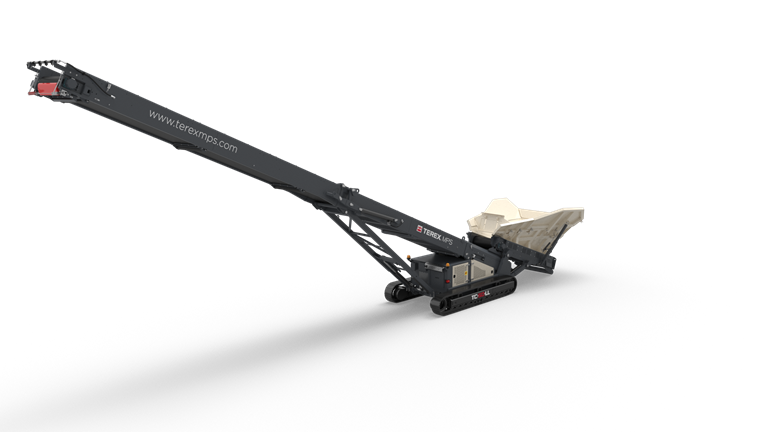

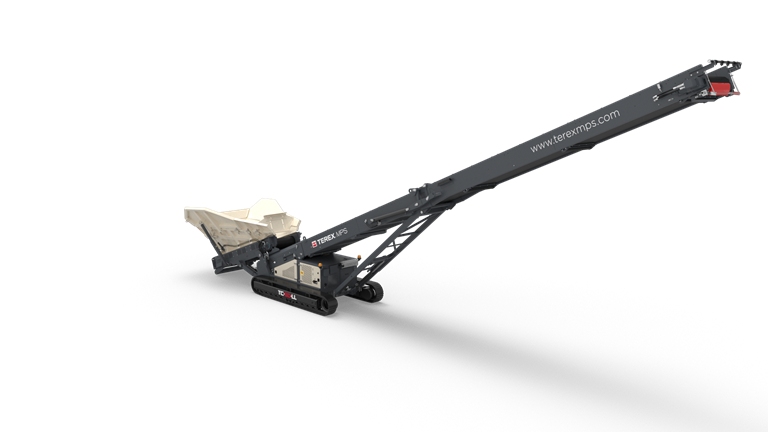

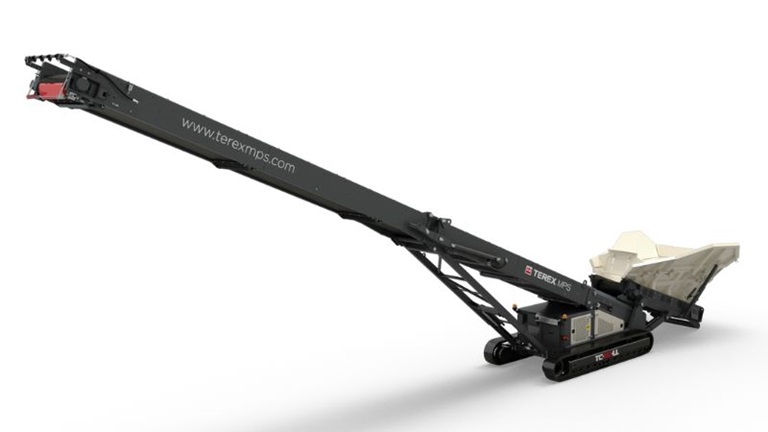

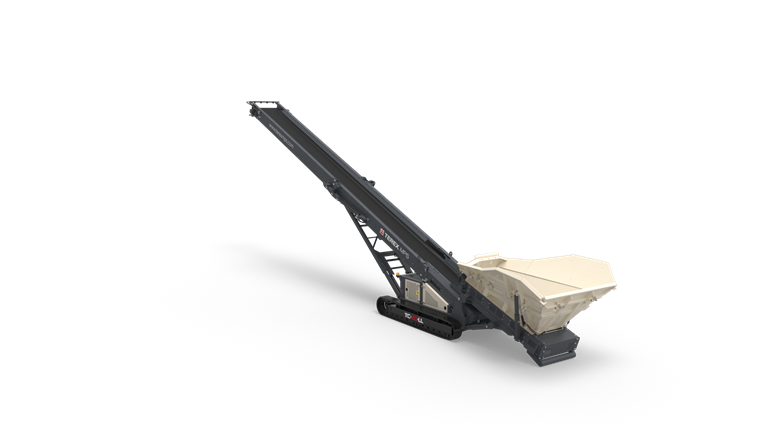

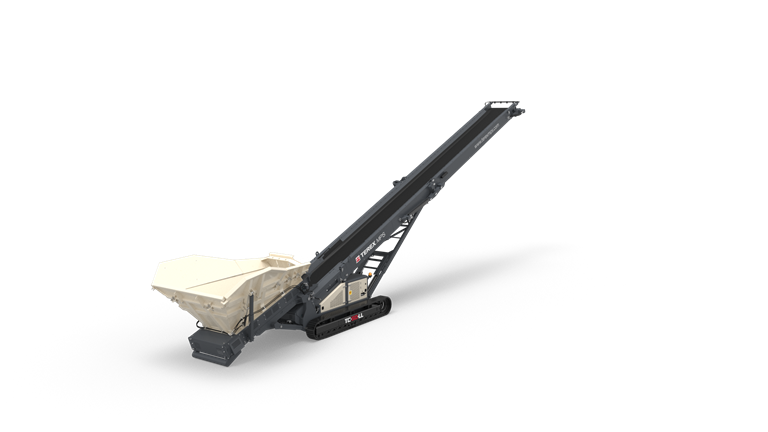

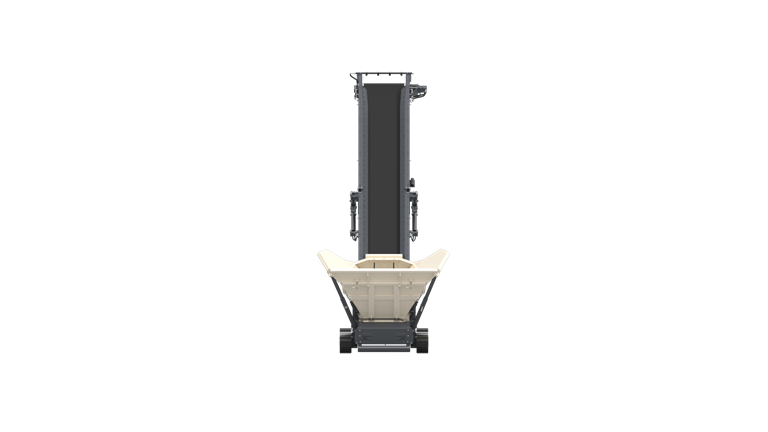

TC-50-LL

The TC-50-LL low-level feeder enables operators to discharge directly from wheel loaders and excavators at a much lower feed height than standard hopper feeders. This innovative hopper design allows for rear feeding, which can be beneficial when working in confined spaces.


Technical Documentation

Measurements

Belt Width 42 inches 1050 mm
Transport Width 9 ft 10 in 2 m 77 cm
Max Discharge Height 23 ft 80 in 7 m 20 cm
Transport Length 40 ft 10 in 12 m 20 cm
Conveyor Length 51 ft 20 in 15 m 60 cm
Transport Height 8 ft 40 in 2 m 55 cm

Productivity

Output Potential 469 450
