TX618HF

High Frequency Screen Plant

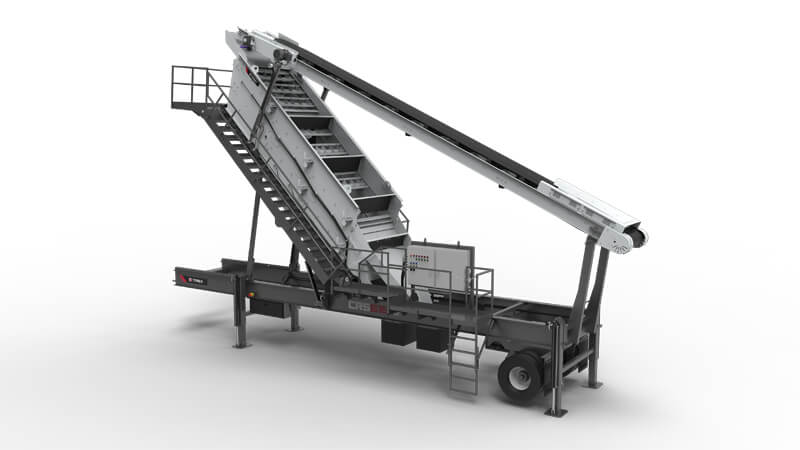

Simplicity TX618HF fine materials screen plant
The TX618HF features a 6'x18' high frequency incline screen specially engineered for fines material screening and incorporates a built in feed conveyor for easy incorporation into new or existing crushing and screening operations.
Specification Value
Weight 34,075 lbs / 15,456 kg
Transport Dimensions 47'1"x11'6"x13'6" (LxWxH) / 14351x3505x4115 mm (LxWxH)
Working Dimensions 45'x11'6"x30'8" (LxWxH) / 13716x3505x8433 mm (LxWxH)
Axles 1 Axle / 1 Axle
  • Simple sliding screen support leg allows (5) operation positions from 35º to 45º in 2.5º increments
  • Hinged service platform is level when screen is lowered
  • Self-aligning feed distribution plate requiring no adjustments to change slope
  • Conveyor support telescopes when screen lowered for maintenance
  • Pinned sliding support leg
  • Rubber booted discharge chutes
  • Dual - Top deck flop gates
  • CCM Automatic control panel with 3 x 25hp off plant motor controls included
