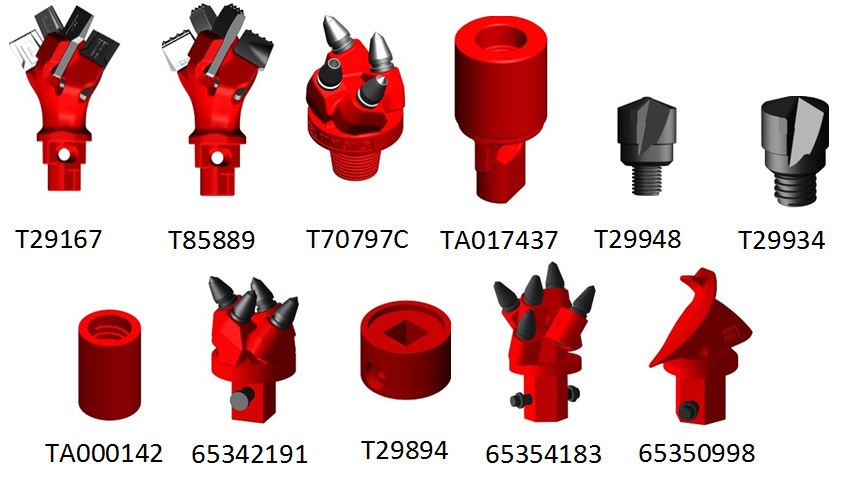

Optional Pilot Bits & Adapters

OptionalPilot

Part number

Code

Description

T29167

TX50D

Cast steel, replaceable TX50 & TX52 hardened steel teeth (T29171 & T29429).
For dirt, compacted soil, stiff clay, fracturable material & gravel application.
7-1/2” Cut diameter.
Includes hardware PN T42675 & T5973.


T85889

TX50C

Cast steel, replaceable TX50 & TX52 hardened steel teeth (TA029225 & TA029400).
For fractured & non-fracturable material, hard pan, frozen soil, cement, limestone & conglomerates application.
7-1/2” Cut diameter.
Includes hardware PN T42675 & T5973.

T70797C

TPB1

Optional on BTA series augers.
2-5/8” API Threads
Four replaceable C10 teeth (65349085)
5-1/4” cut diameter.

TA017437

TXBA9

Adapter, pilot bit. Bolts directly to boring head and allows use of all 2-5/8” API pin pilot bits.
Includes hardware PN T42675 & T5973.



T29948

CP-16

Pilot bit, 2” cut with 1” NC thread

T29934

TXCP-18

Pilot bit, 2” cut with 1-1/4-5 Acme threads.

TA000142

CP-18 Collar

Pilot chuck, 1-1/4-5 STPE

65342191

TPB1-1-3/4”

BTA series augers
Four replaceable C10 teeth (65349085)
1-3/4” square shank
5-1/4” cut diameter

T29894

TBA-175

Sub, 1.75” square collar

65354183

SPIRAL HEX

BTA series augers
Six replaceable C30 teeth (TA001537)
2-5/8” hex shank
8-1/2” cut diameter
Use with 65343434 sub

65350998

DIRT PILOT

BTA series augers Fishtail bit, 2-5/8” hex shank

Other configurations available upon request.
