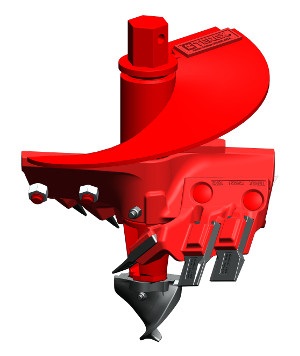

Interchangeable Head Auger (ICH) TX series (TXICH)

TXDICHA
This series of Augers has bolt on shank plate design. Standard flighting on Terex® Interchangeable TX series (TXICH) are as follows:
  • 5/16" thick for 30" diameter and smaller.
  • 1/2" thick for diameter larger than 30"

Standard components are as follows:

  • TXD
    • TX50 (P#T29171) dirt teeth
    • TX52 (P#T29429) dirt teeth.
    • TX205 (P#T29168) pilot bit.
  • TXC
    • TX56 (P#TA029225) carbide teeth.
    • TX52 (P#TA029400) carbide teeth
    • TX205C (P#T29665) pilot bit.
  • TXCS
    • TX87 (P#65356898) bullet teeth.
    • C6-1/2-87 (P#T29936) pilot bit.

Application


Terex® TXD Series digger derrick dirt augers are manufactured to improve the drilling performance of digger derricks, for loose and compacted soils, stiff clays and soft shale. The optional TX50D (P#T29167) pilot bit greatly increases the performance of the TXD auger.



Terex® TXC Series digger derrick carbide augers are manufactured to improve the drilling performance of digger derricks, for loose and compacted soils, stiff clays, shale, cobbles, and medium rock strata. The optional TX50C (P#T85889) pilot bit greatly increases the performance of the TXC auger.



Terex® TXCS Series digger derrick rock augers are manufactured to improve the drilling performance of digger derricks, in limestone, medium sandstone, frozen materials, and medium to hard formations.



Diameter

Part number

TXD

18"

65353803

20"

65353804

22"

65354120

24"

65353805

TXC

18"

65352115

20"

65351943

22"

65354119

24"

65353802

26"

65357500

32"

65357502

TXCS

18"

65357578

Other configurations available upon request.
