Bullet, .74, TC20 Series

C20BulletSeries

Part Number

Code

Application

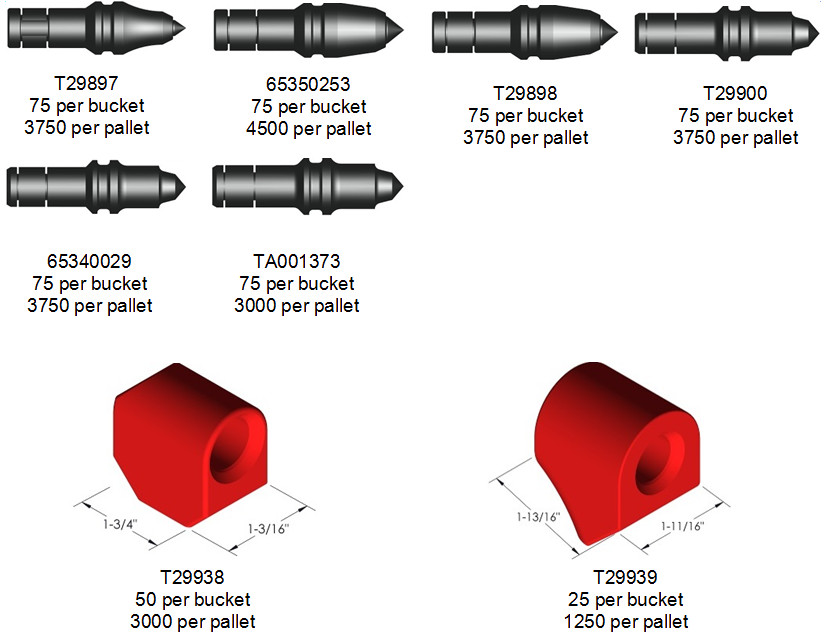

T29897

C21 KM

For most cutting applications. Especially good in soft to medium-hard material. Carbide tip (5/16” dia.) for fast penetration. Short Retainer.

65350253

RC21HD TX

Heavy duty design for extremely hard rock and concrete. Carbide tip (1/2” dia.) provides long tool life. Short Retainer.

T29898

C21HD KM

Heavy duty design for extremely hard rock and concrete. Carbide tip (1/2” dia.) provides long tool life. Short Retainer.

T29900

C23 TX

Drilling and core-barreling in soft to medium-hard rock with abrasive cutting conditions. Short Retainer.

65340029

C23 KM

Drilling and core-barreling in soft to medium-hard rock with abrasive cutting conditions. Short Retainer.

TA001373

RB23 KM

Soft to medium-hard rock with abrasive conditions. Short Retainer.

T29901

C24 KM

Drilling soft material. Sharp nose tip for high penetration.

Short Retainer.

T29938

RC20 TX

45° mounting surface thinner width allows closer block placement in restricted areas. Welded with 7018 or 8018 low-hydrogen rod.

T29939

C20HD KM

45° mounting surface heavier block design than the C20 block. Welded with 7018 or 8018 low-hydrogen rod.
