Bullet, Step, TC4 Series

C4BulletSeries


C4BulletSeries2

Part number

Code

Application

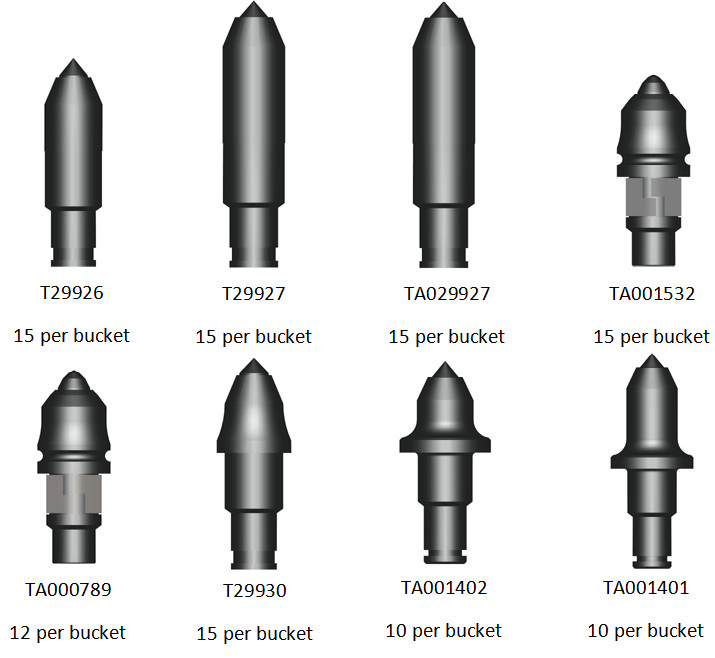

T29926

C4/U44 KM

For large diameter extra heavy duty style augers. Hard Rock conditions.

T29927

C4-1 KM

For large diameter extra heavy duty style augers; deep cutting applications. Medium Rock conditions.

TA029927

C41 TX

For large diameter extra heavy duty style augers.

TA001532

RCDS05

For drilling and tunnel boring in the most extreme hard rock and concrete.

TA000789

DS05 KM

For drilling and tunnel boring in the most extreme hard rock and concrete.

T29930

C7 KM

For most cutting conditions. No collar.

TA001402

RC4SSF TX

For drilling in soft to medium-hard abrasive cutting conditions. Snap ring attached.

TA001401

RC4LSF TX

For medium to hard drilling conditions with added collar to prevent material from entering block and stopping tooth rotation.

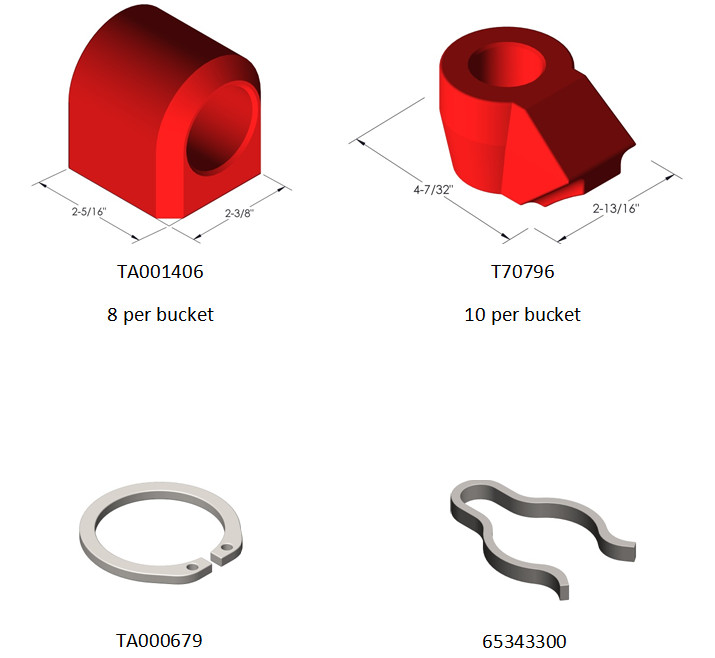

TA001406

RC4F TX

For buckets, barrels, and special applications. Welded with 7018 or 8018 low-hydrogen rod.

T70796

RC4 TX

45° mounting surface heavy duty design accepts all step shank tools. Welded with 7018 or 8018 low-hydrogen rod.

TA000679

Snap Ring

C4 Teeth Snap Ring

65343300

Retainer Clip

Push on Retainer Clip
