FM RANGE

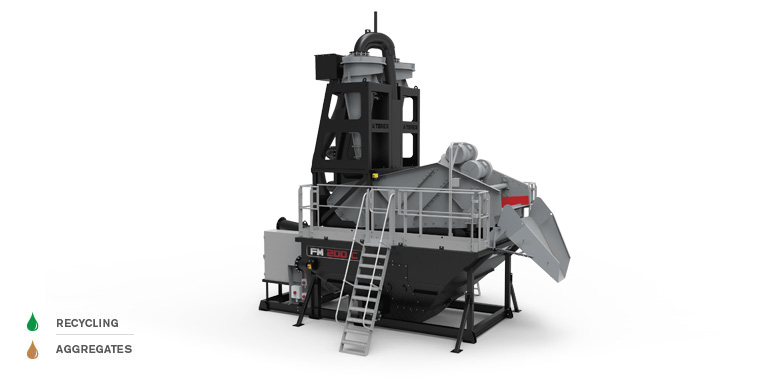

FM COMPACT - FM 20 C / FM 60 C / FM 120 C / FM 120 2G / FM 200 C

FM-Range

The Terex® FM Compact range are static sand recovery units designed to be both cost and energy efficient. The range uses centrifugal force within the cyclone(s) to remove clay, silt and slime from sand to bring it into specification. The range combines a collection tank, centrifugal slurry pump(s), hydrocyclone(s) and a dewatering screen on a single chassis.

KEY FEATURES

  • Can recover 1 or 2 grades of sand from wet feed or bolt-on boiler box option for direct dry feed
  • Maximum recovery of saleable material through the removal of silt, slimes and clays below 75μm (200 mesh)
  • Robust easy to assemble steel construction complete with galvanized walkway & handrails provide easy access

FM ULTRAFINES

The Terex® FM UltraFines™ is a crucial step in efficient management and recovery of ultrafines sand from waste water streams, produced from washing processes.
This ultra-fines recovery unit can process up to 450m3 per hour of slurry recovering material as low as 40 micron, thus reducing the volume of solids reporting to storage ponds or water treatment plants.
Bringing together a centrifugal pump, a cluster of 4 hydrocyclones and a high frequency dewatering screen on one chassis. The FM UltraFines™ also boasts a uniquely designed conical tank and anti-turbulence system, which is essential in the process of ultra-fines recovery.

KEY FEATURES

  • Large volume conical tank with bolt on sides
  • Removable chassis cover panels for improved serviceability
  • Accessible lined pump and motor
  • Cyclone array with easy access catch boxes

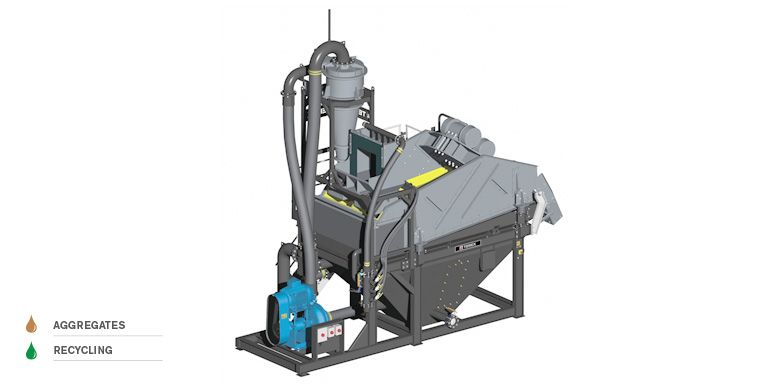

FM DIRECT FEED - FM 60DF / FM 200DF

fm-direct-feed

The FM Direct Feed allows economical washing and sand processing to happen on a very small footprint. The unit is suitable for pre-screened material with minimum oversize and is especially suited to dust washing applications.
The FM Direct Feed is a compact sand plant that works on the principle that a dry pre-screened feed is delivered to the wash box equipped with a high pressure spray bar to pre-soak the feed before being delivered to the screen.
It has been introduced for applications where the percentage of oversize in the feed material is minimum.

KEY FEATURES

  • Can produce 1 rinsed aggregate and 1 grade of sand (or 1 coarse sand and 1 fine sand)  from a single dry feed material
  • Maximum recovery of saleable material through the removal of silt, slimes and clays below 75μm (200 mesh)
  • Robust easy to assemble steel construction complete with galvanized walkway & handrails providing easy access

FM 120 CONEXUS

Modular sand classification, dewatering and water recovery unit, with ability to produce 2 quality sand.

KEY FEATURES

  • Modular sand classification, dewatering and water recovery unit
  • Small plant footprint
  • Automated control system
  • Quick setup
  • Produce up to 2 washed sands

FM BUCKET WHEEL - FM 60 BW / FM 120 BW / FM 200 BW

The Terex® FM Bucket Wheel range of sand classification systems are highly efficient dewatering units.
The unit removes silts, slimes and clays from sand to produce up to 2 saleable products in applications including concrete, mortar and asphalt sands, quarry dust/crushed fines, lake and beach sands, silica sand, golf course sands, filter bed sands, recycled materials and iron ore.
The range combines a dewatering bucket wheel(s), a centrifugal slurry pump, hydrocyclone(s), a collection tank and a dewatering screen on a single chassis.

KEY FEATURES

  • Can recover 1 or 2 grades of sand from wet feed or bolt-on boiler box option for direct dry feed
  • Maximum recovery of saleable material through the removal of silt, slimes and clays below 75μm (200 mesh)
  • Variable speed bucket wheel processes 80-90% of material, reducing wear on the rubber lined pumps & cyclones
  • Major reduction in fine material discharging to the water management system, thus reducing recovery cycle and cost
