Our range of High Speed Shredders are designed and manufactured with a focus on flexibility, durability and sustainability.
The TBG 620 is a powerful, compact and flexible High Speed Shredder that can be utilised for various shredding tasks. It has the flexibility to meet different material specifications without the need to change screens.
The TBG 630 is the ultimate processing machine for medium to large scale biomass and green waste processors. Powered by a 661HP V8 Scania engine, it has been designed to give operators unrivalled production rates and ease of maintenance.
The TBG 620 is a powerful, compact and flexible High Speed Shredder that can be utilised for various shredding tasks.
| Specification | Value |
|---|---|
| Infeed Dimensions | 1'5" high x 4'11" wide 450mm x 1,500mm |
| Rotor Dimensions | Ø40" x 60" wide Ø1,040mm x 1,530mm |
| Engine | Scania DC13 500HP Tier 4 Final Scania DC13 368kW Tier 4 Final |
| Weight | 44,093lbs 20,000kg |

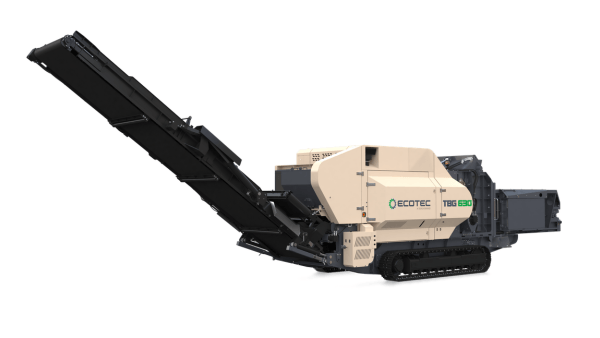

The TBG 630 High Speed Shredder is the ultimate processing machine for medium to large scale biomass and green waste processors
| Specification | Value |
|---|---|
| Infeed Dimensions | 2'7" high x 5'7" wide 780mm x 1,700mm |
| Engine | Scania DC16 670HP Stage V Scania DC16 500kW Stage V |
| Engine | Scania DC16 661HP Tier 4 Final Scania DC16 493kW Tier 4 Final |
| Engine | Scania DC16 690HP Stage II Scania DC16 515kW Stage II |
| Weight | 78,485lbs 35,600kg |
