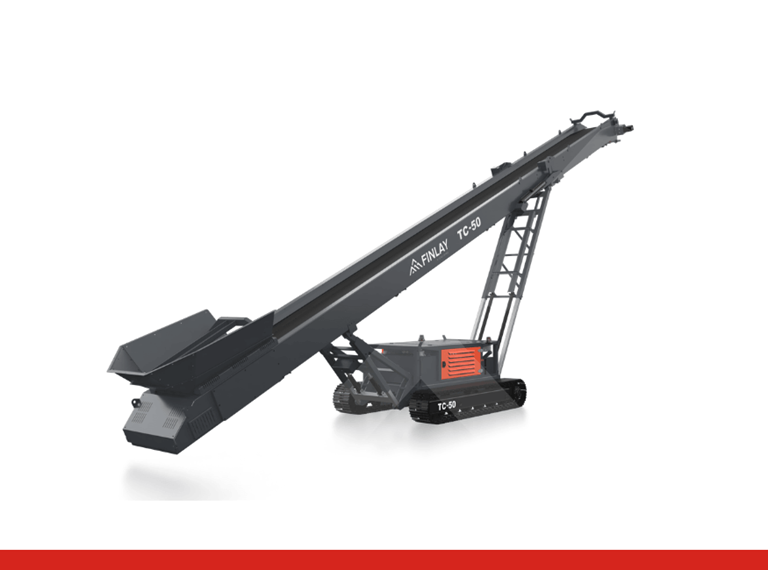

TC-50

The Finlay® TC-50 is a compact yet powerful tracked conveyor, engineered for efficient material handling and stockpiling. With a 50-foot conveyor length, low feed height, and robust build, it offers a high throughput of up to 500 TPH and is ideal for applications where space and flexibility are key.

Key Features:

  • Stockpile capacity up to 613.8 m³ (802.8 yd³) with variable discharge height up to 6.93 m (22’ 9”)
  • 900 mm (36”) wide conveyor belt with plain or optional chevron configuration
  • Efficient CAT engine options with Stage V compliance (37kW)
  • Hydraulic folding head section, full side skirting, and impact bars on tail section for durability
  • Remote control tracking, galvanised legs, and compact transport dimensions for easy relocation
  • Optional extras include dual power setup, feedboot liners, and heavy-duty belt upgrades
Request a Quote

Technical Documentation

Power

Net Engine Power: Tier 4 / Stage V CAT C1.7 50 Hp / CAT C2.8 74 Hp CAT C1.7 37 kW / CAT C2.8 55 kW
Net Engine Power: Tier 3 CAT 2.2 50 hp CAT 2.2 37 kW

Measurements

Transport Weight 17,600 lbs 8,000 kg
Conveyor Length 50 ft 15 m 24 cm
Belt Width 36 in 900 mm
Max Discharge Height 22 ft 9 in 6.9 m
Max Capacity 802.08 Cu Yd 613.08 m3

Productivity

Output Potential 331 US tph 300 tph
