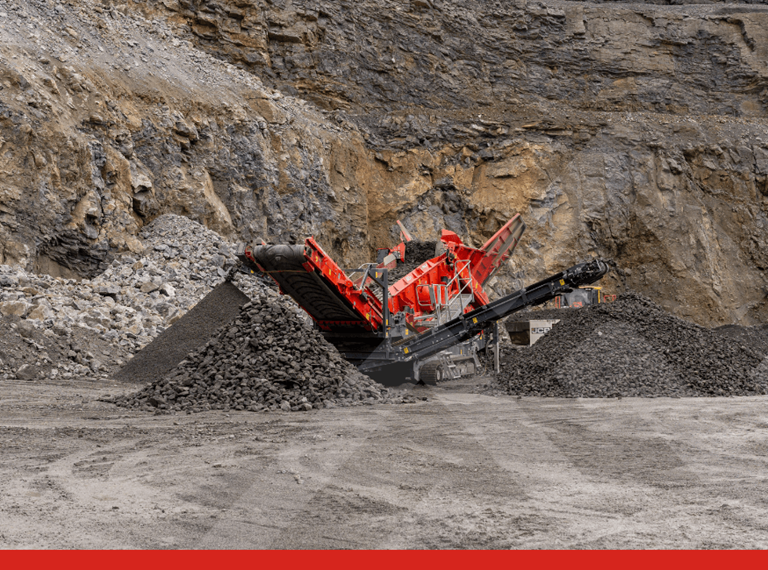

883+ Electric

The Finlay® 883+ Electric Scalper has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.

In operational mode the plant’s electrical drive system powers the feeder, screenbox and all conveyors without compromising on performance and flexibility in applications.

For ease of transport the machine is fitted with an onboard engine that can be engaged for powering the tracks to enable movement around the job site.

As the world moves towards a more environmentally friendly future investing in electric powered equipment can position your business to a long-term sustainability and compliance with changing regulations.



Key Features:

  • Significant reduction in operating costs by powering from grid electricity.
  • Reduced carbon footprint with the elimination of Co2 gas emissions and reduction in engine noise when operating in both urban and indoor environments.
  • Electric powered equipment typically require less maintenance than diesel counterparts reducing maintenance costs.
  • Maximised machine availability and uptime as scheduled service interval periods are longer.
  • Electric screeners are more energy-efficient and cost effective to operate compared to diesel powered screeners.

Technical Documentation

Productivity

Output Potential 661 US tph 600 tph

Measurements

Screen 16'' x 5'' 4.8m x 1.53m
Transport Width 9 ft 10 in 3 m 10 cm
Weight 70,327 lbs 31,900 kg
Transport Height 11 ft 2 in 3 m 40 cm
Working Dimensions Height 15' 9'' | Width 41' 12'' | Length 49' 2'' Height 4.8m | Width 12.8m | Length 14.98m
Transport Length 49 ft 4 in 14 m 95 cm

Power

Net Engine Power: Tier 4F / Stage V DEUTZ TCD 3.6L4 - 123 Hp Dual Certified DEUTZ TCD 3.6L4 - 92 kW Dual Certified
Net Engine Power: Tier 3 / LRC CAT C4.4 - 130 hp CAT C4.4 - 97 kW
Net Engine Power: Tier 3 CAT C4.4 - 111.3 hp CAT C4.4 - 83 kW
Power Unit CAT 2.2 55KW (75HP) - Covers all regions CAT 2.2 55KW (75HP) - Covers all regions
