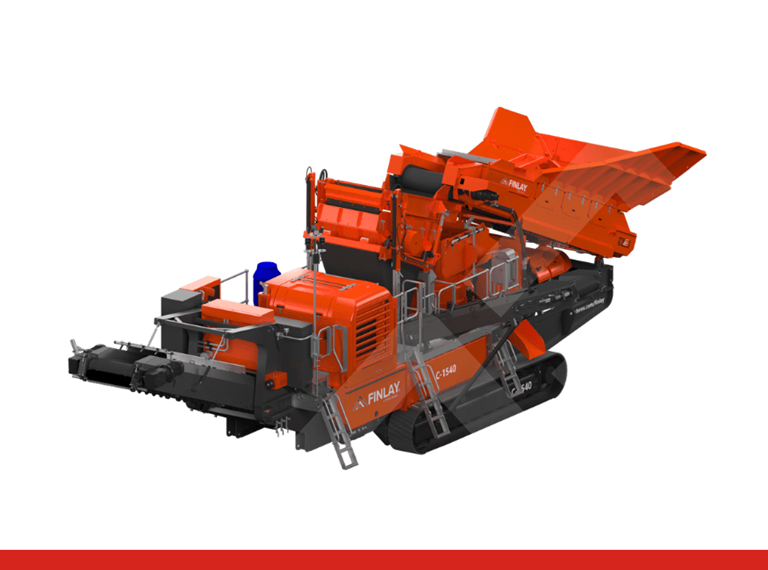

C-1540 Electric

The Finlay® C-1540 electric cone crusher has been designed to meet the needs of customers for whom electricity is the

preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the electricity grid or a secondary electrical power source.

The plant’s electrically driven power systems and crushing chamber provide significant cost advantages and efficiencies without compromising on performance and versatility.

For ease of transport and flexibility the machine is fitted with an onboard engine that can be engaged to power the tracks to enable movement around the job site.

As the world moves towards a more environmentally friendly future investing in electric equipment can position your business to a long term sustainability and compliance with changing regulations.

Key Features:

  • Significant reduction in operating costs by powering from grid electricity.
  • Reduced carbon footprint with the elimination of Co2 gas emissions and reduction in engine noise when operating in both urban and indoor environments.
  • Electric powered equipment typically require less maintenance than diesel counterparts reducing maintenance costs.
  • Maximised machine availability and uptime as scheduled service interval periods are longer.
  • Electric crushers are generally more energy-efficient and cost effective to operate compared to diesel powered crushers.

Technical Documentation

Measurements

Weight 72,973 lbs incl. Options 33,100 kg incl. Options
Cone Head Diameter 40 in 1,000 mm

Productivity

Output Potential 254 US tph 230 tph

Power

Net Engine Power: Tier 4F / Stage IV Scania DC09 350 hp Scania DC09 257 kW
Net Engine Power: Tier 3 / Stage IIIA CAT C9.3B 335 hp CAT C9.3B 250 kW
Net Engine Power: Stage V Scania DC09 350 hp Scania DC09 257 kW
