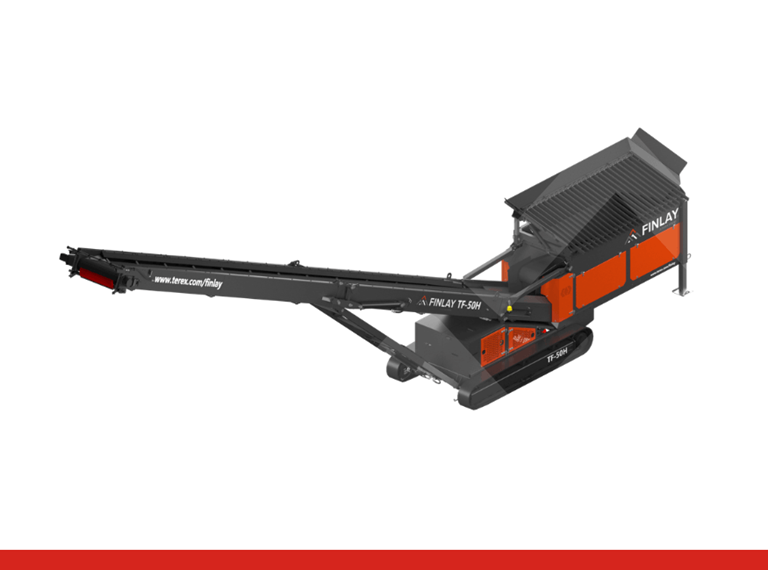

TF-50H



The Finlay® TF-50H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types.

The large hopper/feeder has a capacity of 4.2m3 (5.5yd3) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a ‘metered or controlled’ feed of material.

The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons.

Key features:
  • The pinless deployment of the main conveyor creates a safer working environment and enables rapid on site set up and tear down.
  • Hydraulic variable speed control of the feeder ensures efficient transfer from the hopper to the main discharge conveyor.
  • The machine features a 15.6m (51’ 2”) discharge conveyor that has the capacity to transfer up to 450tph (US 495tph) of material.
  • Maximum stockpile capacity based on 37° angle of repose: 932 tonnes (1027 US tonnes).
Request a Quote

Technical Documentation

Productivity

Output Potential 496 US tph 450 tph

Measurements

Max Discharge Height 23 ft 8 in 7.2 m
Transport Length 39 ft 11 in 12 m 16 cm
Transport Height 8 ft 4 in 2 m 55 cm
Belt Width 42 in 1,050 mm
Conveyor Length 51 ft 2 in 15 m 6 cm
Transport Width 7 ft 6 in 2 m 29 cm

Power

Net Engine Power: Tier 3 / Stage IIIA CAT C4.4 - 83 hp CAT C4.4 - 62 kW
Net Engine Power: Tier 4F / Stage V CAT C 2.2 74 Hp Dual certified CAT C 2.2 55 kW Dual certified
