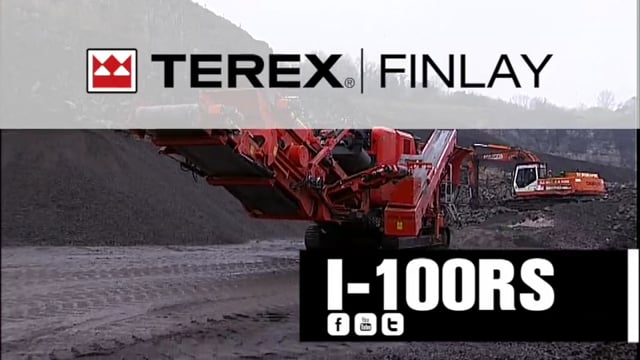

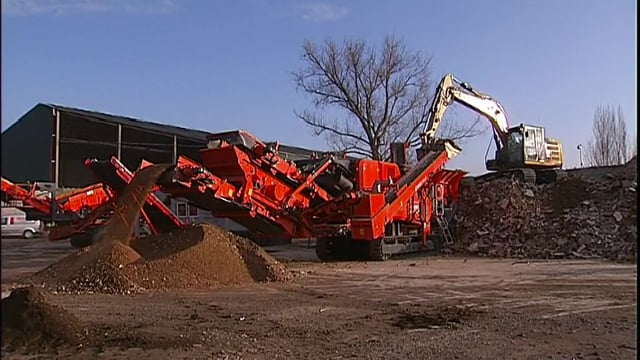

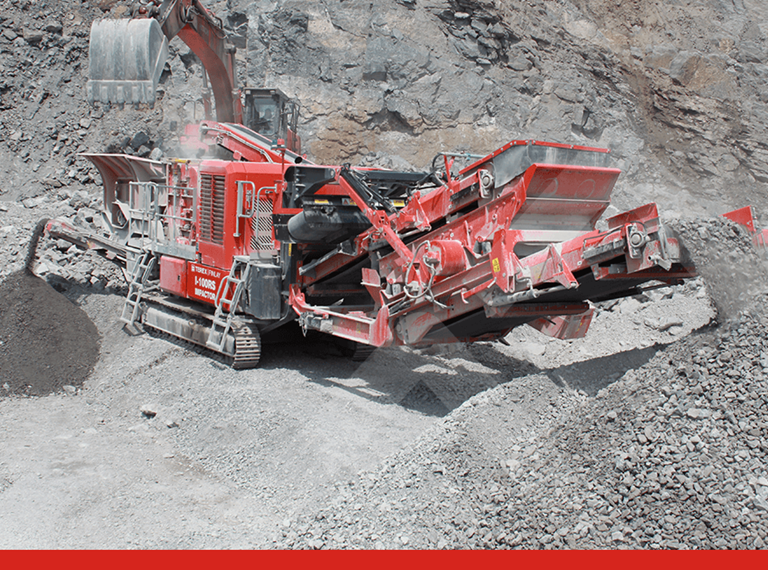

The Finlay I-100RS direct drive ø860mm x 860mm (Ø34” x 34”) Tracked Compact Impact Crusher with variable speed gives operators unprecedented levels of fuel efficiency and production in both recycling and quarrying applications.
The machine features a 2.44m x 1.2m (8’ x 4’) single deck screen for sizing and recirculating oversize material back to the crushing chamber.
The sizing screen can be quickly detached for applications that do not require resizing or recirculation of materials for further processing.
The I-100RS features hydraulic folding of all conveyors providing rapid set-up times and easy point to point moves when operating on multiple sites.
Key Features
Direct drive Ø860mm x 860mm (Ø34" x 34") crusher chamber with unique belt tensioner system allowing for rapid adjustment.
Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons and hydraulic over¬load protection in event that an un-crushable object enters chamber.
Detachable 2.4m x 1.2m (8’ x 4’) single deck screen returns oversize material back to the crusher via the on-board recirculating system.
Quick and easy detachable screen, fines and transfer conveyor for open circuit crushing.
Productivity
Measurements
Power
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
Downloads
Specifications
