The AT 15-3 is our most compact pick and carry crane, with a maximum lifting capacity of 15 tonne.
Pick & Carry Crane
|24 USt 22 t|
|59 ft 17.9 m|

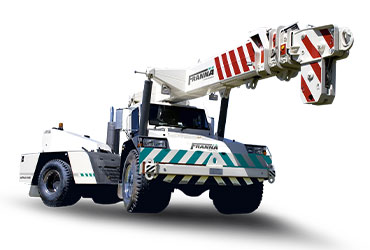

The AT 22 is a mid-sized, mobile pick and carry crane with a maximum lifting capacity of 22 tonne (24 USt). Boasting maximum safety features and superior capabilities than that of other pick and carry cranes in the field, the AT 22 is a logical choice for customers who cover a wide range of applications.
Dynamic LMI (Patent Protected)
First released in 2013, Franna’s patented Dynamic LMI remains as a pillar of safety, underpinning the electronic control and user experience offered today. The system is designed to offer ‘real-time’ calculation of rated capacity taking
into account boom configuration, as well as chassis articulation, pitch and roll, enabling continual assessment of structural limitations, forward stability and side stability.
Increased resolution of rated capacity is made possible by finer measurement of articulation pitch and roll angles, allowing for improved machine capability compared to previous generation LMI systems. When operated on a jobsite over undulating terrain, the rated capacity will be updated continually, providing instantaneous information on the percentage utilisation of the machine (0-100% of available capacity). When operating on a side slope or undulating terrain, operators are no longer required to manually calculate a reduction of rated capacity; the Franna Dynamic LMI does that.
Other operational aids include:
- ► Automatic counterweight detection
► Operator settable maximum working height
► Maximum working radius
► Maximum front axle weight
► Rigging limits
► Percentage of rated capacity
These features further enhance the safe operation of the machine when site conditions get tough and are available in retrofit form for all Mercedes powered Franna cranes.
