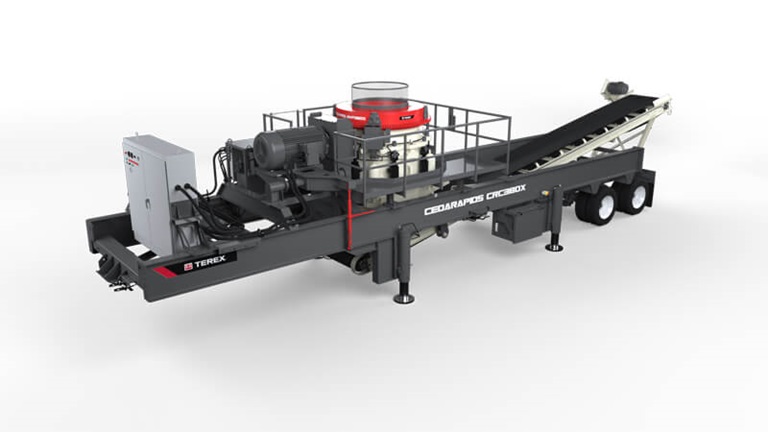

CRC380X

The Cedarapids® CRC380X cone plant is built for portability, especially for applications involving hard abrasive materials. This open circuit plant can be tied in with any portable crushing operation. They are commonly set up in secondary, tertiary, and quaternary crushing positions. The CRC380X is an all electric plant which can easily be tied into new or existing systems. CRC380X plants are available with a variety of options including feed conveyors and extra length undercrusher conveyors.

Technical Documentation

Measurements

Working Dimensions 52'6" x 11'5" x 14'3" 16000 x 3480 x 4344 mm
Weight 93150 lbs 42250 kg
Capacity 450-500 tph 500-560 mtph
Transport Dimensions 52'6" x 11'5" x 13'1" 16000 x 3480 x 3988 mm
Axles 3 3
