WC1150S

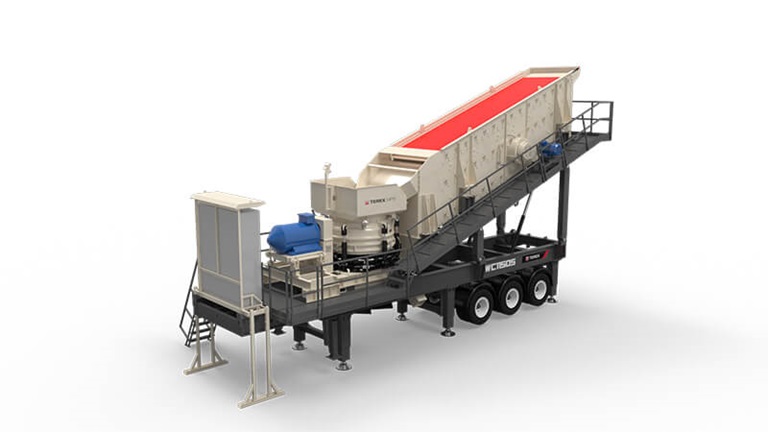

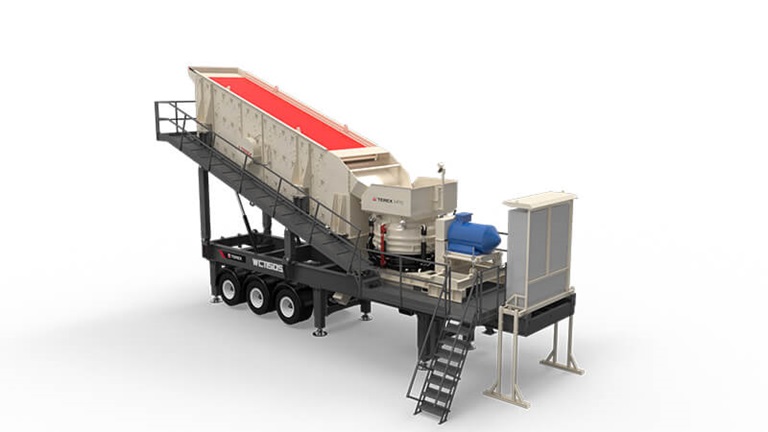

The Terex® MPS WC1150S Cone-Screen plant is a high performance, medium sized wheeled crushing-screening system. At the heart of the plant is the TC1150 cone crusher with hydraulic setting, tramp release & unblocking system. Its unique crushing action provides excellent capacity, high reduction & good product cubicity for the production of high quality aggregate & sub-base materials. Onboard screen allows for sizing product from a single plant. A level sensor over the cone crusher regulates the feed to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life & optimal product shape. Plants comes with added features for simple and easy installation of the plant.

Technical Documentation

Measurements

Capacity 165-320 tph 150-290 mtph
Axles 3 3
Weight 84878 lbs 38500 kg
Working Dimensions 42' 11" x 17' 8" x 24' 4" 13072 x 5375 x 7409 mm
Transport Dimensions 45' 1" x 9' 3" x 13' 11" 13733 x 2804 x 4239 mm

Downloads
