Modular Screen

Our modular screening range feature the revolutionary Cedarapids horizontal screens, combining the efficient, high g-force El-Jay^TM oval stroke action, and a large blending chute for a range of discharge options.

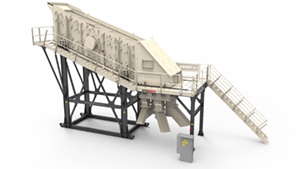

MTS6204

MTS6204

Number of Decks 4 4

Weight 52,761 lbs 23,932 kg

Working Dimensions 46'7"x14'7"x26'7" (LxWxH) 14200x4450x8100 mm (LxWxH)

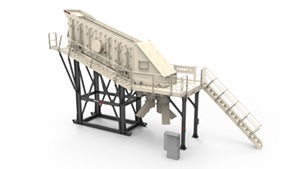

MTS5184

MTS5184

Number of Decks 4 4

Weight 44,634 lbs 20,246 kg

Working Dimensions 44'11"x13'5"x26'3" (LxWxH) 13700x4100x8000 mm (LxWxH)

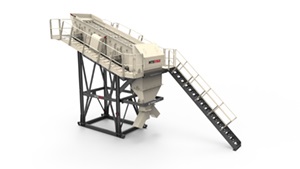

MTS5162_thumbnail

MTS5162

Number of Decks 2 2

Weight 39,558 lbs 15,500 kg

Working Dimensions 33'2"x13'5"x21'4" (LxWxH) 10100x4100x6510 mm (LxWxH)

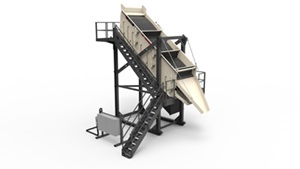

MTHF2618_thumbnail

MHFS2618

Number of Decks 2 2

Weight 23,240 lbs 10,540 kg

Working Dimensions 23'7"x20'11"x24'7" (LxWxH) 7194x6374x7500 mm (LxWxH)

Horizontal Screener

MHS8203

Motor Size 50 hp 37 kW

Number of Decks 3 3

Weight 60,000 lbs 27,215 kg

Working Dimensions 48'7" x 15'9" x 18'4" 14802 x 4800 x 5584 mm

MHS6203 screen module

MHS6203

Motor Size 40 hp 30 kW

Number of Decks 3 3

Weight 48,469 lbs 21,984 kg

Working Dimensions 48'7" x 15'9" x 18'4" 14802 x 4800 x 5584 mm

MHS620X-Modular-Screen-Main-Image

MHS620X

Motor Size 50 hp 37 kW

Number of Decks 3 3

Weight 63600 lbs 28848 kg

Working Dimensions 49'9" x 18'6" x 23'6" 15216 x 5674 x 7134 mm

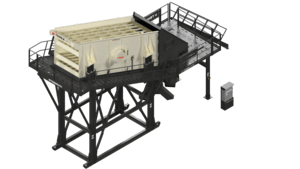

MTS6204X

MTS6204X

Motor Size 29.5 hp 24 kW

Number of Decks 4 4

Weight 50,574 lbs 29,940 kgs

Working Dimensions 46'7"x14'7"x26'7" (LxWxH) 14200x4450x8100 mm (LxWxH)
