Static Cone Crushers

Terex MPS cone crushers set the standard for production and efficiency. Our range of powerful cone crushers boast all the latest features, from hydraulic tramp iron relief systems, to automation and telematics systems.
Cone Crusher Render

J35

Capacity 65-235 tph 60-215 mtph
Weight 23,570 lbs 10,690 kg
Cone Crusher Render

J50

Capacity 155-560 tph 140-510 mtph
Weight 60,640 lbs 27,500 kg
Cone Crusher Render

J65

Capacity 305-760 tph 280-690 mtph
Weight 105,820 lbs 48,000 kg

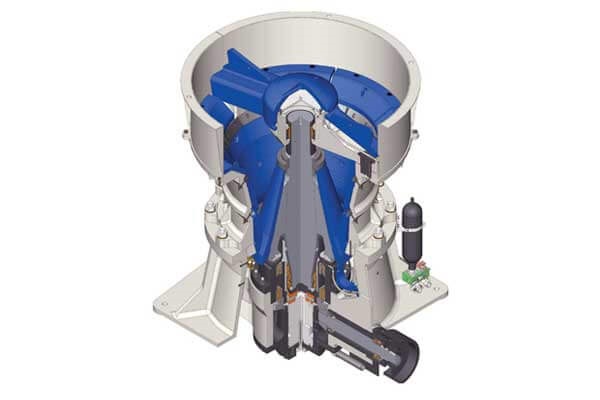

SP50 Cone Crusher

SP50

Motor Size 375 hp 280 kW
Capacity 715 tph 650 mtph
Weight 65,050 lbs 29,500 kg
MVPX_thumbnail

MVP550X

Capacity 250-810 tph 228-737 mtph
CSS Range 3/8" to 2" 10-51 mm
Head Diameter 60 inches 1,524 mm
Motor Size 500 hp 375 kW
Weight 68000 lbs 30800 kg
MVPX_thumbnail

MVP450X

Capacity 200-645 tph 182-585 mtph
CSS Range 3/8" to 2" 10-51 mm
Head Diameter 54 inches 1,372 mm
Motor Size 400 hp 300 kW
Weight 52500 lbs 23800 kg
MVP380X_thumbnail

MVP380X

Capacity 170-560 tph 155-507 mtph
CSS Range 3/8" to 2" 10-51 mm
Head Diameter 48 inches 1,219 mm
Motor Size 300 hp 225 kW
Weight 46000 lbs 20800 kg
TC1300_thumbnail

TC1300

Capacity 180-350 tph 165-320 mtph
CSS Range 1-1 51/64" 22-45 mm
Head Diameter 51 inches 1,300 mm
Motor Size 300 hp 225 kW
Weight 48,500 lbs 22,000 kg
TC1300X

TC1300X

Capacity 325-375 tph 295-340 mtph
CSS Range 2 inches 20 mm
Head Diameter 52 inches 1,300 mm
Motor Size 400 hp 300 kW
Weight 39917 lbs 18106 kgs
TC1150_thumbnail

TC1150

Capacity 165-320 tph 150-290 mtph
CSS Range 5/8" to 1-9/16" 16-40 mm
Head Diameter 45 inches 1,150 mm
Motor Size 300 hp 225 kW
Weight 31360 lbs 14000 kg
TG120_1_thumbnail

TG120

Max Capacity 121-143 tph 110-130 mtph
CSS Range 1/4" to 1-1/8" 6-29 mm
Max Feed Size 5 Inches 125 mm
Motor Size 120 hp 90 kW
Weight 12125 lbs 5500 kg
TG220_1_thumbnail

TG220

Max Capacity 215-237 tph 195-215 mtph
CSS Range 1/4" to 1-1/4" 6-32 mm
Max Feed Size 6.5 Inches 165 mm
Motor Size 215 hp 160 kW
Weight 20944 lbs 9500 kg
TG320_1_thumbnail

TG320

Max Capacity 419-452 tph 380-410 mtph
CSS Range 5/16" to 1-1/2" 8-38 mm
Max Feed Size 7.5 Inches 190 mm
Motor Size 335 hp 250 kW
Weight 33069 lbs 15000 kg
TG420_1_thumbnail

TG420

Max Capacity 705-750 tph 640-680 mtph
CSS Range 1/2" to 1-3/4" 13-44 mm
Max Feed Size 9.4375 Inches 240 mm
Motor Size 400 hp 315 kW
Weight 55556 lbs 25200 kg
TG820_1_thumbnail

TG820

Max Capacity 1543-1709 tph 1400-1550 mtph
CSS Range 1/2" to 2-1/2" 13-64 mm
Max Feed Size 1'5/8" 320 mm
Motor Size 805 hp 600 kW
Weight 110321 lbs 50000 kg
TG1020_1_thumbnail

TG1020

Max Capacity 2315-2535 tph 2100-2300 mtph
CSS Range 1/2" to 2-3/4" 13-70 mm
Max Feed Size 1'2" 355 mm
Motor Size 1006 hp 750 kW
Weight 169756 lbs 77000 kg
TGS120_1_thumbnail

TGS120

Max Capacity 146-158 tph 132-143 mtph
CSS Range 3/8" to 1-3/8" 9-35 mm
Max Feed Size 7.5 Inches 190 mm
Motor Size 120 hp 90 kW
Weight 15102 lbs 6850 kg
TGS220_1_thumbnail

TGS220

Max Capacity 358-379 tph 325-344 mtph
CSS Range 3/4" to 1-3/8" 19-35 mm
Max Feed Size 10.8125 Inches 275 mm
Motor Size 215 hp 160 kW
Weight 26676 lbs 12100 kg
TGS320_1_thumbnail

TGS320

Max Capacity 634-662 tph 575-601 mtph
CSS Range 1-1/8" to 1-7/8" 29-48 mm
Max Feed Size 1'1" 330 mm
Motor Size 335 hp 250 kW
Weight 42990 lbs 19500 kg
TGS420_1_thumbnail

TGS420

Max Capacity 1102-1157 tph 1000-1050 mtph
CSS Range 1-1/2" to 2-3/4" 38-70 mm
Max Feed Size 1'3-3/16" 385 mm
Motor Size 422 hp 315 kW
Weight 80469 lbs 36500 kg
