Wheeled Cone Crushers

Terex MPS leads the industry with the most advanced wheeled cone crushers. Our cone plants are designed for high productivity and easy portability for you to get the most out of your crushing plant investment. Features for obtaining peak productivity are built into each plant such as hydraulic set up jacks, easy access maintenance, long life components, interlocked electrical controls, and high capacity conveyors.

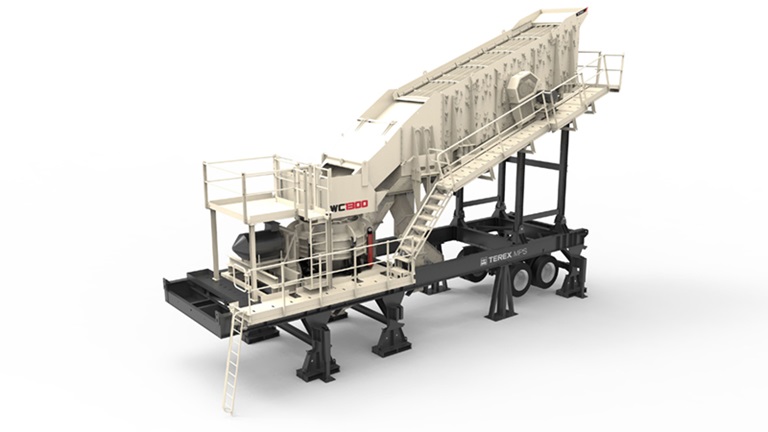

WC1300

The WC1300 combines the rugged reliability of our TC1300 cone crusher with our efficient and durable inclined screen. The result is a high production crushing and screening machine.The highly mobile Terex WC1300 wheeled cone/screen plant is suitable for working in many different crushing spreads and will handle almost any aggregate material, including extremely hard abrasives. The WC1300 is an all electric plant, which easily ties into new or existing secondary, tertiary and quaternary crushing applications.The Terex WC1300 is designed to help you be more profitable. The high performance four-deck screen and powerful cone crusher have the flexibility to deliver four variously sized products with increased efficiency.



Made in India.

Technical Documentation

Measurements

Weight 132,277 lbs 60,000 kg
Working Dimensions 45'2"x17'11"x29'1" (LxWxH) 13765x5451x8854 mm (LxWxH)
Transport Dimensions 48'2"x13'7"x13'4" (LxWxH) 14672x4138x4073 mm (LxWxH)
Axles 2 2
