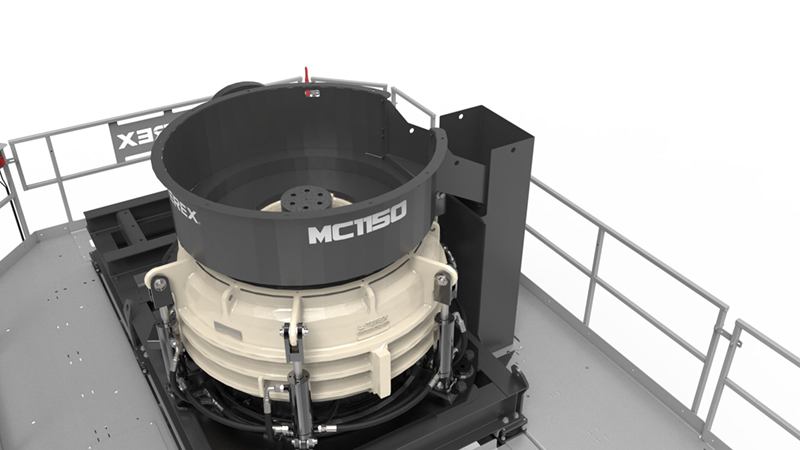

Cone Crusher Module

The MC1150 offers a nominal cone head diameter of 45”(1150mm).It features a one-piece upper frame for all liner configurations, a no-hit concave and new mantle liner retention systems. Other enhancements include greater tramp clearance and increased clamp hold down pressure.
Specification Value
Weight 52,150 lbs / 23,654 kg
Working Dimensions 21'11"x23'1"x14'10" (LxWxH) / 6688x7044x4527 mm (LxWxH)
Motor Size 300 hp / 225 kW
Capacity 280-327 tph / 308-360 mtph
