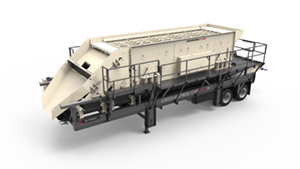

CRS820H
The Cedarapids® CRS820H screen plant features the popular 8' x 20' (2438mm x 6096mm) TSV8203 screen

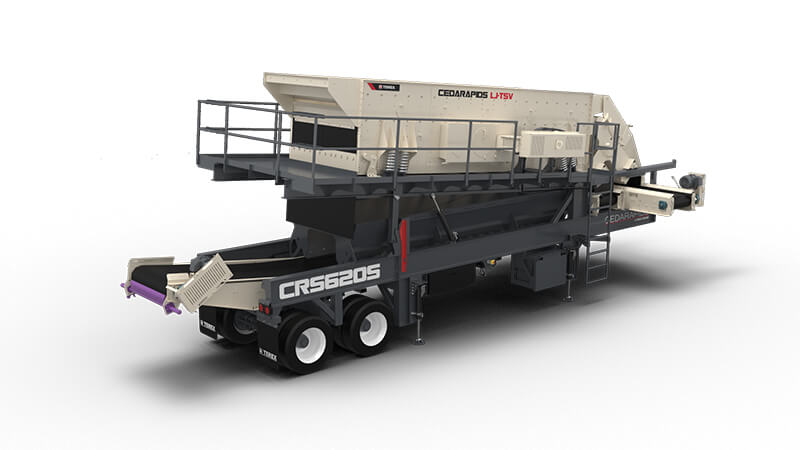

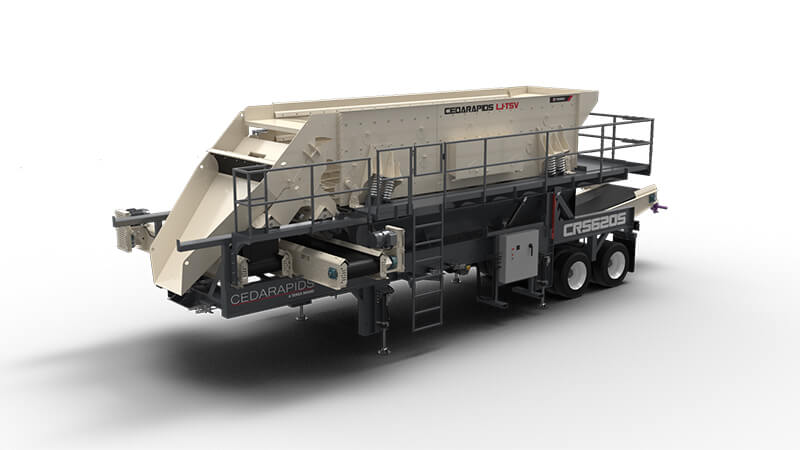

CRS620S
Portable Screen Plant

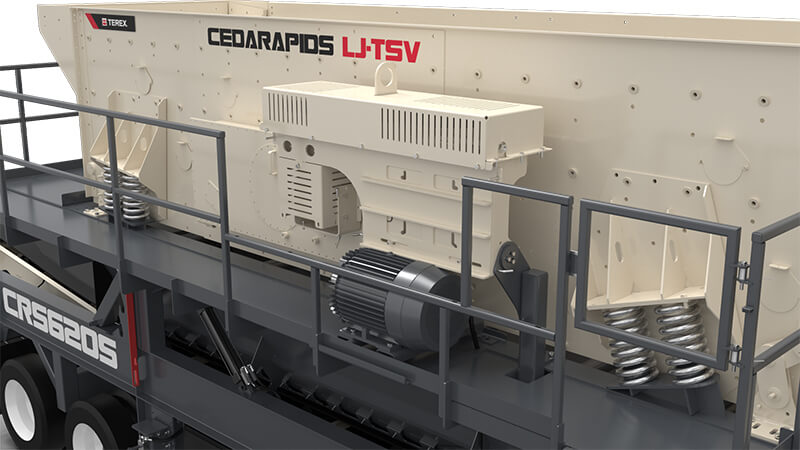

The Cedarapids® CRS620S screen plant features the next generation, patent pending LJ-TSV screen. This screen increases production and handles applications not possible with traditional horizontal screens because it combines the legendary El-Jay™high g-force oval stroke motion with adjustable slope operation. This plant can handle larger deck loads and larger screen openings. Screen openings up to 6” (152mm) are possible. Hydraulics quickly change the screen slope in 2.5° increments up to a maximum of 7.5° to best fit the application.
| Specification | Value |
|---|---|
| Weight | 53,000 lbs / 24,045 kg |
| Transport Dimensions | 36'10"x11'11"x13'11" (LxWxH) / 11215x3632x4251 mm (LxWxH) |
| Working Dimensions | 41'2"x15'2"x16'8" (LxWxH) / 12555x4623x5077 mm (LxWxH) |
| Axles | 2 Axle / 2 Axle |
