T75-HF Orbital
Orbital Conveyor

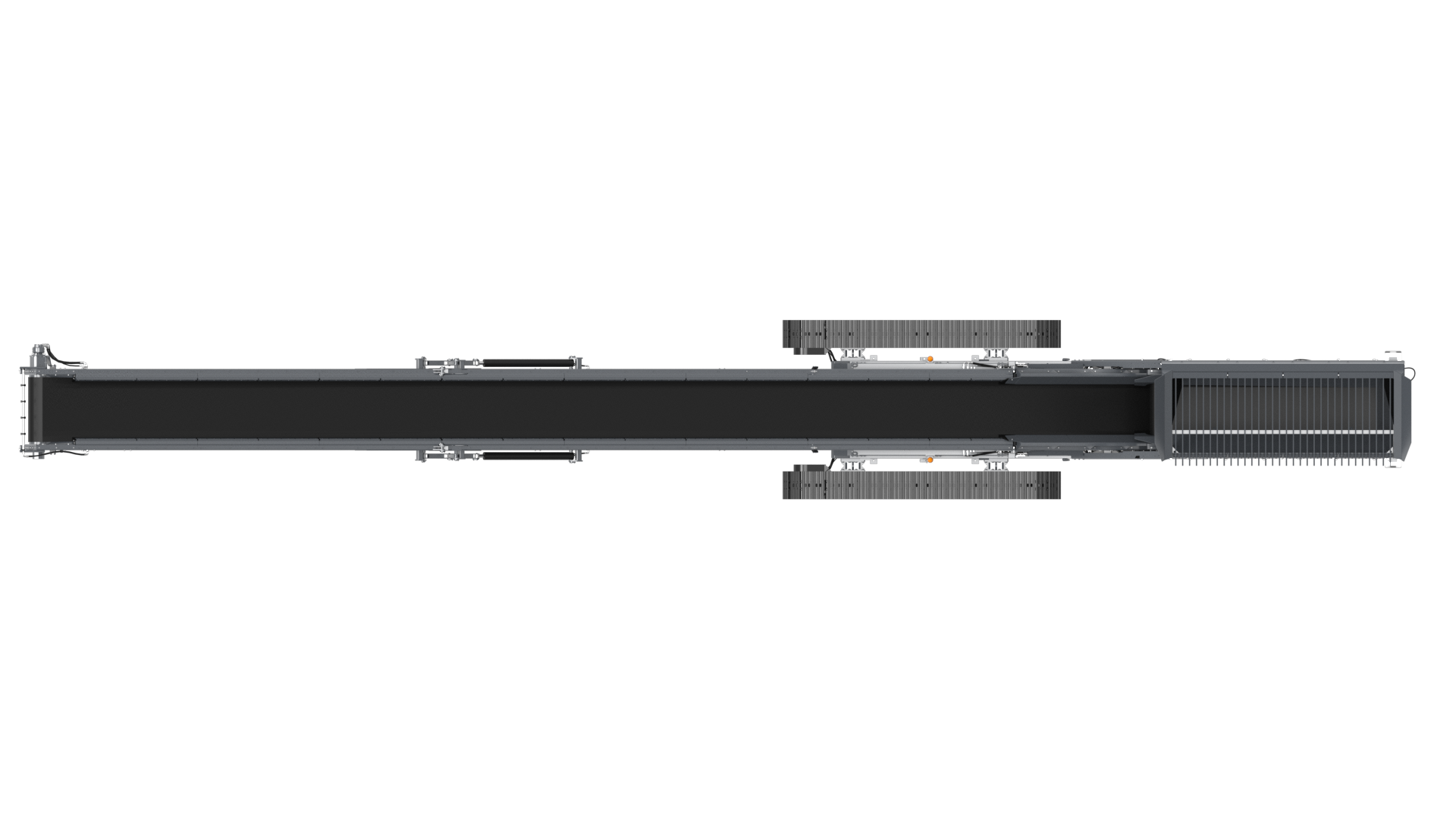

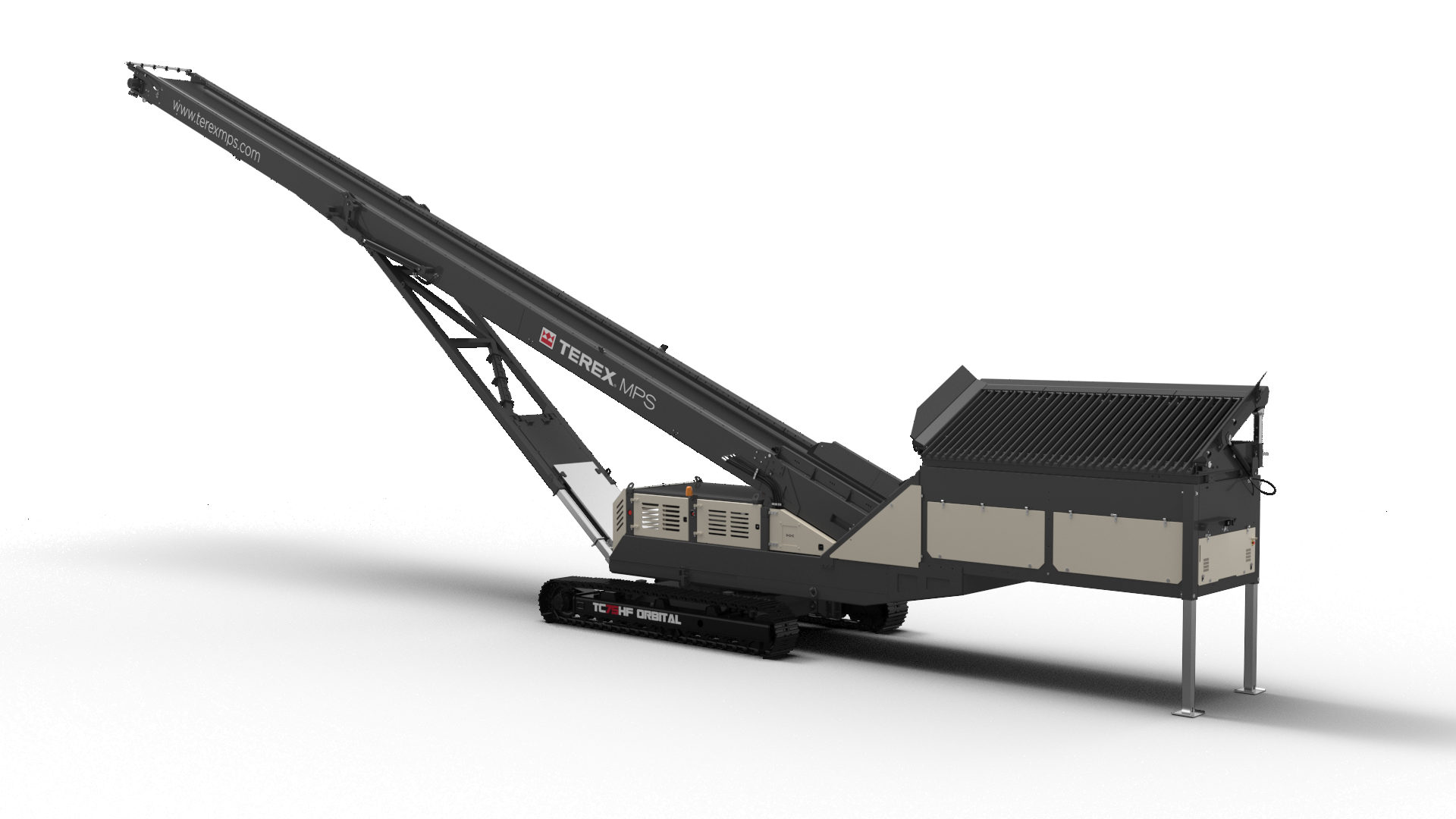

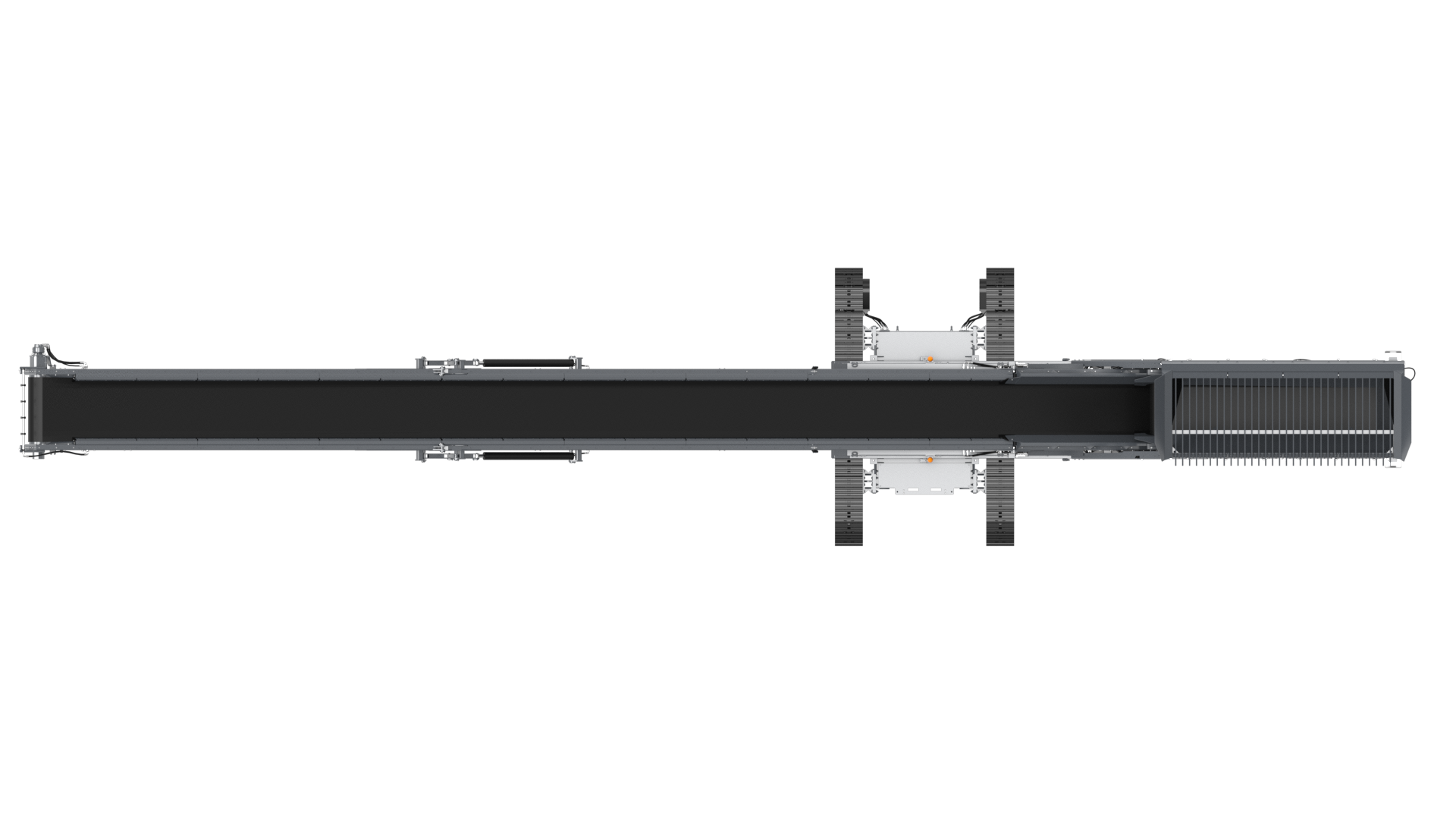

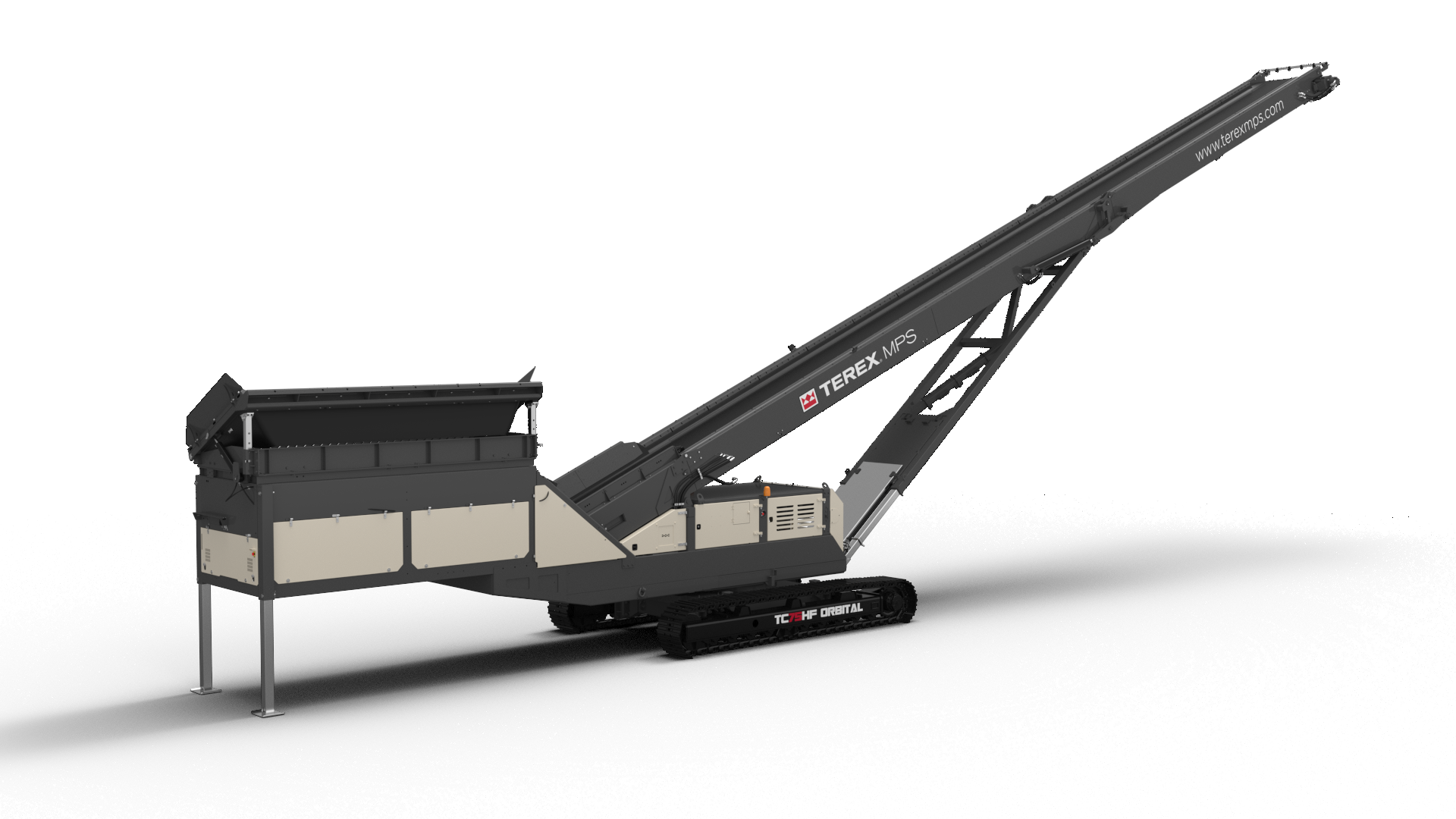

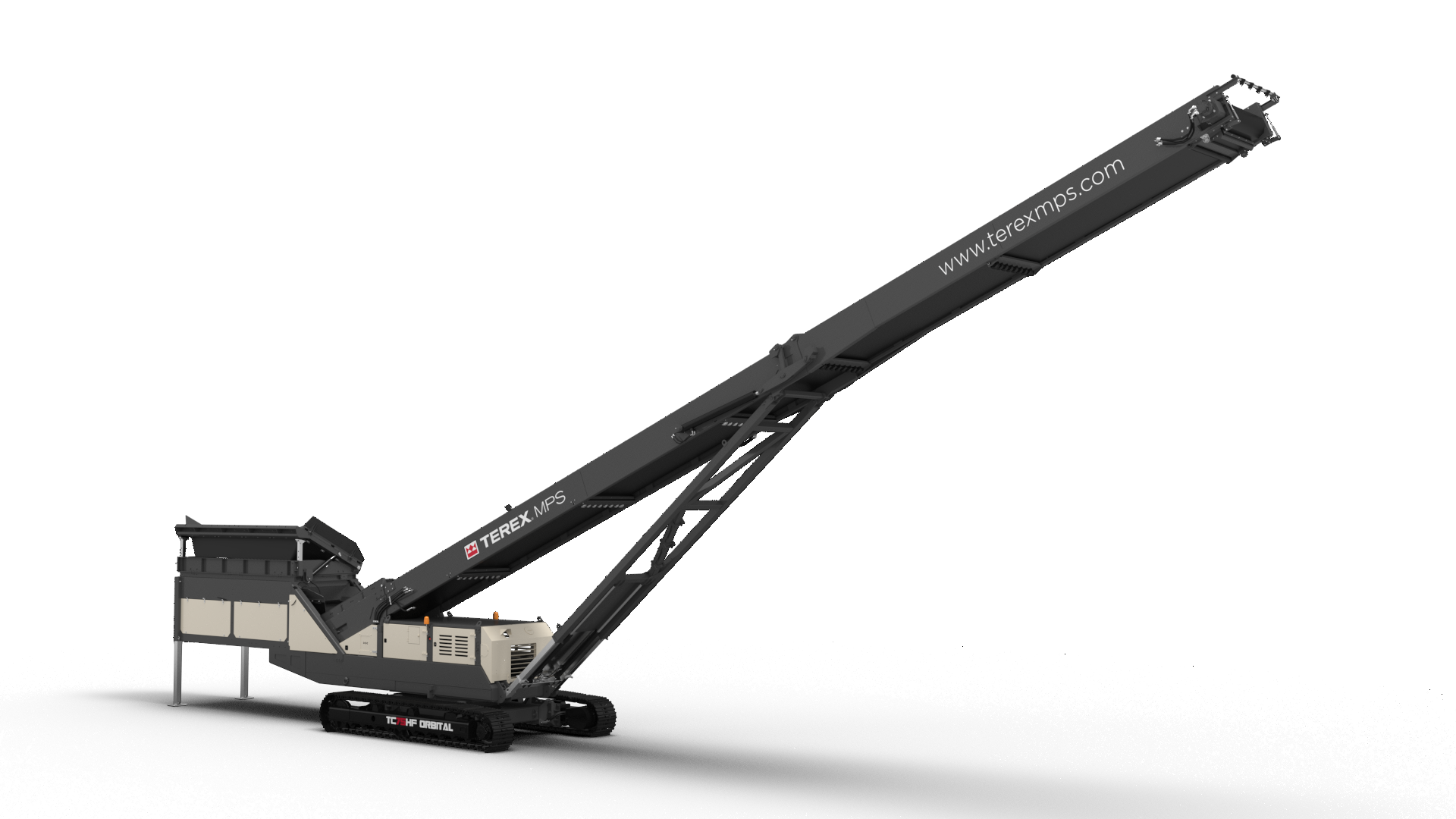

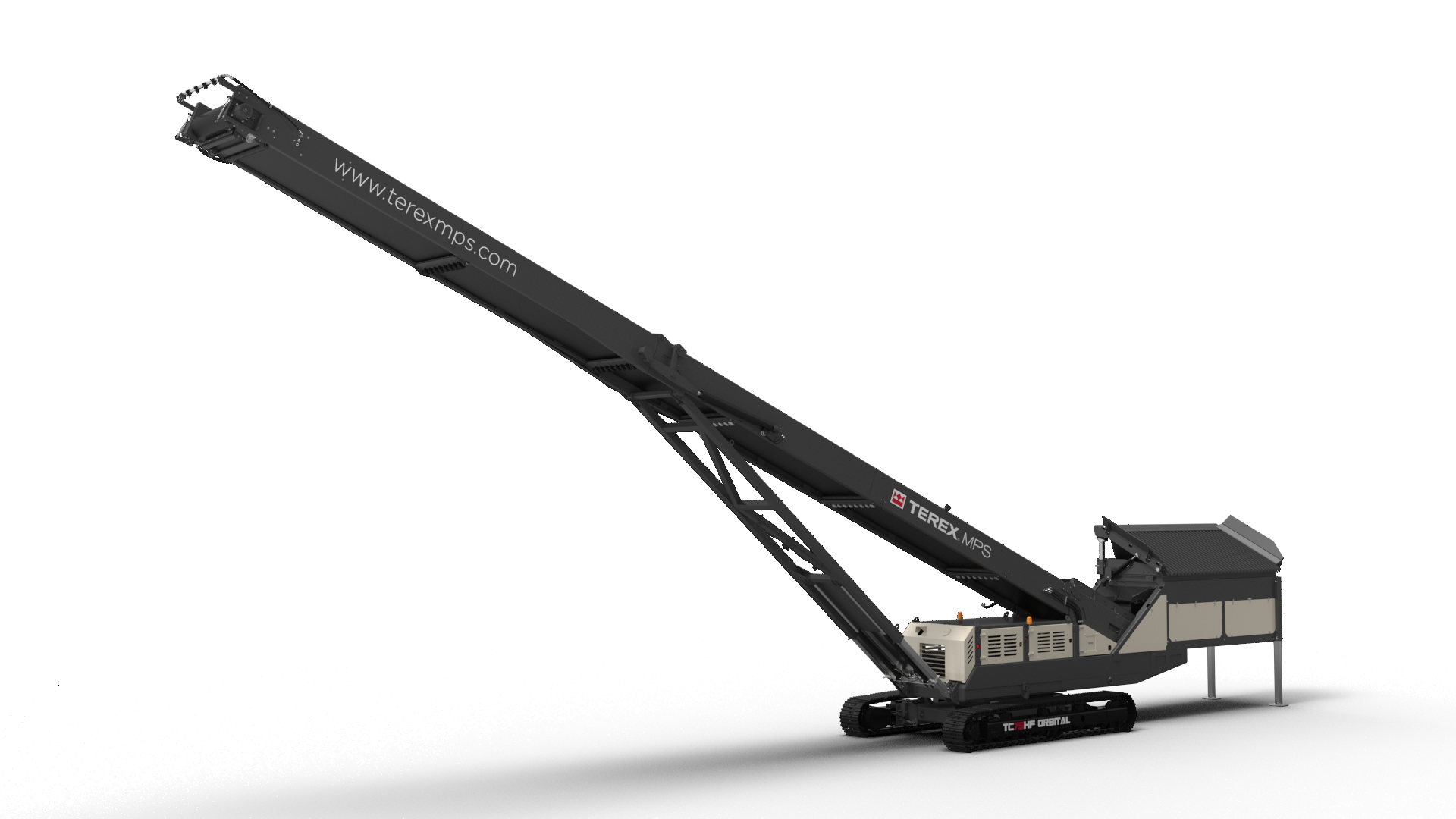

The T75-HF Orbital Conveyor integrates the feeder system with a stockpiling conveyor, enabling operators to discharge directly from wheel loaders and eliminate double material handling on site. The orbital configuration permits independent rotation of the conveyor from the undercarriage, enhancing efficiency and coordination at the work site.
| Specification | Value |
|---|---|
| Output Potential | 661 US tph / 600 tph |
| Transport Dimensions | Width: 10'6" Length: 63' Height: 11'11" / Width: 3.2m Length: 19.5m Height: 3.63m |
| Belt Width | 48" / 1.2m |
| Conveyor Length | 73' 10" / 22.5m |
| Max Discharge Height | 34' 6" / 10.7m |
