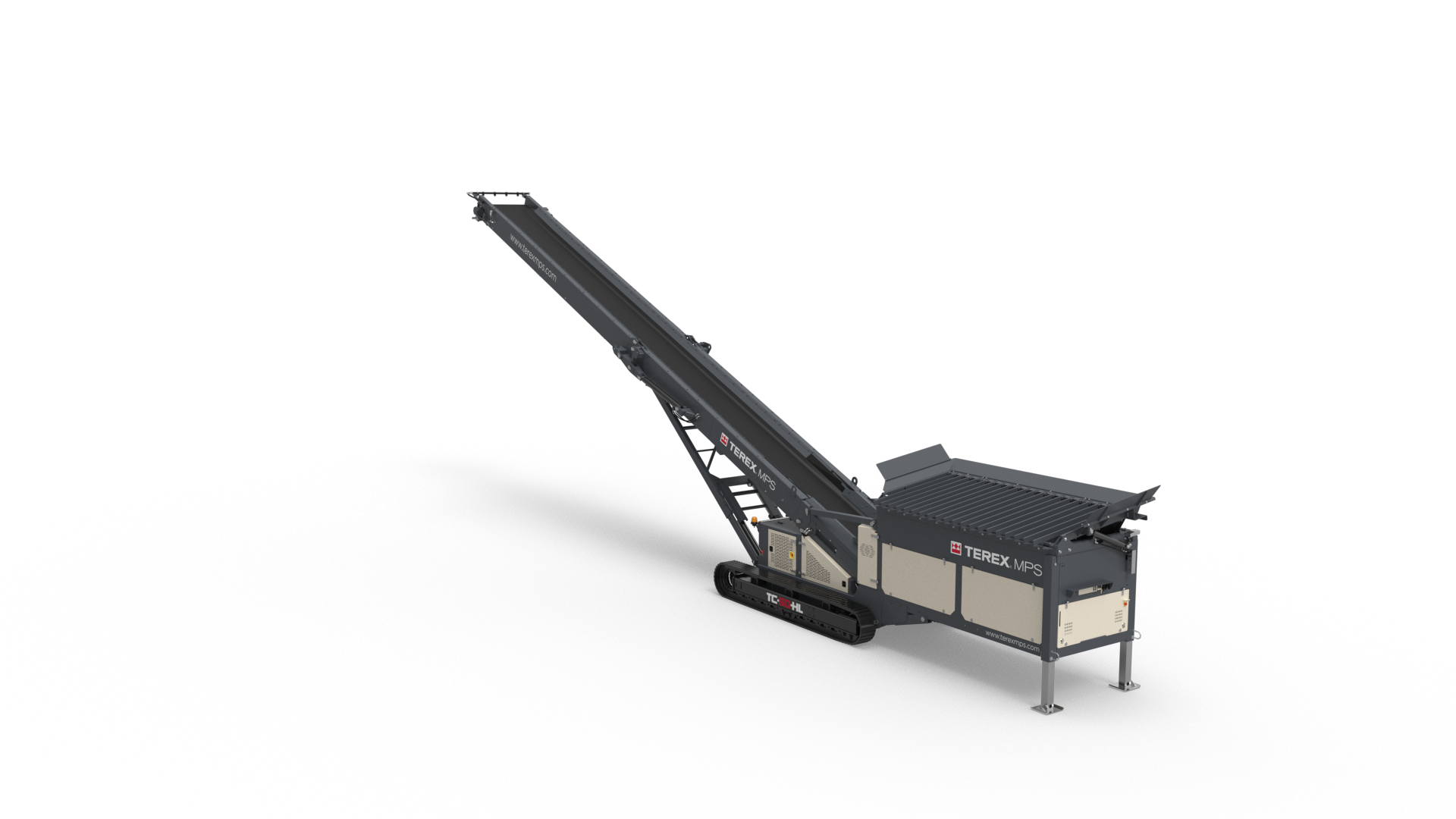

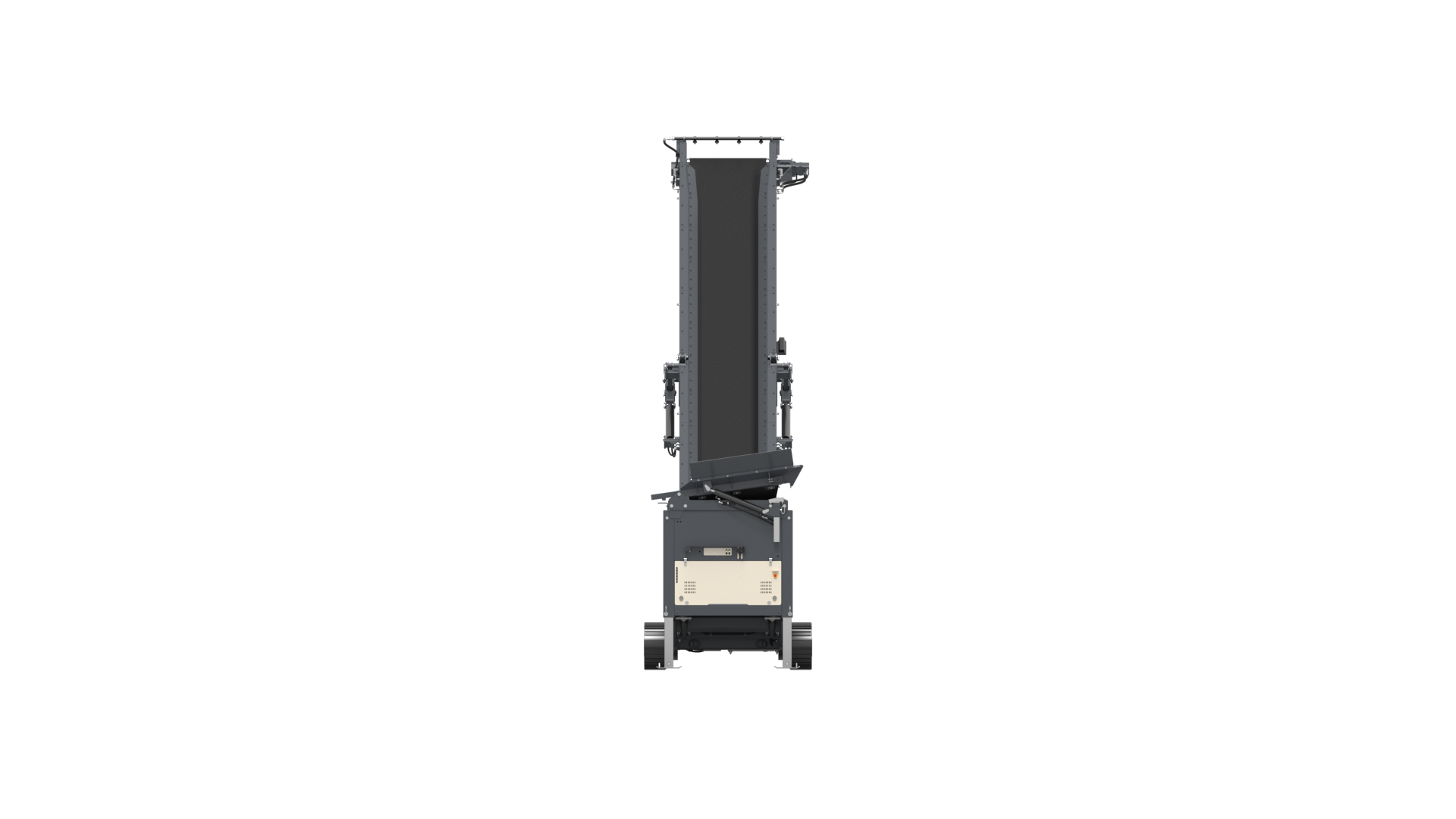

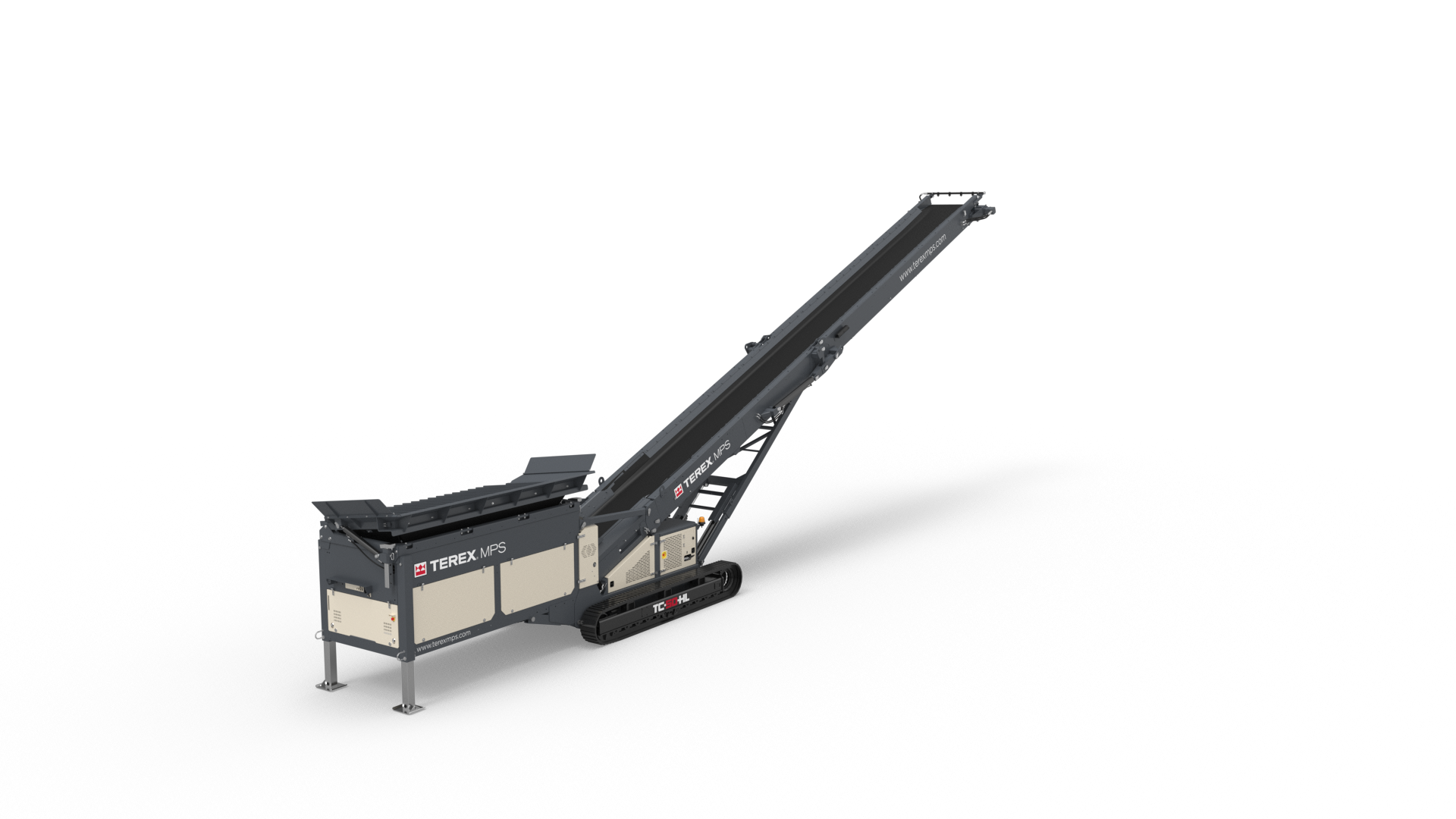

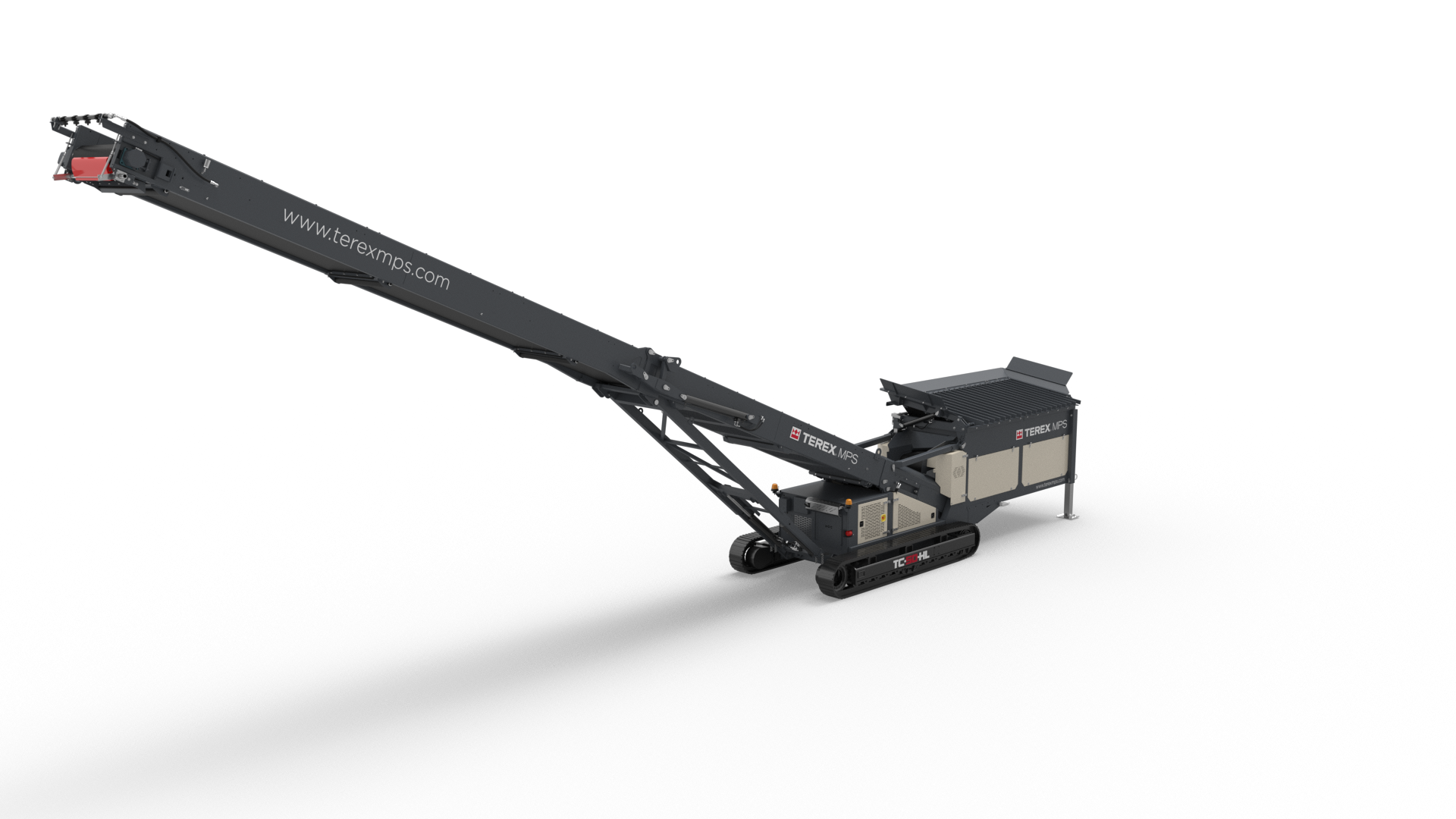

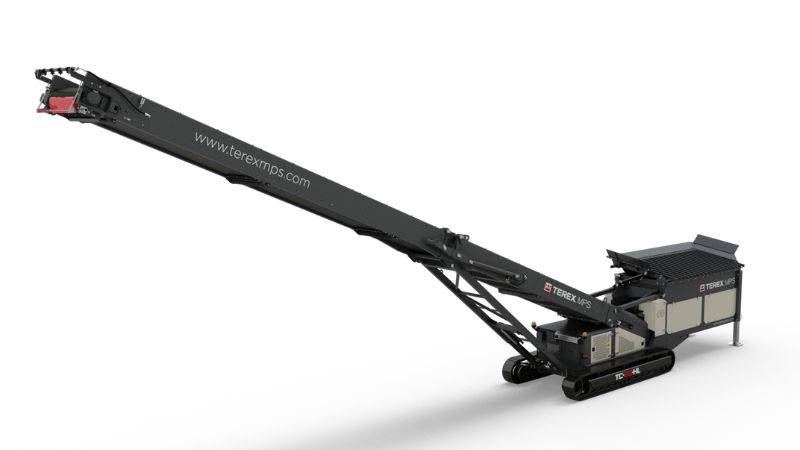

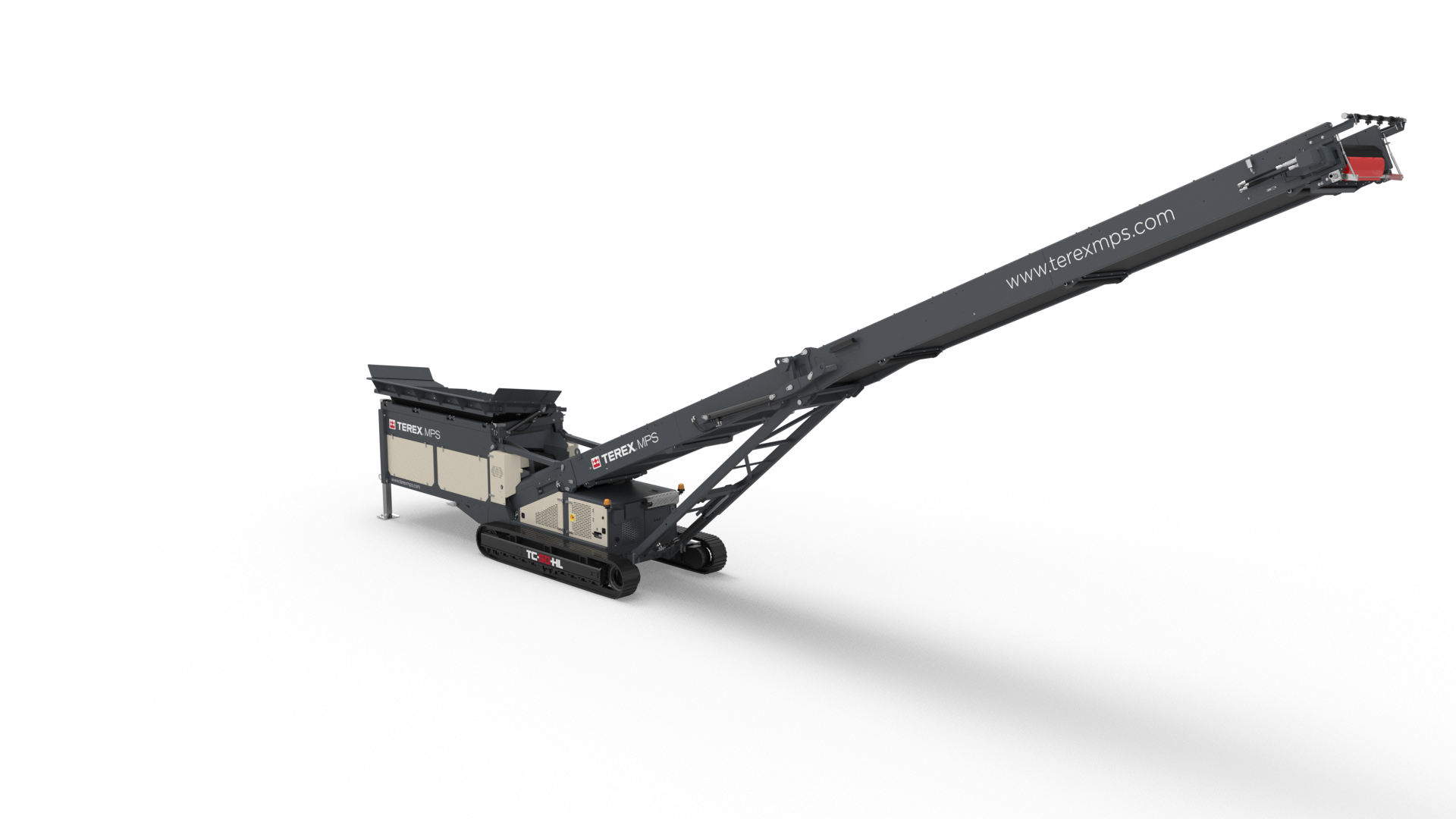

TC-50-HL
High Level Feeder
The TC-50-HL high-level feeder integrates the adaptable feeder system with a stockpiling conveyor, enabling direct discharge from wheel loaders to minimize on-site material handling. These fully mobile units are ideal for providing controlled or metered material feed into any machine.
| Specification | Value |
|---|---|
| Output Potential | 496 US tph / Up to 450tph |
| Transport Dimensions | Width: 7’ 6’" Length: 39’ 11’’ Height: 8’ 4’’ / Width: 2.29m Length: 12.16m Height: 2.55m |
| Belt Width | 42’ / 1050mm |
| Conveyor Length | 51’ 2” / 15.6m |
| Max Discharge Height | 23’ 8’ at 24° / 7.2m at 24° |
