ES SERIES

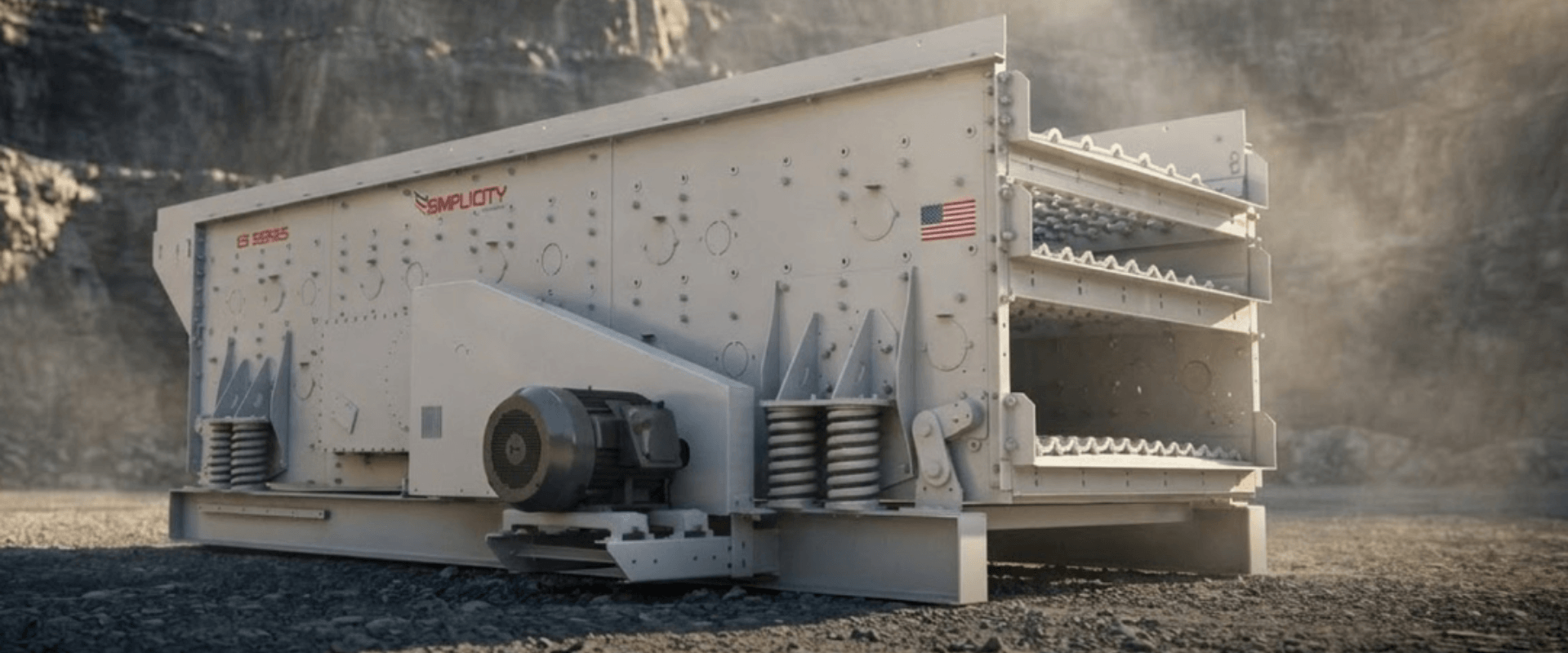

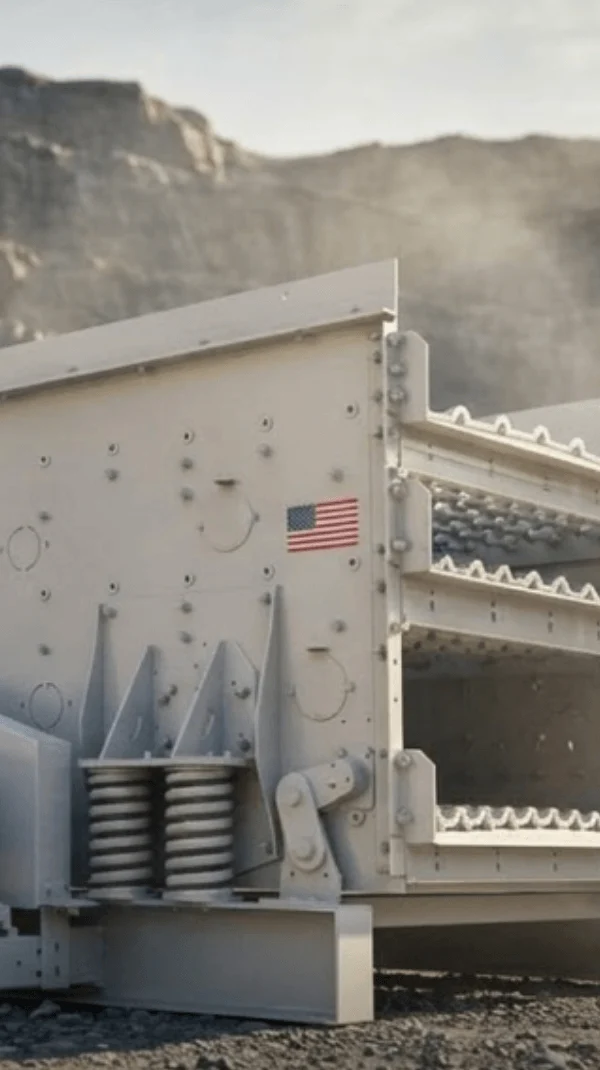

The Simplicity® ES Series Triple Shaft Horizontal Screen is a revolutionary step forward in high-production screening. Where traditional horizontal screens are constrained by fixed geometry and limited adaptability, the ES Series is engineered to break those boundaries — combining the proven efficiency of oval-stroke motion with a fully variable slope design.

Three shafts drive a high-G-force elliptical stroke that moves material decisively across the deck, reducing blinding and boosting throughput. The variable-slope system lets operators dial in the optimal angle for their material and application — from flat installations to a full 10° incline, in precise 2.5° increments.

Whether you're processing aggregate, ore, or construction material, the ES Series delivers the consistency, capacity, and uptime that high-production operations demand. This is not an incremental upgrade — it is an industry leader.

Features and Benefits

3-Way Adjustable Oval Stroke

High G-force, high efficiency oval stroke motion adjusts 3-ways for speed, stroke angle, and stroke magnitude, for optimal performance.

Variable Slope: 0° to 10°

Variable slope installation from zero to 10^o allows matching the slope to the application to minimize bed depth as larger screen openings up to 6".

Industry-Leading Rock Zone Steel

More steel in the "rock zone" with 5⁄16" Grade 50 side plates makes it 2 times stronger than 1/4" industry-standard steel. Computer-optimized decks with full-length bracing back this up with unmatched structural rigidity.

Sealed-for-Life Dual O-Ring Construction

The patented Dual O-Ring Huck Bolt assembly is "sealed for life". requiring no re-tightening or maintenance. Combined with the patented flow-through lubrication system and double O-ring, the construction provides maximum equipment life.
