The Cedarapids TSV Series Triple Shaft Horizontal Screen is the original and still the benchmark for high‑production horizontal screening. The TSV combines a high‑g‑force oval-stroke motion with variable-slope operation, delivering performance capabilities that traditional horizontal screens cannot match.



At the core of the TSV is the triple shaft mechanism, which generates an aggressive oval stroke to move material efficiently across the deck while maintaining consistent stratification. Combined with an adjustable slope from 0° to 10° in 2.5° increments, the TSV can be fine‑tuned to optimize production, material flow, and screening efficiency across a wide range of applications.



Whether you're processing aggregate, ore, or construction material, the TSV Series delivers the consistency, capacity, and uptime that high-production operations demand. This is not an incremental upgrade — it is an industry leader.

Features and Benefits





  • 3-Way Adjustable Oval Stroke
High G-force, high efficiency oval stroke motion adjusts 3-ways for speed, stroke angle, and stroke magnitude, for optimal performance.





  • Variable Slope: 0° to 10°
Variable slope installation from zero to 10o allows matching the slope to the application to minimize bed depth as larger screen openings up to 6".





  • Industry-Leading Rock Zone Steel
More steel in the "rock zone" with 5⁄16" Grade 50 side plates makes it 2 times stronger than 1/4" industry-standard steel. Computer-optimized decks with full-length bracing back this up with unmatched structural rigidity.





  • Sealed-for-Life Dual O-Ring Construction
The patented Dual O-Ring Huck Bolt assembly is "sealed for life". requiring no re-tightening or maintenance.  Combined with the patented flow-through lubrication system and double O-ring, the construction provides maximum equipment life.





  • Up to 12% Efficiency Gain
Optional bottom deck deflector plates direct material flow for optimal deck coverage, boosting screening efficiency by up to 12%.
TSV Series Technical Specification

Request A Quote

Marketing Consent

By ticking this box, you are consenting to receive marketing communications from Simplicity and Terex. You can modify your selection or unsubscribe at any time by visiting the email preference centre.

Media Gallary

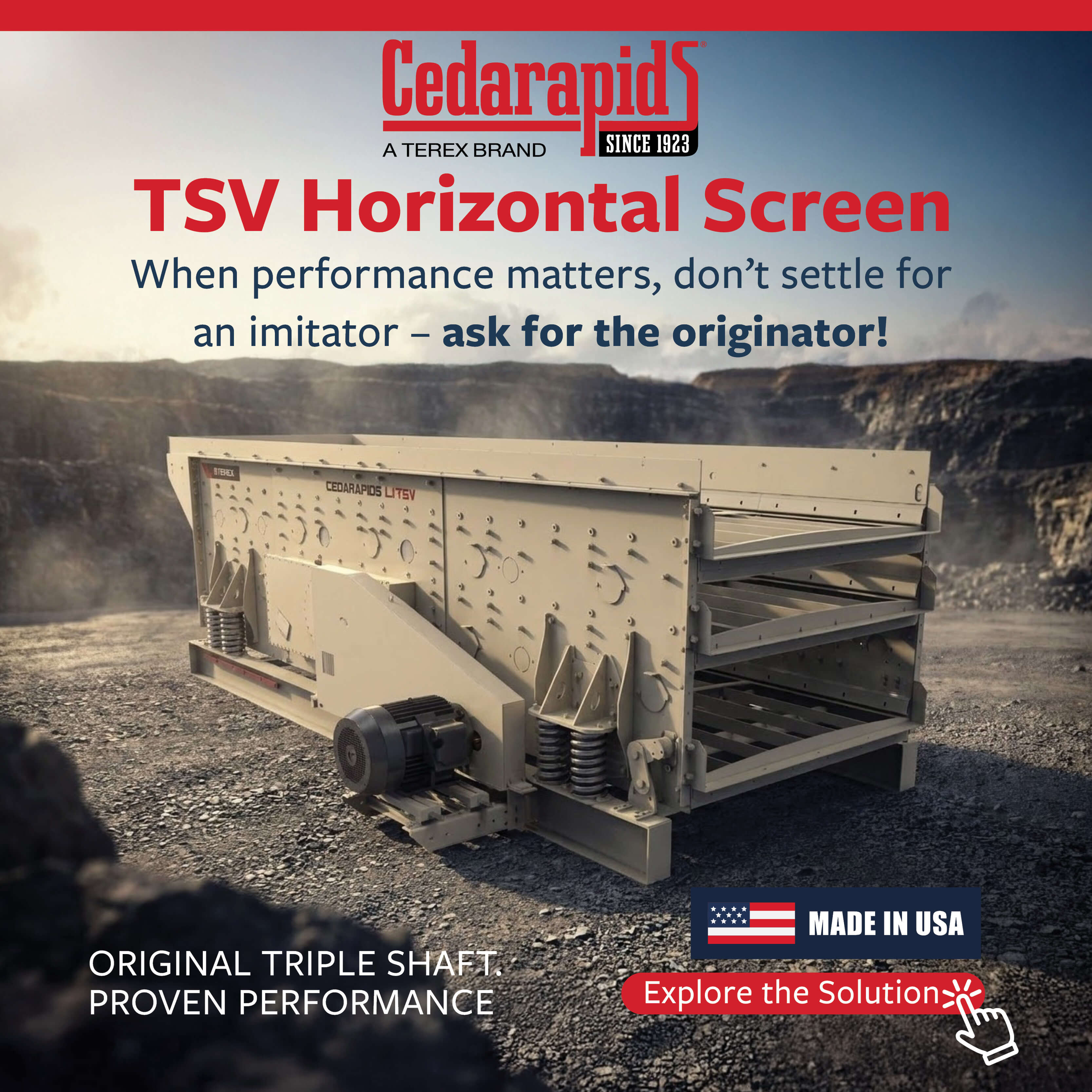

Cedarapids TSV Series Triple Shaft Horizontal Screen Render

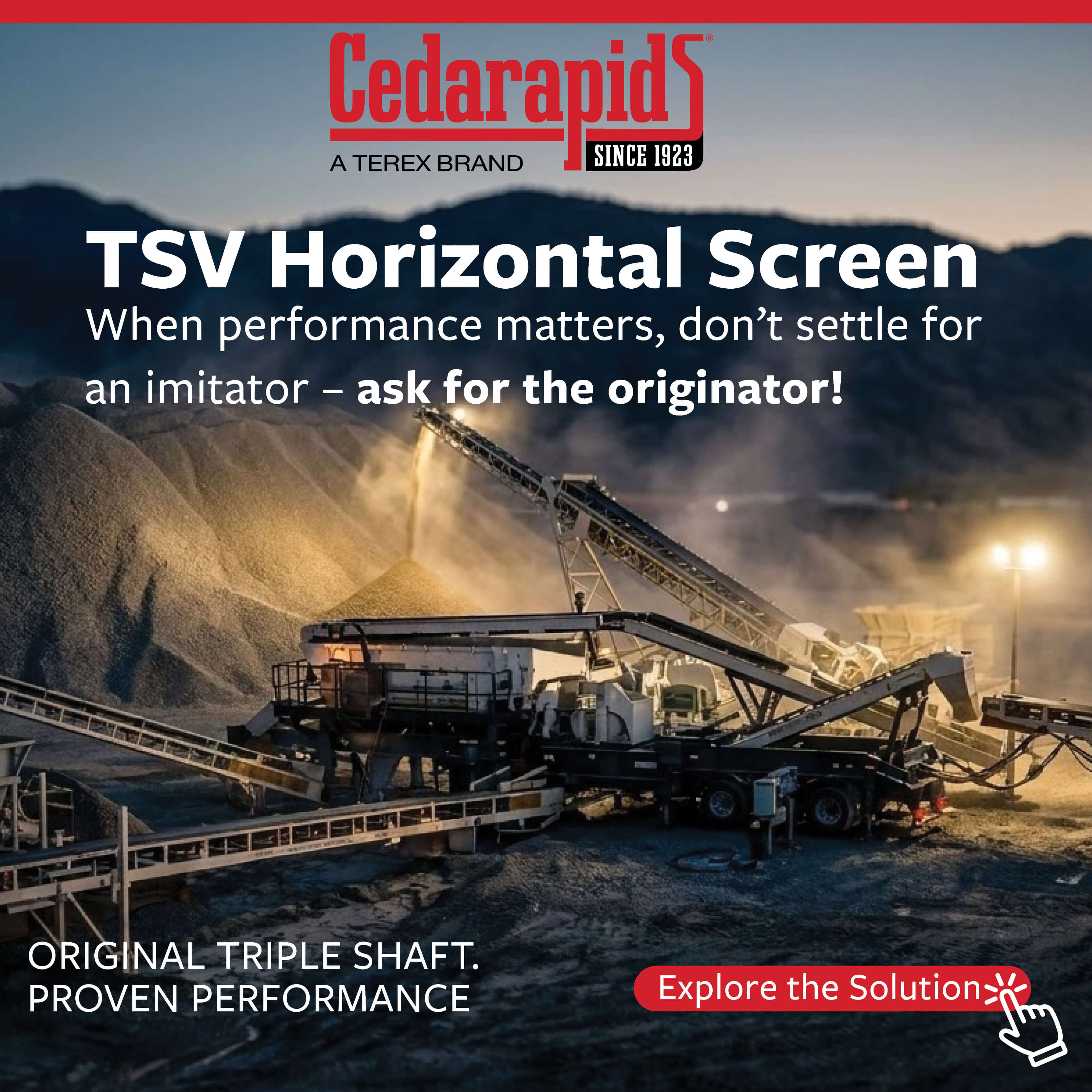

Cedarapids TSV Series Triple Shaft Horizontal Screen 1

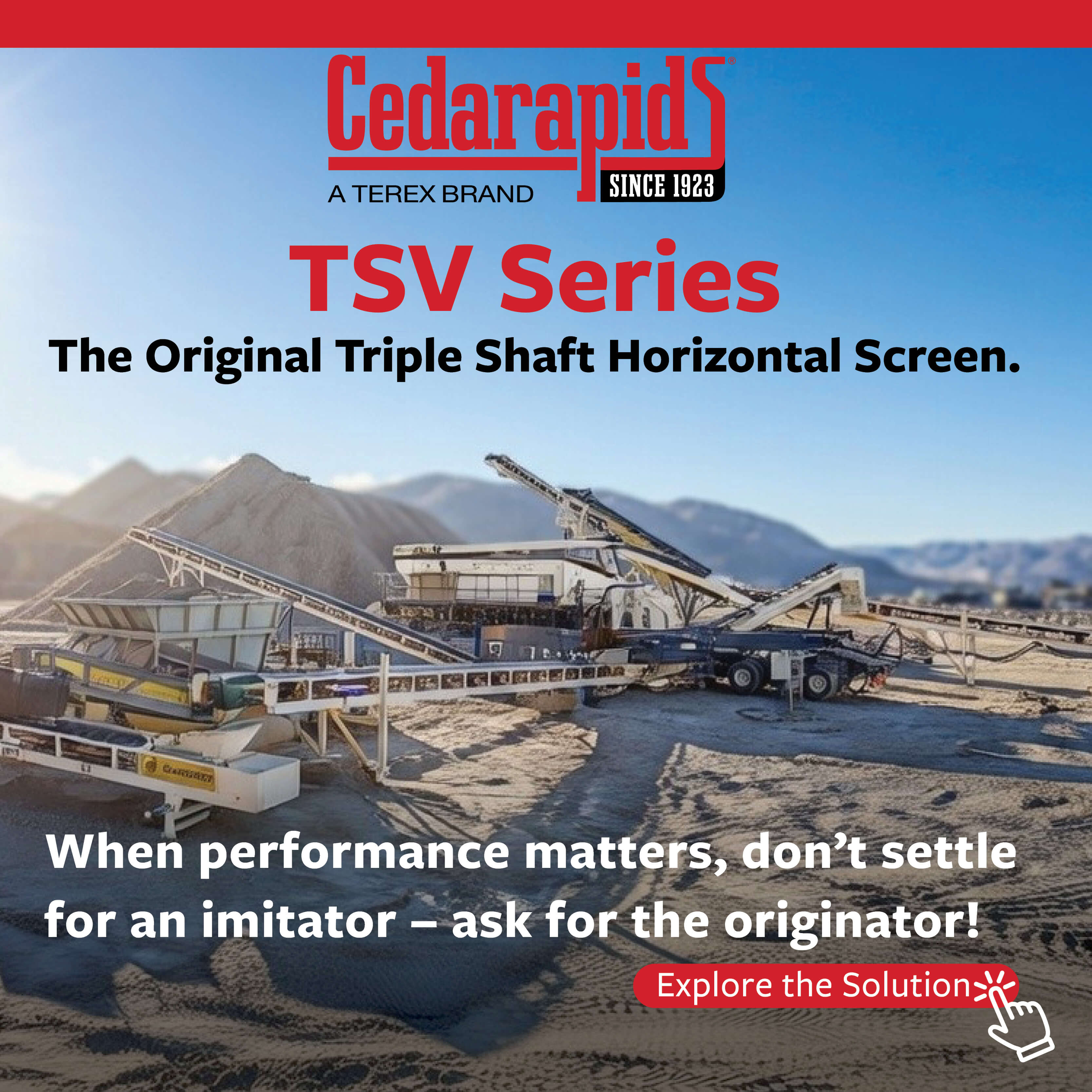

Cedarapids TSV Series Triple Shaft Horizontal Screen 2
