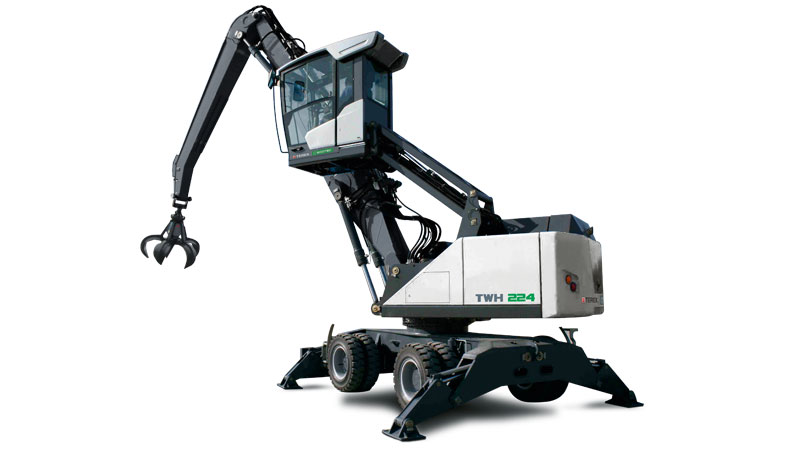

TWH 224

twh-224
The TWH 224 waste handler showcases the optimum balance of power and agility. This waste handler quickly and efficiently completes any job at recycling centres and waste transfer stations – from loading and unloading to stacking and sorting. The available 10.7 metre multi-purpose stick gives operators control of the attachment’s up-and-down movement to efficiently sort material without the need to continually reposition the machine. Neither speed nor precision is compromised, slewing motors and slewing gears are minutely adjusted and the lifting and stick cylinders are equipped with special end-position damping.

The TWH 224 uses advanced engine and cooling technology. The divided cooling system, comprising of a hydrostatically-driven fan for the oil cooler and a viscous-clutch driven fan for the water and charge air cooler, provides superior, silent cooling and permits operation of the machine at temperatures as high as 50°C (122°F).

The clear color display instantly provides an overview of all important operating data, and the hydraulic-lift cab with its panoramic windows affords optimal visibility. Ergonomically-arranged operational controls and a comfortable seat that provides lumbar support are components of the basic equipment.
Specification Value
Operating Weight 51,806 - 56,659lbs / 23,499 - 25,700kg
Net Engine Power 154HP / 115kW
Reach 35' / 10.7m
