TROMMEL
SCREENS
Our trommel screens are highly efficient in the separation and processing of wood chips, top soil, compost, light demolition waste, domestic waste and aggregates. Their rotating drums roll larger pieces of material to allow all fines to flow down and through the trommel screen plates.
TROMMEL SCREENS
The TTS 520 is a powerful, compact and sturdy mobile trommel screen that can be utilised for a variety of screening applications.
| Specification | Value |
|---|---|
| Engine | John Deere 4045HFG82 111HP EURO Level IIIA John Deere 4045HFG82 83kW EURO Level IIIA |
| Engine | Deutz TCD 3.6 L4 101HP Tier 4 Final Deutz TCD 3.6 L4 74kW Tier 4 Final |
| Drum Diameter | 6'7" 2,000mm |
| Drum Length | 16'10" 5,150mm |
| Weight | 32,628lbs 14,800kg |
The TTS 520E is a full electric, two-fraction mobile drum screen that can be utilised for a variety of screening applications while significantly reducing both running and maintenance costs.
| Specification | Value |
|---|---|
| Drum Diameter | 6'7" 2,000mm |
| Drum Length | 16'10" 5,150mm |
| Weight | 32,628lbs 14,800kg |
The TTS 520-3 is an innovative and economical three-fraction screening trommel that provides a new and efficient alternative to star screen systems.
| Specification | Value |
|---|---|
| Engine | John Deere 4045HFG82 111HP EURO Level IIIA John Deere 4045HFG82 83kW EURO Level IIIA |
| Engine | Deutz TCD 3.6 L4 101HP Tier 4 Final Deutz TCD 3.6 L4 74kW Tier 4 Final |
| Drum Diameter | 6'7" 2,000mm |
| Drum Length | 16'10" 5,150mm |
| Weight | 41,888lbs 19,000kg |

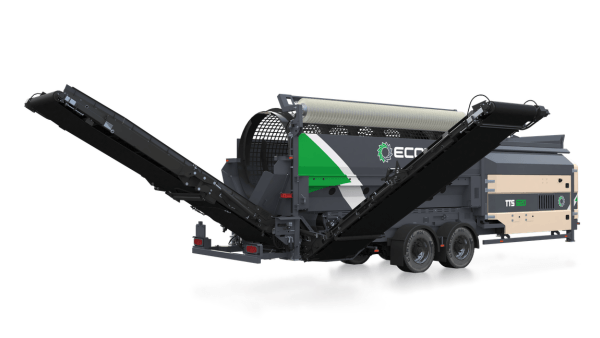

The TTS 620 is the ultimate in modern trommel design, offering operators unrivalled application flexibility, production rates and serviceability.
| Specification | Value |
|---|---|
| Engine | CAT C4.4 130HP Tier 3A CAT C4.4 97kW Tier 3A |
| Engine | CAT C4.4 110HP Tier 4 Final CAT C4.4 82kW Tier 4 Final |
| Drum Diameter | 6'7" 2,000m |
| Drum Length | 18'1" 5,500mm |
| Weight | 41,888lbs 19,000kg |

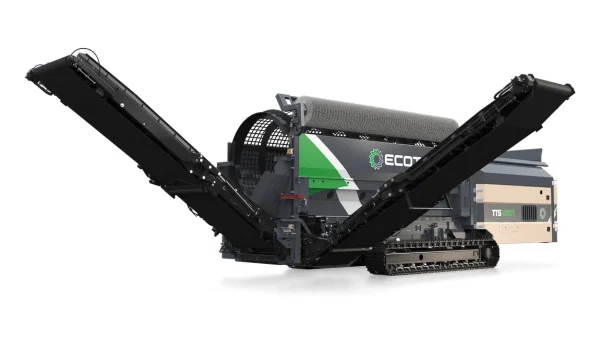

The TTS 620T features a highly efficient engine and hydraulic drive system combined with advanced material processing control system offer maximum production combined with minimum costs. It is ideally suited for screening compost, biomass, soil, gravel & waste.
| Specification | Value |
|---|---|
| Engine | CAT C4.4 130HP Tier 3A CAT C4.4 97kW Tier 3A |
| Engine | CAT C4.4 110HP Tier 4 Final CAT C4.4 82kW Tier 4 Final |
| Drum Diameter | 6'7" 2,000mm |
| Drum Length | 18'1" 5,500mm |
| Weight | 52,911lbs 24,000kg |

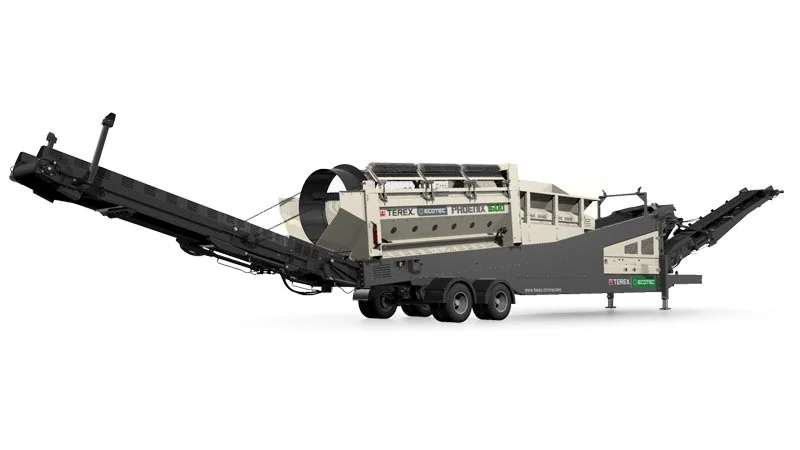

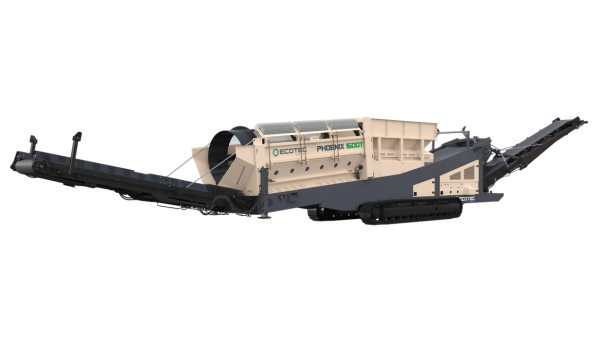

The Phoenix 1600 trommel screen has been innovatively designed to provide the ultimate screening solution whilst boasting excellent fuel efficiency and low operating costs.
| Specification | Value |
|---|---|
| Engine | CAT C4.4 130 HP Tier 3 CAT C4.4 97kW Tier 3 |
| Engine | CAT C4.4 110HP Tier 4 Final CAT C4.4 82kW Tier 4 Final |
| Drum Diameter | 5' 1,540mm |
| Drum Length | 16' 4,900mm |
| Weight | 39,700lbs 18,000kg |

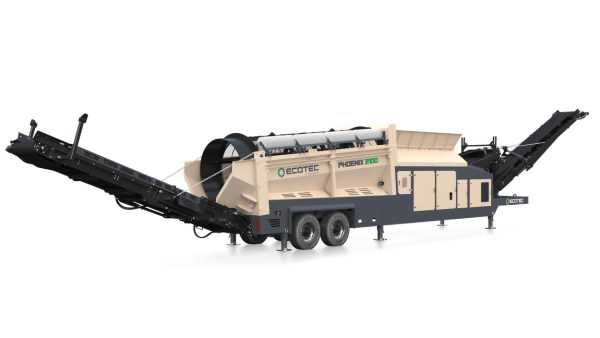

The Phoenix 2100 is the most versatile trommel on the market, designed to offer unrivalled production throughput and application flexibility.
| Specification | Value |
|---|---|
| Engine | CAT C7.1 202 HP Tier 3 CAT C7.1 151 kW Tier 3 |
| Engine | CAT C4.4 173 HP Tier 4 Final CAT C4.4 129kW Tier 4 Final |
| Drum Diameter | 6'4" 1,940mm |
| Drum Length | 21'2" 6,450mm |
| Weight | 60,627lbs 27,500kg |

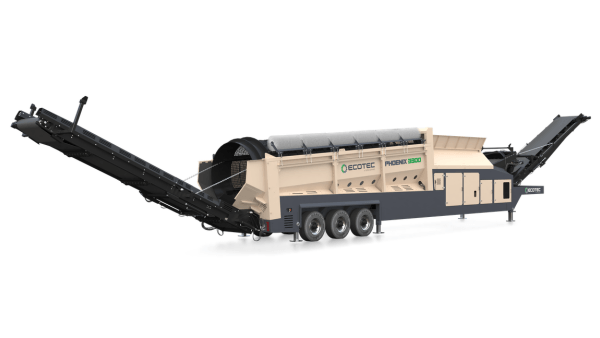

The Phoenix 3300 is the largest trommel screen available within the range, robustly designed it offers optional features such as a heavy duty tipping grid or double deck vibrating grid.
| Specification | Value |
|---|---|
| Engine | CAT C7.1 202HP Tier 3 CAT C7.1 151kW Tier 3 |
| Engine | CAT C4.4 173HP Tier 4 Final CAT C4.4 129kW Tier 4 Final |
| Drum Diameter | 7'7" 2,320mm |
| Drum Length | 30'7" 9,320mm |
| Weight | 82,673lbs 37,500kg |
