Trommel Screens

Our trommel screens are highly efficient in the separation and processing of wood chips, top soil, compost, light demolition waste, domestic waste and aggregates. Their rotating drums roll larger pieces of material to allow all fines to flow down and through the trommel screen plates.

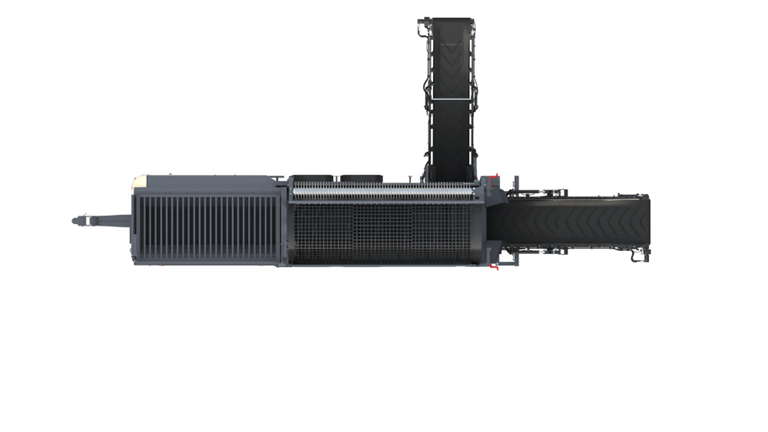

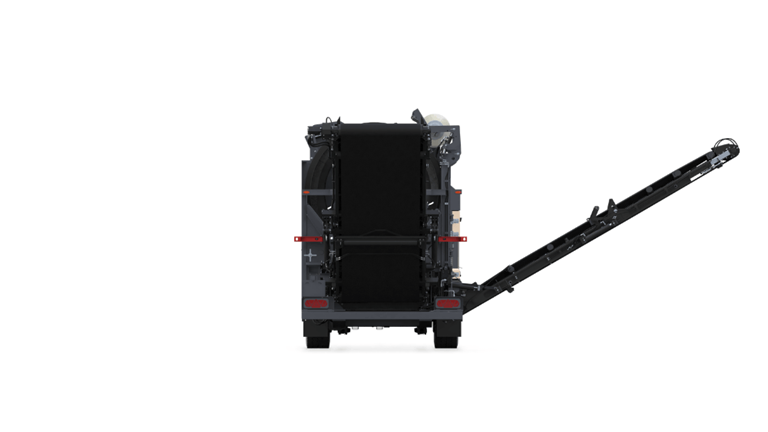

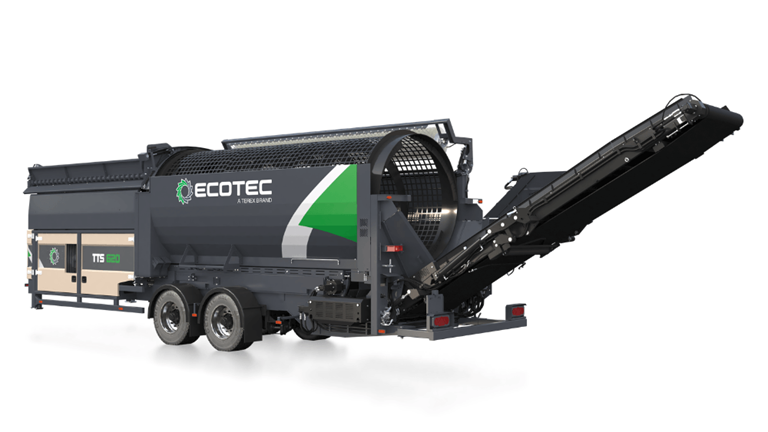

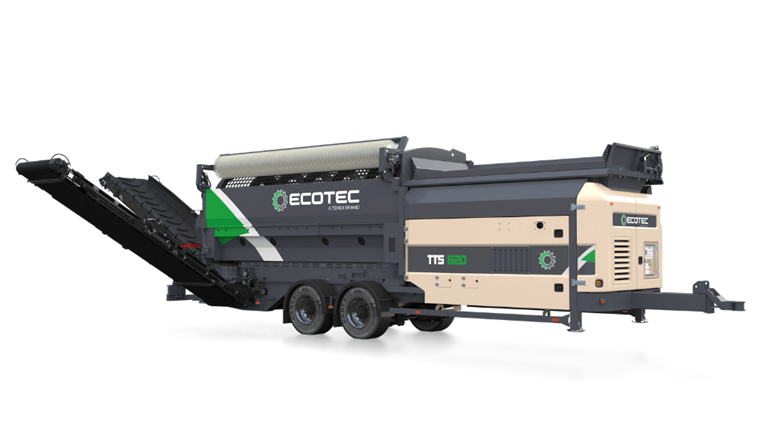

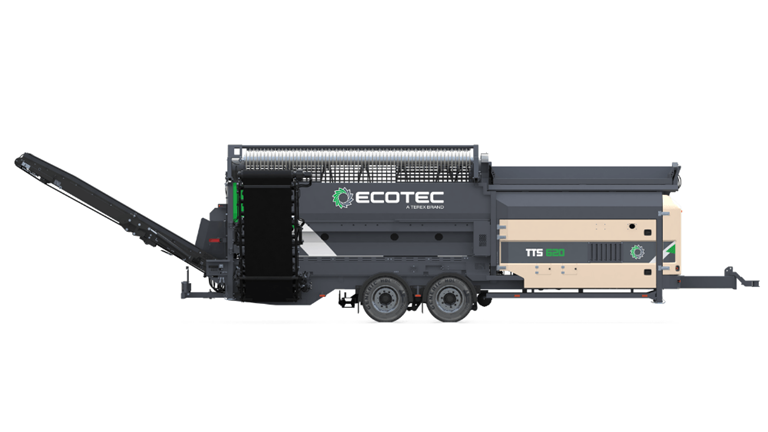

TTS 620

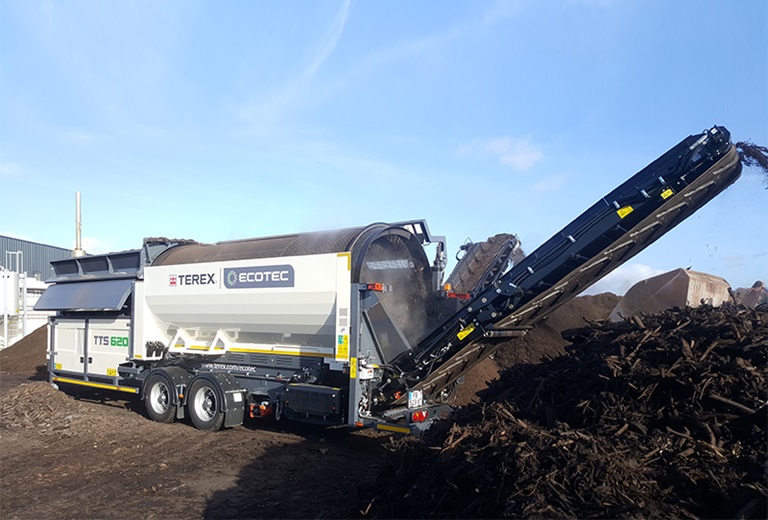

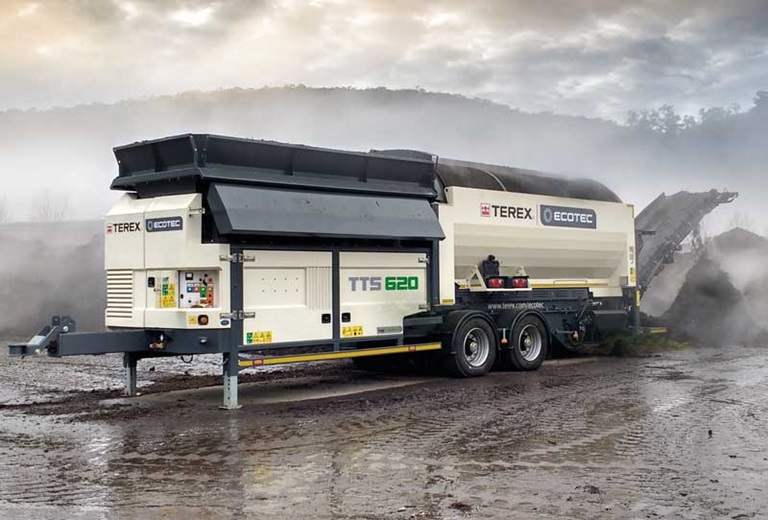

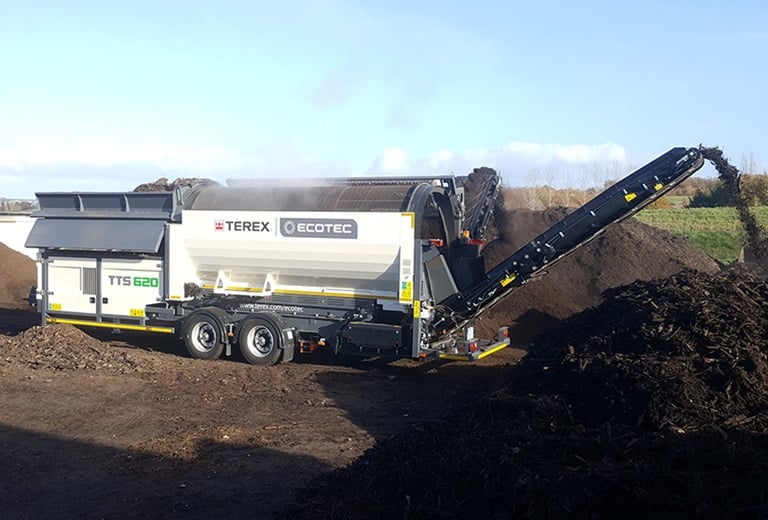

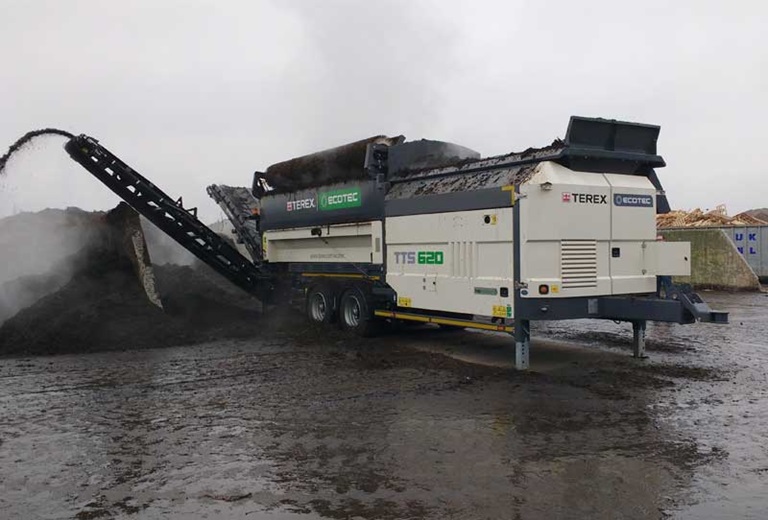

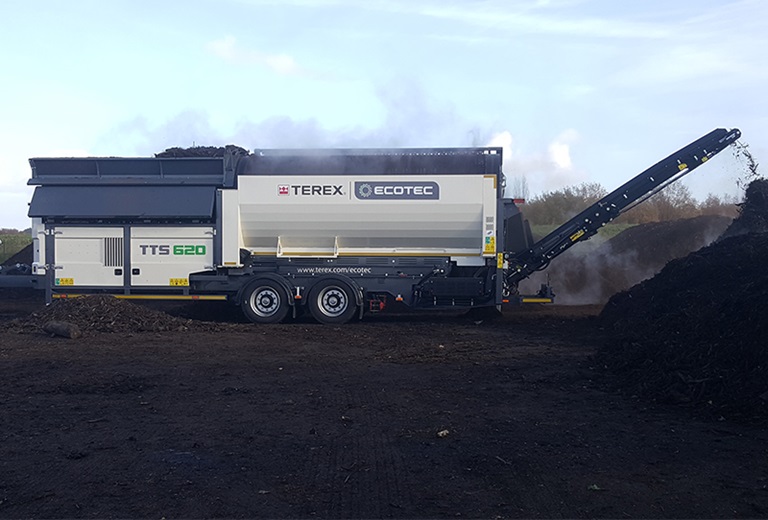

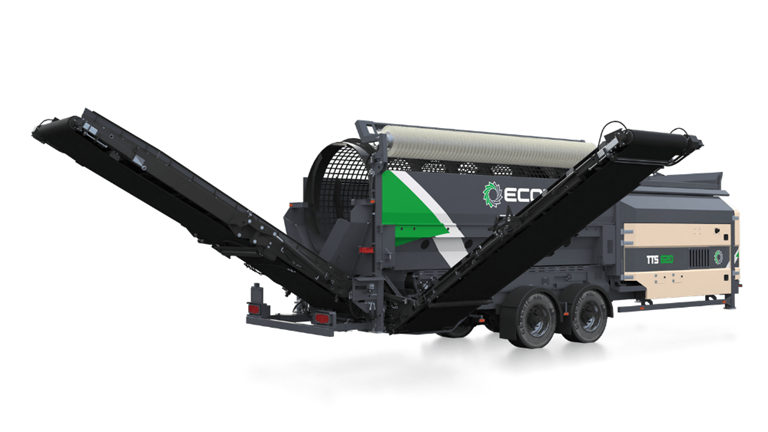

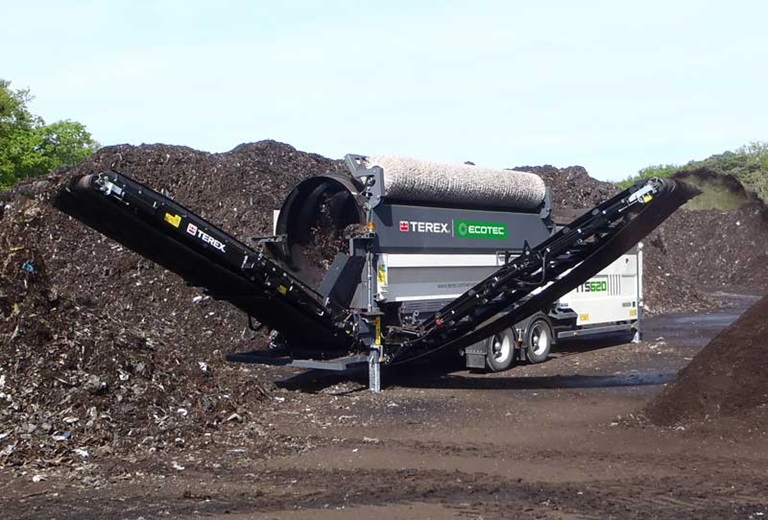

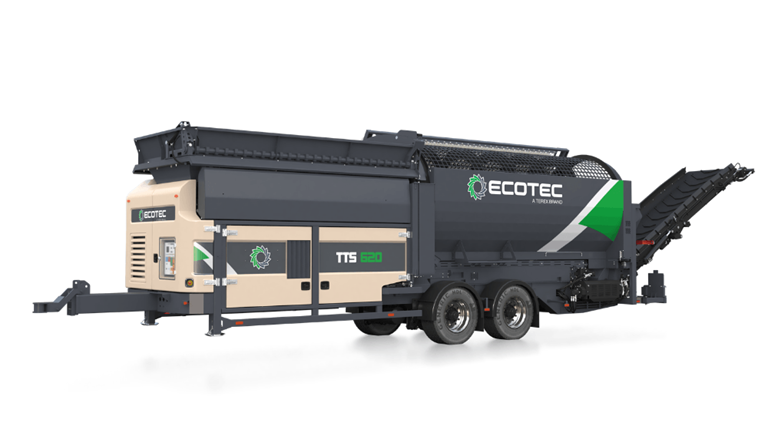

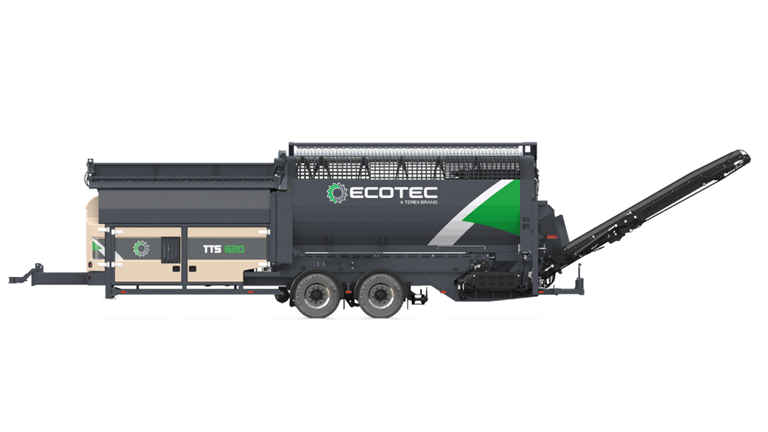

Ecotec's TTS 620 Mobile Trommel is the ultimate in modern trommel design, offering operators unrivalled application flexibility, production rates and serviceability. A highly efficient engine and hydraulic drive system combined with advanced material processing control system offer maximum production combined with minimum costs. This trommel screen is ideally suited for screening compost, biomass, soil, gravel and waste.

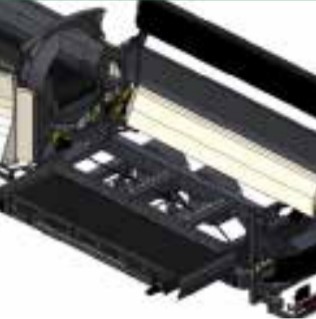

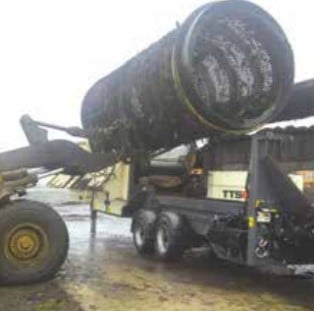

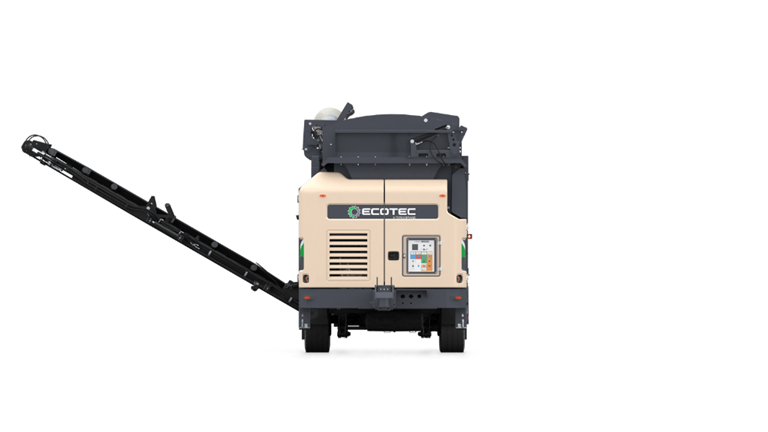

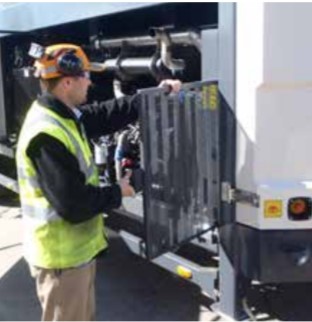

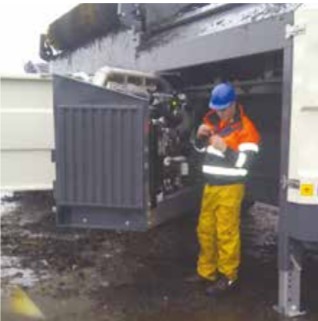

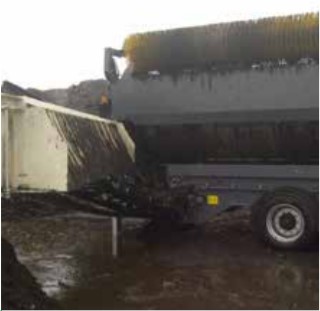

Unprecedented levels of service access catapults the TTS 620 into a league of its own. All conveyors are built to a modular design allowing each one to be removed independently for ease of maintenance. The swing out engine cradle gives operators unrestricted ground level access to all service components. Hinged doors on both sides of the trommel drum offers unobstructed access for maintenance and cleaning.

Technical Documentation

Measurements

Working Dimensions Length: 51’ | Width: 22’ 8” | Feed Height: 9’ 4” Length: 15.5 m | Width: 6.9 m | Feed Height: 2.85 m
Drum Diameter 6 ft 7 in 2 m
Transport Dimensions Length: 39’ 4” | Width: 8’ 2” | Height: 13’ 2” Length: 12.0 m | Width: 2.5 m | Height: 4.0 m
Drum Length 18 ft 1 in 5 m 50 cm
Weight 41,888 lbs 19,000 kg

Power

Engine Stage IIIA CAT C4.4 130 HP CAT C4.4 97 kW
Engine Stage V / Tier 4 Final CAT C2.2 74 HP CAT C2.2 55 kW
Engine Stage V / Tier 4 Final CAT C3.6 110 HP CAT C3.6 82 kW
