694 & 693 | Inclined Screens

693 Inclined Screen

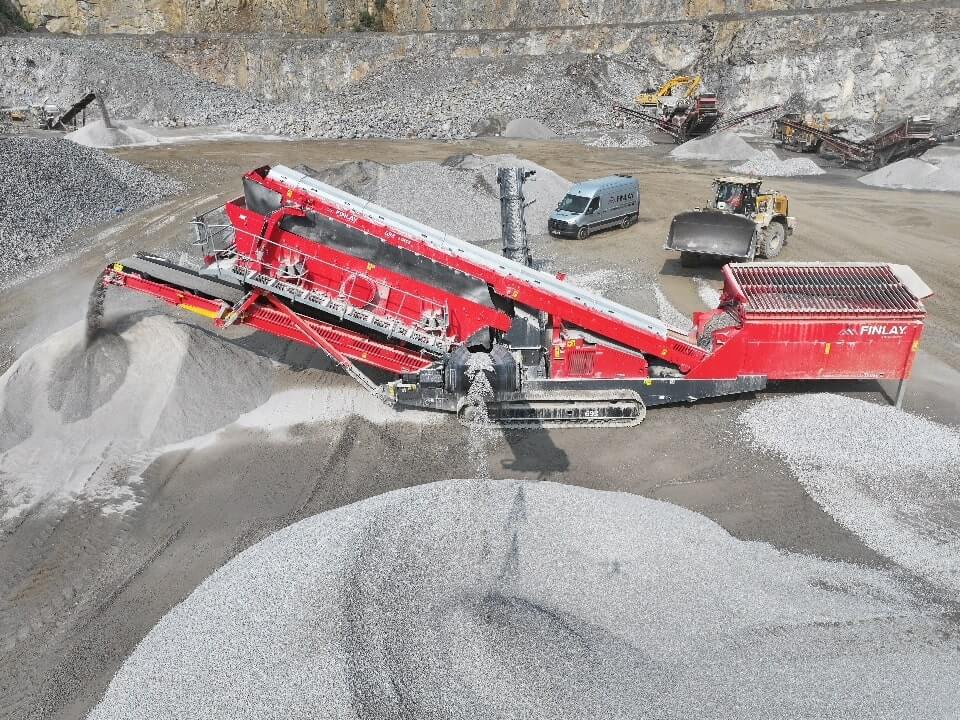

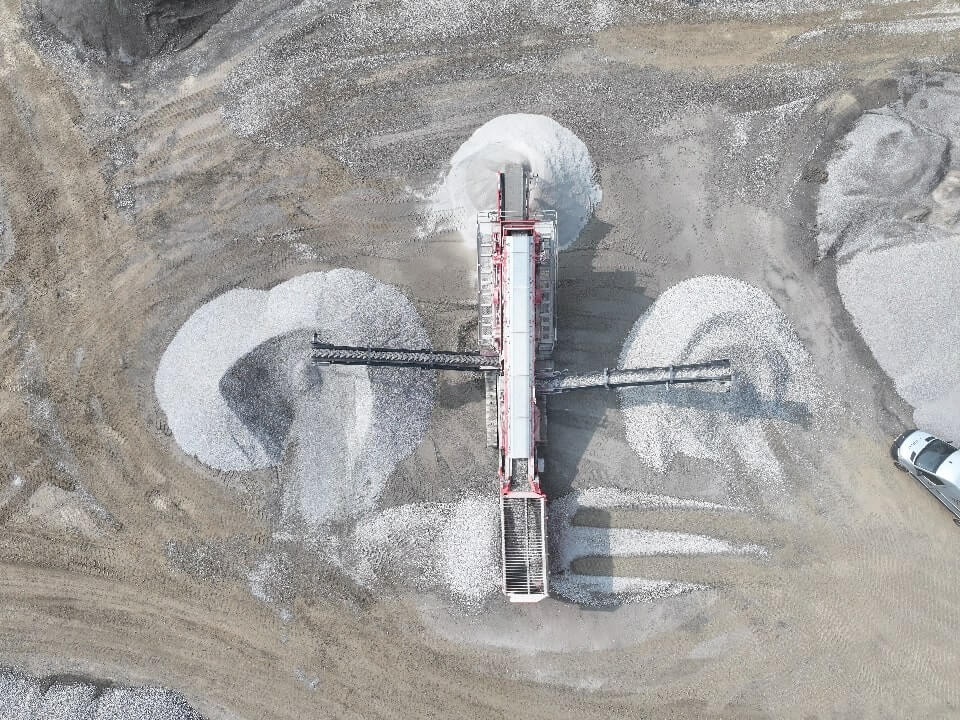

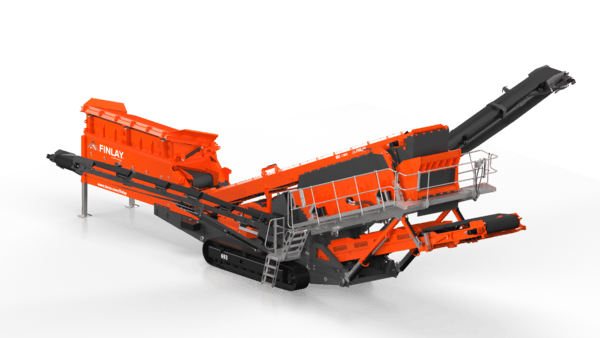

Developed to meet the demands of high-production operations, the Finlay® 693 Inclined Screen delivers exceptional screening performance across quarrying, mining, sand and gravel, coal, woodchip and topsoil applications.

Engineered with a powerful, high-energy screen box and optimised material flow design, the 693 excels in mobile screening environments—providing consistent material separation wherever it's needed. Its large hopper and variable-speed belt feeder ensure a steady flow of material, while multiple grid options offer flexibility to suit a wide range of site requirements.

Designed with efficiency, reliability and cost-effectiveness in mind, this latest model represents a key step in Finlay’s ongoing commitment to innovation and continuous product improvement.

694 Inclined Screen

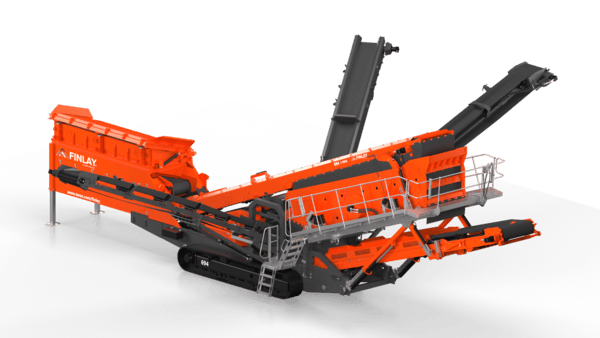

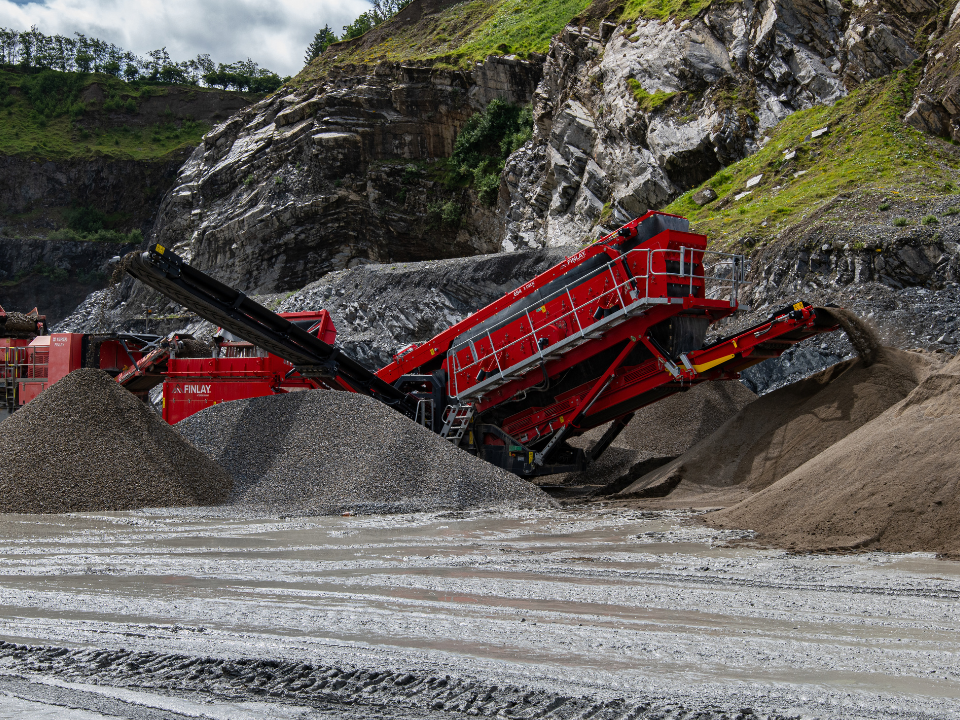

Purpose-built for high-production environments, the Finlay® 694 Inclined Screen is a powerful solution for producers working across quarrying, mining, sand and gravel, coal, woodchip and topsoil applications.

The new triple-deck screen box features two full-size 6.1m x 1.53m (20’ x 5’) decks and a 5.55m x 1.53m (18’ x 5’) bottom deck, delivering exceptional throughput and fine material processing. While capable of handling challenging feedstocks, the 694 is optimised for clean to moderately contaminated materials.

With a focus on efficiency, versatility and reduced operational costs, the 694 is available with a hybrid power system and an optional high-volume rinser screen box, making it one of the most adaptable machines in its class and ideal for mobile screening solutions.

Key Benefits of the Finlay 693 Inclined Screen

High-Energy Screen Box: Large 6.1m x 1.53m top deck and 5.55m x 1.53m bottom deck handle tough, sticky materials with ease.
Optimised Material Flow: Variable-speed belt feeder and optional grid configurations provide consistent and flexible operation.
Advanced Hydraulic System: Delivers reliable power with improved fuel efficiency for lower operating costs.
Hybrid Power Options: Run the machine via onboard engine or external power for added versatility on site.
Faster Setup & Easier Maintenance: Simplified conveyor folding and wide catwalks reduce setup time and improve access.
Adjustable Screen Box Angle: Hydraulic adjustment between 20° and 30° allows precise control over screening performance.
T-Link Telematics System: Comes as standard with a free 7-year data plan for remote machine monitoring and performance tracking.

Key Benefits of the Finlay 694 Inclined Screen

Triple-Deck High-Energy Screen Box: Two full-size 6.1m x 1.53m top and middle decks plus a 5.55m bottom deck for high-capacity screening of fine, sticky and dirty materials.
Optimised Material Flow: Large hopper with variable-speed belt feeder ensures consistent, controlled material feed.
Advanced Hydraulic System: Balances power and fuel efficiency, operating at lower engine speeds to reduce running costs.
Hybrid Power Options: Flexibility to run the plant using onboard engine or external power supply.
Optional High-Volume Rinser Screen Box: Adds rinsing capability for wet material processing, enhancing machine versatility.
Faster Setup & Easier Maintenance: Simplified folding mechanisms and wide manual catwalks improve onsite efficiency and accessibility.
Adjustable Screen Box Angle: Hydraulic adjustment between 20° and 30° for optimised screening performance.

Finlay 693 Inclined Screen Brochure Cover

Download 693 Brochure

Finlay 694 Inclined Screen Brochure Cover

Download 694 Brochure
